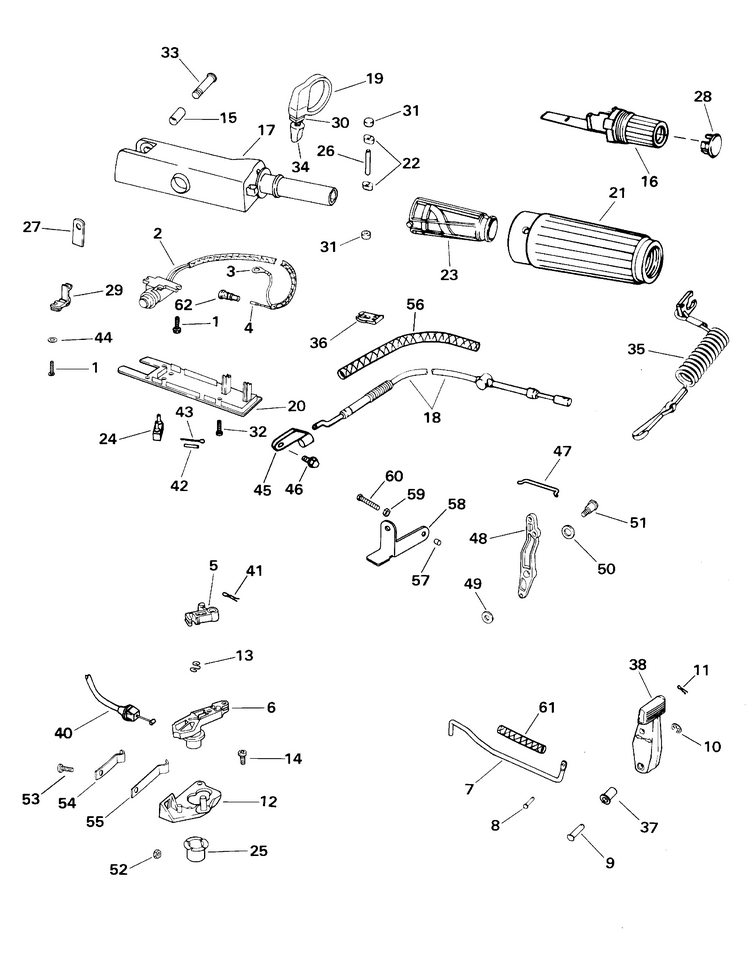

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 15
Product Description: Sleeve, Steering Handle Screw
Category: EVINRUDE / 2001 / 5 / E5R4SIE 4-stroke, rope start, tiller, 15 in shaft 2001 / STEERING HANDLE
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
| Key | Part No. | Product Name | Additional_info |
|---|---|---|---|
| 1 | 0328649 | Screw, bowl to body | |
| 2 | 0585104 | Stop switch | |
| 3 | 0510818 | Terminal, ring | |
| 4 | 0581656 | Terminal, socket | |
| 5 | 0336182 | Lever, starter lockout | |
| 6 | 0441328 | Lever, shift | |
| 7 | 0440194 | Link, shift handle to lever | |
| 8 | 0336154 | Pin, shift link | |
| 9 | 0439585 | Pin retainer assy., shift handle | |
| 10 | 0203470 | Retaining ring, pawl | |
| 11 | 0306376 | Cotter pin | |
| 12 | 0441112 | Plate, retaining | |
| 13 | 0441329 | Retainer, shift link | |
| 14 | 0441203 | Screw, retaining plate | |
| 15 | 0336537 | Sleeve, steering handle screw | |
| 16 | 0584302 | Adjustment, idle | |
| 17 | 0336156 | Steering arm | |
| 18 | 0440178 | Cable assy., throttle | |
| 19 | 0345064 | Collar, throttle friction | |
| 20 | 0336159 | Cover, steering arm | |
| 21 | 0436216 | Twist grip | |
| 22 | 0329879 | Guide | |
| 23 | 0339722 | Hélicoïdale, poignée tournante | |
| 24 | 0336445 | Holder, spare parts | |
| 25 | 0314002 | Bushing | |
| 26 | 0329880 | Goupille | |
| 27 | 0336220 | Plate, steering arm | |
| 28 | 0336347 | Plug | |
| 29 | 0336558 | Retainer, throttle cable | |
| 30 | 0315232 | Retainer , needle valve stbd | |
| 31 | 0329881 | Galet, hélice vers câble | |
| 32 | 0328649 | Screw, bowl to body | |
| 33 | 0335377 | Screw, steering handle | |
| 34 | 0434081 | Screw, throttle friction | |
| 35 | 0398602 | Lanyard assy. | |
| 36 | 0333499 | Clip, restart | |
| 37 | 0334135 | Bushing | |
| 38 | 0336111 | Handle, shift | |
| 40 | 0432927 | Cable assy., starter lockout | |
| 41 | 0305650 | Cotter pin | |
| 42 | 0324690 | Drive pin | |
| 43 | 0306394 | Cotter pin | |
| 44 | 0324956 | Washer | |
| 45 | 0334083 | Anchor, control cable | |
| 46 | 0329160 | Screw, anchor to bracket | |
| 47 | 0441126 | Link, lever to carburetor | |
| 48 | 0446164 | Throttle lever | |
| 49 | 0115199 | Washer, screw lever | |
| 50 | 0446168 | Washer, shift lever | |
| 51 | 0446167 | Screw, lever to bracket | |
| 52 | 0441217 | Nut, screw, detent spring | |
| 53 | 0115751 | Screw, charge coil | |
| 54 | 0441230 | Spring, detent | |
| 55 | 0441216 | Spring, retaining plate | |
| 56 | 0339691 | Sleeve, throttle cable lead wire | |
| 57 | 0446415 | Cap, screw | |
| 58 | 0441257 | Stop, throttle | |
| 59 | 0446115 | Nut, carburetor mounting | |
| 60 | 0446414 | Screw | |
| 61 | 0441265 | Sleeve, shift link | |
| 62 | 0513356 | Connector, 1 socket plug |
