EVINRUDE-JOHNSON 337068 GSKT THERM 5 PK C=3 PKG=5

Write a Review
$4.56
SKU:
337068-OMC
Schematic Object Key:
45

EVINRUDE-JOHNSON 337068 GSKT THERM 5 PK C=3 PKG=5

$4.56

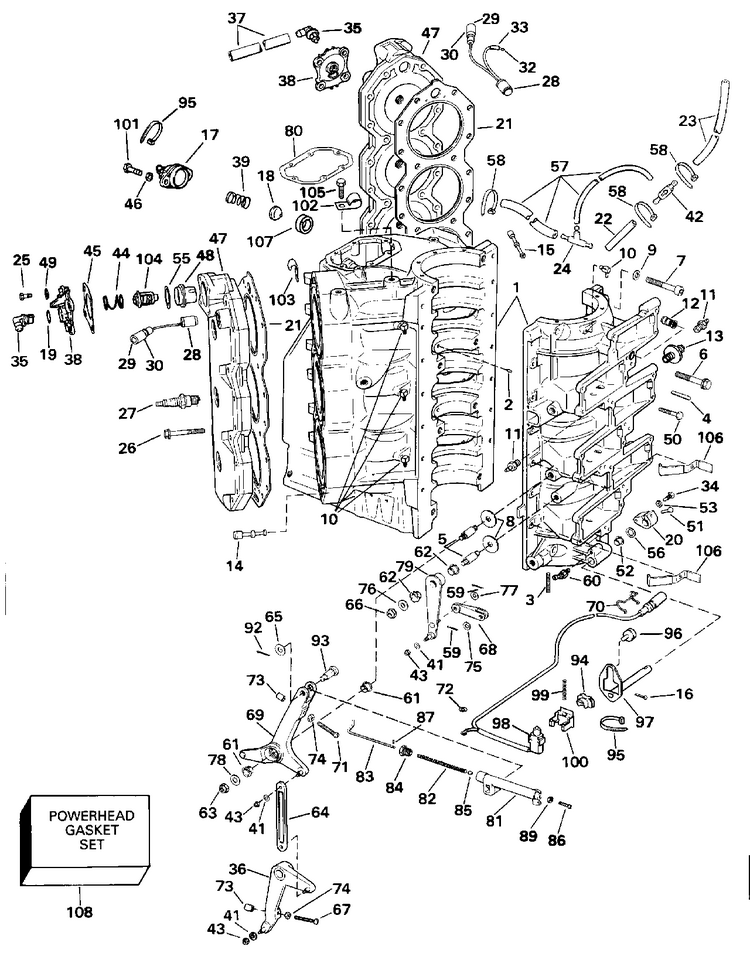

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 337068 Diaphragm, Thermostat Cover

Schematic Object Key : 45

Product Description: Diaphragm, Thermostat Cover

Category: EVINRUDE / 1993 / 225 / E225CXATS 1993 / CYLINDER & CRANKCASE

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 5000552 Cylinder c'case assy. This part replaces 0435098.
2 0304178 Pin, dowel
3 0314616 Stud
4 0331095 Pin, c c taper
5 0338653 Stud, shift throttle levers
6 0326891 Screw, cylinder to crankcase
7 0326890 Screw, cylinder to crankcase
8 0320744 Washer, stud
9 0322232 Washer
10 0321598 Crankcase fitting
11 0436194 Check valve assy.
12 0434900 Check valve assy.
13 0435009 Pulse limiter
14 0339538 Pin, water restrictor
15 0340521 Pin, water restrictor, port
16 0330145 Cotter pin
17 0337249 Cover, blow off valve
18 0344202 Valve, blow off This part replaces 0337069.
19 0202893 "o" ring, drive shaft
20 0335191 Lever, shift rod
21 0333670 Gasket, cylinder head This part replaces 0334726.
22 0772570 Flexible, évent vers silencieux d'admission d'air , 2 1 4" 57 mm This part replaces 0332219.
23 HOSE, Bearing hsg.
24 0325569 Tee, primer solenoid hoses
25 0328744 Screw, clamp 1 4 20 x .75
26 0339066 Screw, cylinder head
27 0502180 Spark plug, champion ql77jc4 This part replaces 0387633.
27 0432424 Spark plug , ql16v
28 0585038 Temperature switch, starboard This part replaces 0584650.
28 0585039 Temperature switch, port This part replaces 0584665.
29 0511469 Terminal, pin
30 0513357 Connector, 1 pin receptacle
32 0512947 Terminal, bullet
33 0513185 Sleeve
34 0327590 Pin, shift lever
35 0337487 Fitting, thermostat cover
36 0396374 Throttle lever, lower
37 HOSE, Thermostat cover to blowoff
38 0337486 Cover, thermostat
39 0336826 Spring, blow off valve
41 0328737 Washer
42 0434927 Check valve assy.
43 0328064 Nut
44 0337067 Spring, thermostat
45 0337068 Diaphragm, thermostat cover
46 0328703 Washer, screw hook
47 0435572 Cylinder head
47 0436892 Cylinder head This part replaces 0435044.
48 0337533 Sleeve
49 0328703 Washer, screw hook
50 0324334 Screw
51 0328695 Clamp, engine cable
52 0312708 Bushing
53 0302290 Washer
54 0331894 Elbow
55 0339044 Gasket
56 0202026 Washer, rod
57 HOSE, Drain system
58 0320107 Tie strap
59 0305650 Cotter pin
60 0319253 Fitting, c c lubrication
61 0308532 Bague, levier de verrouillage
62 0308532 Bague, levier de verrouillage
63 0315077 Locknut, 3 8 24 ss
64 0331224 Link, shift lever to shift arm
65 0330995 Washer, override spring
66 0315077 Locknut, 3 8 24 ss
67 0334219 Screw
68 0331737 Link, shift arm
69 0396714 Throttle lever, upper
70 0512741 Retainer, connector, 1 pin
71 0333976 Screw, actuator 1 4 20 x 2.5
72 0328701 Lockwasher, double ended bolt
73 0318660 Bumper, screw, throttle stop
74 0328741 Nut, input stud
75 0328702 Washer
76 0330266 Washer, trail lock lever
77 0328702 Washer
78 0330266 Washer, trail lock lever
79 0433481 Shift arm
80 0344472 Gasket, rect. reg. to cyl. block This part replaces 0330412.
81 0396667 Link assy., spark advance
82 0326738 Spring, link
83 0331863 Rod, spark advance link
84 0331864 Cap, spring housing
85 0328635 Bushing, spring
86 0331879 Screw
87 0329770 Pin, rod
89 0328712 Écrou, montage instrument
92 0330145 Cotter pin
93 0328636 Pin, advance link
94 0513811 Bracket, neutral switch slider
95 0320107 Tie strap
96 0331404 Axe, interrupteur de démarrage au point mort
97 0431908 Lever, neutral switch
98 0586294 Switch cable This part replaces 0584754.
99 0333749 Ressort, interrupteur de démarrage au point mort
100 0513134 Bracket, neutral switch
101 0328744 Screw, clamp 1 4 20 x .75
102 0310928 Clamp, steering bracket
103 0330157 Clamp
105 0319590 Screw, plate 3 8 16 x .75
106 0334169 Clamp, hose, control valve
107 0335981 Seal, t stat cylinder head to c c
108 0432687 Powerhead gasket set
