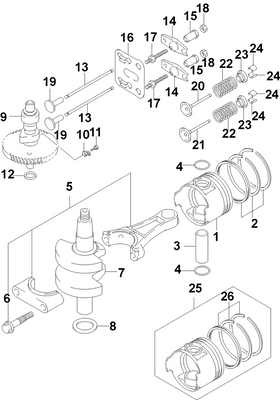

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 4
Product Description: Valve, Intake
Category: EVINRUDE / 2000 / 10 / E10RV4SSS 4-Stroke, Rope Start, Tiller, 15 IN shaft, wht 2000 / CYLINDER HEAD & CRANKSHAFT
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
| Key | Part No. | Product Name | Additional_info |
|---|---|---|---|
| 1 | 0437776 | Piston ring, standard | |
| 1 | 0437777 | Piston ring, 0.030 in. o.s. | |
| 2 | 0436289 | Ring set, standard | |
| 2 | 0436290 | Ring set, 0.030 o.s. | |
| 3 | 0337213 | Retaining ring | |
| 4 | 0337242 | Valve, intake | |
| 5 | 0331249 | Washer, handle | |
| 6 | 0337200 | Wrist pin | |
| 7 | 0434837 | Connecting rod assy. | |
| 8 | 0345838 | Washer | |
| 9 | 0337220 | Screw, rod cap | |
| 10 | 0340168 | Tab, locking | |
| 11 | 0337235 | Seal, crankshaft, lower | |
| 12 | 0337237 | Seal, valve | |
| 13 | 0338324 | Shaft, camshaft to oil pump | |
| 14 | 0438264 | Arm assy., rocker | |
| 15 | 0437022 | Bearing assy., main | |
| 16 | 0339320 | Belt, drive | |
| 17 | 0435284 | Camshaft assy. | |
| 18 | 0338325 | Pin, roll | |
| 19 | 0338166 | Cover, oil pump | |
| 20 | 0340531 | Cup, spring to rocker arm | |
| 21 | 0337233 | Screw, cylinder valve adjustment | |
| 22 | 0338167 | Gasket, oil pump to cylinder head | |
| 23 | 0321831 | Seal, upper | |
| 24 | 0437122 | Bracket stud assy., belt cover | |
| 25 | 0337238 | Seat, valve spring | |
| 26 | 0341259 | Cover, drive belt | |
| 27 | 0339209 | Spring, shaft, rocker arm to cyl. hd. | |
| 28 | 0343232 | Housing, oil pump | |
| 29 | 0337229 | Keeper, valve | |
| 30 | 0307480 | Key | |
| 31 | 0337214 | Nut, pulley to crankshaft | |
| 32 | 0337197 | Pulley, cam | |
| 33 | 0434831 | Pump assy., oil | |
| 34 | 0321921 | "o"ring,gearcase head | |
| 35 | 0307480 | Key | |
| 36 | 0337226 | Nut, adjustment screw, rocker arm | |
| 37 | 0346353 | Pulley assy., belt drive, crkshft. | |
| 38 | 0337392 | Screw, stator to crankcase | |
| 39 | 0337230 | Retainer, valve spring | |
| 40 | 0339019 | Screw, front, lower cover, m6x40 | |
| 41 | 0337184 | Crankshaft | |
| 42 | 0338512 | Sleeve | |
| 43 | 0909632 | O ring, sleeve | |
| 44 | 0337236 | Seal, crankshaft, upper | |
| 45 | 0337241 | Valve, exhaust | |
| 46 | 0341237 | Nut, hook to bracket | |
| 47 | 0337240 | Spring, valve | |
| 48 | 0337216 | Shaft, rocker arm | |
| 49 | 0337210 | Spring, shaft, rocker arm | |
| 50 | 0329241 | Washer | |
| 51 | 0341261 | Screw, belt cover to lift bracket | |
| 52 | 0328739 | Rondelle entre ancrage et support | |
| 53 | 0338338 | Guide, belt, lower | |
| 54 | 0338337 | Guide, belt, upper | |
| 55 | 0338317 | Screw, lower belt guide | |
| 56 | 0437992 | Cylinder head bare | |
| 57 | 0911295 | Pin, intake to cylinder head | |
| 58 | 0337186 | Guide, valve |
