EVINRUDE-JOHNSON 338326 Adapter, Oil Filter

Write a Review
$4.00
SKU:
338326

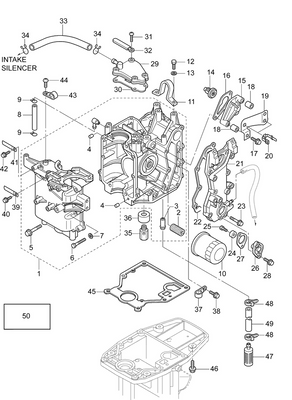

Schematic Object Key:
20

EVINRUDE-JOHNSON 338326 Adapter, Oil Filter

$4.00

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 338326 Adapter, Oil Filter

Schematic Object Key : 20

Product Description: Adapter, Oil Filter

Category: JOHNSON / 1997 / 15 / J15FRLEUA 1997 / CYLINDER & CRANKCASE

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0436058 Cylinder crankcase assy.
2 0340464 Plug, oil
3 0332406 Pin, exhaust housing
4 0337243 Screw, cylinder to crankcase
5 0337228 Pin, dowel
6 0337207 Cover, thermostat
7 0332434 Bushing, cylinder to bracket
8 0434875 Shaft lever, shift
9 0338161 Screw
10 5005440 Thermostat This part replaces 0434841.
11 0337191 Gasket, cylinder head
12 0337192 Seal, cover
13 0340170 Spring, backup, shift detent
14 0330913 Spring, shift detent
15 0584918 Spark plug, champion ra8hc
16 0445037 Pressure switch
17 0328703 Washer, screw hook
18 0343012 Screw, detent spring
19 0343420 Screw, shift lever to shift shaft
20 0338326 Adapter, oil filter
21 0338315 Bearing, thrust, crankshaft
22 0338906 Gasket, oil pressure regulator to cyl. block
23 0435690 Housing ay., oil pressure regulator
24 0338161 Screw
25 0337435 Lift bracket
26 0307551 Screw
27 0311598 Seal
28 0337244 Screw, regulator
29 0326712 Fitting, water inlet
30 0339505 Hose, thermostat to exhaust hsg.
31 0438614 Cover assy., cylinder head
32 0337147 Screw, retainer to trunnion
33 0434835 Dipstick, oil
34 0337392 Screw, stator to crankcase
35 0343267 Screw, cylinder head, port
36 0434839 Oil filter
37 0337194 Gasket, thermostat cover
38 0339274 Seal, adapter to cylinder head
39 0911718 O ring, nipple
40 0337208 Plug, oil fill
41 0343268 Screw, cylinder head, stbd.
42 0337392 Screw, stator to crankcase
43 HOSE, Cyl. head cover to air horn, 15 1/2 in (394mm)
44 0437991 Intake manifold
45 0337418 Stud
46 0318932 Gasket, insulator carburetor
46 0342982 Gasket, carb. to manifold
47 0342899 Insulator, intake to carburetor
48 0327227 Cap, nipple
49 0338073 Nipple
50 0338682 O ring, intake manifold
51 0339313 Adapter, exhaust hsg. to cyl. head
52 0339397 Grommet, adapter
53 0337244 Screw, regulator
54 0337458 Throttle cam
55 0338630 Clip, link
56 0329332 Screw, anchor
57 0338328 Retainer, control cables
58 0337147 Screw, retainer to trunnion
59 0328703 Washer, screw hook
60 0334119 Connector
61 0337427 Link, shift lever
62 0345922 Screw, clamp to manifold This part replaces 0342869.
63 0330157 Clamp
64 0341196 Cap, exhaust probe
65 3852427 Clamp, fuel line to bracket This part replaces 0907852.
66 0341193 Plug, cylinder head
67 0338562 Screw, clamp, lower cover
68 0341382 Sleeve, exhaust probe
69 0437084 Tube assy., exhaust probe
70 0329241 Washer
71 0320107 Tie strap
72 0585184 Interrupteur thermostatique, tribord
73 0329562 Cache, interrupteur
74 0511469 Terminal, pin
75 0513357 Connector, 1 pin receptacle
76 0330151 Cable clamp, filter
77 0338161 Screw
78 0310058 Gasket, thermostat
79 0341722 Hose, overboard indicator
80 0437802 Shaft, shift
81 0127386 Rondelle This part replaces 0303913.
82 0553766 Bow washer
83 0439139 Powerhead gasket set
