EVINRUDE-JOHNSON 338563 Tilt Lock, Starboard

Write a Review
$36.49
SKU:
338563
Schematic Object Key:
6

EVINRUDE-JOHNSON 338563 Tilt Lock, Starboard

$36.49

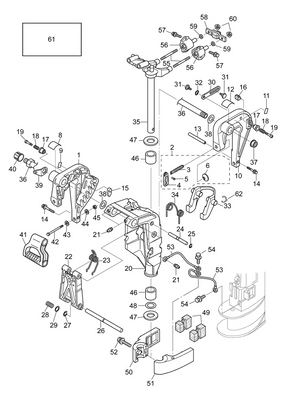

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 338563 Tilt Lock, Starboard

Schematic Object Key : 6

Replacement: This part (338563) replaces 0319134.

Product Description: Tilt Lock, Starboard

Category: EVINRUDE / 1991 / 15 / E15EEIA 1991 / MIDSECTION (10SEL ONLY)

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0304278 Washer
2 0319227 Screw, knob
3 0319047 Pin, tilt lock to stern bracket
4 0328048 Knob, tilt reverse lock lever
5 0386163 Lever shaft assy,.lock
6 0338563 Tilt lock, starboard This part replaces 0319134.
7 0315776 Rondelle
8 0309738 Plate stern bracket
9 0300364 Link, conical, tilt shaft
10 0319756 Bolt, tilting shaft
11 0302051 Spring tilting bolt
12 0301917 O ring
13 0329102 Swivel bracket
14 0320428 Spring, reverse lock rod
15 0309967 Bushing, pilot shaft, lower
16 0335332 Pivot shaft
17 0319279 Spring, reverse lock
18 0320427 Spring, shallow water drive
19 0434151 Steering bracket
20 0313607 Lube fitting
21 0320416 Wire, reverse lock release
22 0338874 Carrying handle This part replaces 0331096.
23 0319046 Bushing, tilt lock shaft to sw. brkt.
24 0319049 Bell crank, reverse lock
25 0304380 , bow
26 0326943 Pin, link to lock lever
27 0313607 Lube fitting
28 0319270 Spring, tilt lock bushing
29 0432453 Knob tilt pin assy.
30 0308684 Screw, cover to housing
31 0319108 Screw belcrank
32 0315077 Locknut, 3 8 24 ss This part replaces 0325451.
33 0301983 Conicak washer,stern brkt
34 0308052 Washer
35 0309966 Thrust washer, lower swivel bracket
36 0310540 .washer, shaft
37 0338657 Link, shallow water drive This part replaces 0320426.
38 0317624 Screw, driveshaft hsg
39 0319601 . nut, switch
40 0319124 Shift rod, upper
41 0313022 Locknut, double ended bolt
42 0310540 .washer, shaft
43 0305650 Cotter pin
44 0398001 Handle rivet
45 0327928 Stern bracket, port
46 0433675 Clamp scr. hand. assy.
46 0391421 Clamp screw handle
47 0321922 Screw, shoulder
48 0337017 Plate, swivel This part replaces 0307561.
49 0327929 Stern brkt., stbd.
51 0318989 Seal, upper mounts exh. hsg.
52 0397736 Block assy., friction
53 0332662 Block, friction, swivel bracket
54 0332663 Liner
56 0582959 Cable starter switch
57 0510780 8 ring termianl
58 0511532 Tubing, starter switch
59 0395699 Starter switch
60 0334951 Boot, switch
61 0512682 Cale verrouillage, 3 broches
62 0204053 Borne, anneau 0,312" 7,9 mm diamètre
63 0204039 10 ring terminal
64 0306799 L'washer,bracket to hsg.
65 0306932 Nut
66 0309335 Washer
67 0333440 Clamp, battery cable
68 0328724 Screw This part replaces 0308738.
69 0319537 Clip
70 0320790 Bellcrank, shift rod
71 0305650 Cotter pin
72 0302504 Pin, connector, shift rod
73 0319563 Scerw, lever to shaft
74 0311407 Lockwasher, lever to shaft
75 0318950 Bushing, shift lever to motor cover, inner
76 0318951 Bushing, shift lever to c'case
77 0392878 Shift lever bracket to hsg.
78 0320931 Lever, shaft lever to shift lock link.
79 0308017 Screw, bellcrank to shift lever
80 0586030 Ground wire, steering bracket This part replaces 0584060.
81 0393204 Lever link assy.
82 0330062 Spacer, auxilary motor bracket
84 0317000 Cable, starter cable This part replaces 0320687.
85 0313035 Screw
86 0551113 Ressort de friction de direction
0432294 0432294 Screw nut assembly
87 0363013 Screw This part replaces 0334427.
88 0327969 Écrou de blocage
89 0319055 Pin, link to bracket
90 0328701 Lockwasher, double ended bolt
91 0306486 Washer, screw, negative
92 0302860 Screw. starter motor
