EVINRUDE-JOHNSON 338717 Shim, 0.003 In. (0,07Mm)

Write a Review
$11.49
SKU:
338717
Schematic Object Key:
56

EVINRUDE-JOHNSON 338717 Shim, 0.003 In. (0,07Mm)

$11.49

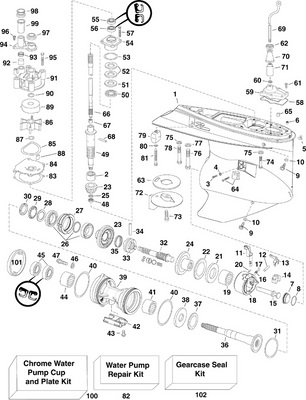

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 338717 Shim, 0.003 In. (0,07Mm)

Schematic Object Key : 56

Product Description: Shim, 0.003 In. (0,07Mm)

Category: JOHNSON / 1996 / 130 / HJ130TXADA 1996 / GEARCASE - 130CX COUNTER ROTATION

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
0438044 0438044 Gearcase assy., complete
1 5007022 Gearcase bearing assembly This part replaces 0438048.
2 0387817 Bearing, pinion
3 0338778 Retaining ring
4 0337778 Screen
5 0337061 Screw, water intake screens
6 0439476 Bearing housing seal This part replaces 0437215.
7 0341280 Seal
8 0338504 Retainer, driveshaft
9 0317624 Screw, driveshaft hsg
10 0431693 Bearing hsg assy, rev gear
10B 0331880 Pin, housing to gearcase
11 0916189 Detent, shift This part replaces 0334142.
12 0911962 Spring
13 0334163 Cradle, shifter
14 0334160 Lever, shift
15 0334143 Shaft, shift
16 0319627 Pin, shift lever
17 0354731 O ring This part replaces 0314728.
18 0435023 Propeller shaft
19 0382408 Thrust bearing
20 0385043 Thrust bearing assy.
21 0438251 Clutch shaft assy
22 0333957 Languette, de retenue
23 0352165 Gasket, shift rod cover This part replaces 0324670.
24 5000898 Bearing housing seal assy. This part replaces 0438038.
25 0431926 Needle bearing assembly, front
26 0436752 Bearing, propshaft
27 0341281 Seal
28 0350271 Screw This part replaces 0341541.
29 0305123 O ring
30 0313447 Thrust washer
31 0314730 Nut, pinion to driveshaft
32 0431702 Reverse gear
33 0387656 Butée, arbre d'entraînement
34 0327656 Rondelle de butée, arbre d'entraînement
35 0908158 Screw, anode
37 0328743 Rondelle
38 0337774 Shifter, clutch dog
39 0313448 Pin, clutch dog
40 0324369 Spring, clutch dog pin
41 0318544 Screw, fill drain
42 0311598 Seal
43 0323362 Cale, 0,003" 0,07 mm
43 0323361 Cale, 0,004" 0,10 mm
43 0314745 Cale, 0,005" 0,12 mm
44 0327669 Thrust washer, forward gear
45 5006241 Couvercle joint, tige de commande de sens de marche This part replaces 0435482.
46 0318372 "o" ring, shift rod
47 0328702 Washer
48 0302325 Screw, impeller housing
49 0160084 Ball
50 0431708 Anode, bearing housing
51 0345905 Driveshaft, lower This part replaces 0335677.
52 0311538 Roll pin, driveshaft
53 0435933 Gearset assy.
54 0338716 Set screw
55 0333885 Housing, bearing
56 0338717 Shim, 0.003 in. 0,07mm
56 0338718 Shim, 0.004 in. 0,10mm
56 0338719 Shim, 0.005 in. 0,12mm
57 0385043 Thrust bearing assy.
58 0389039 Bearing, forward gear
59 0435932 Gear set, forward pinion
60 0337796 Thrust flange
61 0321122 Spacer, shift rod
62 0329865 Shift rod
63 5007672 Driveshaft assembly, upper This part replaces 0435766.
64 5008966 Nut keeper, propeller This part replaces 0398042.
65 0360347 Housing, impeller This part replaces 0435959.
66 0331188 O ring
67 0302325 Screw, impeller housing
68 0306394 Cotter pin
69 0330265 Washer
70 0331998 Screw, gearcase to housing
71 0321008 Grommet, exh hsg to shift rod
72 0331999 Screw, gearcase housing
73 0331353 Seal, impeller housing plate.
74 5001593 Impeller assembly This part replaces 0435821.
75 0331107 Clavette, turbine
76 0302035 "o" ring, spacer to imp. hsg.
77 0330266 Washer, trail lock lever
78 0126870 Bague, de butée
79 0338484 Gasket, imp. hsg. plate
80 0330263 Screw, upper mount retention
81 0392160 Anode kit
82 0436745 Anode
83 0328096 Screw
84 0338486 Coupelle, turbine inox
84 0338551 Coupelle, turbine chrome
85 0320570 Spacer, nut
86 0306643 Screw
87 0314008 Bague, tube à eau vers capot
88 0338893 Capot, carter de turbine
89 0338743 Trim tab
90 0320943 Bague, pompe vers carter d'échap.
91 0313715 Screw, cap, hex hd, 7 16 14 x 1
92 0338485 Plate, impeller
92 0338552 Plate, impeller
93 0338601 Grommet, sleeve to exh hsg
94 0354580 Sleeve, extension This part replaces 0338636.
95 PROPELLER
96 0313926 Propeller hub sleeve
97 0175401 Bushing assy, prop, sst
98 5006373 Gearcase seal kit This part replaces 0437753.
99 5001595 Water pump repair kit This part replaces 0435929.
100 0435526 Chrome cup plate kit
