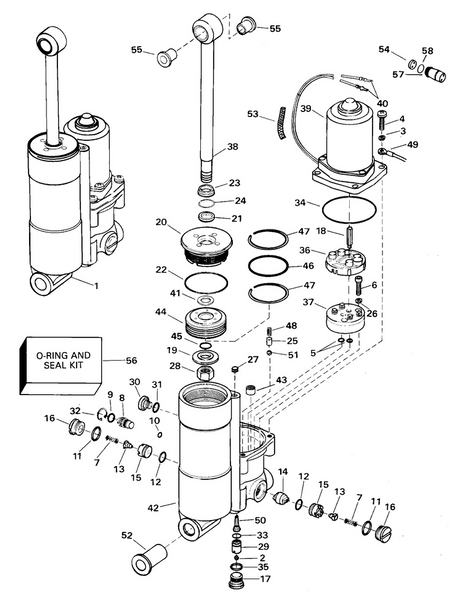

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 10
Product Description: O-Ring, Release Valve | Contents Of O-Ring & Seal Kit .
Category: JOHNSON / 2000 / 40 / J40RSSM Rope Start, Tiller, 15 IN. shaft 2000 / POWER TRIM & TILT
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
1 | 0438135 | Hycraulic lift assy. | |
2 | 0160084 | Ball | |
3 | 0302290 | Washer | |
4 | 0320780 | Screw, motor reservoir | |
5 | 0911522 | O ring, oil pump to manifold contents of o ring seal kit . | |
6 | 0321942 | Screw, oil pump to manifold, short | |
6 | 0335646 | Screw, oil pump to manifold, long | |
7 | 0333496 | Spring, housing to poppet | |
8 | 0436606 | Valve hsg. ay., manuel release | |
9 | 0335143 | O ring, piston contents of o ring seal kit . | |
10 | 0339849 | O ring, release valve contents of o ring seal kit . | |
11 | 0335132 | O ring, manifold to housing contents of o ring seal kit . | |
12 | 0335133 | O ring, valve seat contents of o ring seal kit . | |
13 | 0335134 | Poppet, check valve | |
14 | 0335136 | Spool, shuttle | |
15 | 0335137 | Seat, poppet valve | |
16 | 0335138 | Plug, retainer | |
17 | 0335140 | Plug, retainer | |
18 | 0335141 | Drive coupling | |
19 | 0335142 | Washer, piston to tilt rod | |
20 | 0435566 | Cap assy. | |
21 | 0335148 | Seal, tilt rod contents of o ring seal kit . | |
22 | 0335149 | O ring, end cap contents of o ring seal kit . | |
23 | 0335154 | Wiper contents of o ring seal kit . | |
24 | 0335155 | Ring, backup contents of o ring seal kit . | |
25 | 0335156 | Guide, ball | |
26 | 0360252 | Washer | This part replaces 0306311. |
27 | 0335130 | Plug, manifold | |
28 | 0335159 | Nut, tilt rod | |
29 | 0335171 | Valve seat | |
30 | 0335657 | Fill plug | |
31 | 0335658 | O ring, fill plug contents of o ring seal kit . | |
32 | 0914069 | Retaining ring, manual release | |
33 | 0335660 | O ring, valve seat contents of o ring seal kit . | |
34 | 0335661 | Seal, manifold contents of o ring seal kit . | |
35 | 0335129 | O ring, manifold to housing contents of o ring seal kit . | |
36 | 0335663 | Filter, oil pump | |
37 | 0389836 | Oil pump assy. | |
38 | 0433225 | Rod eye assy. | |
39 | 0437801 | Motor cable assy. | |
40 | 0513667 | Terminal | |
41 | 0335152 | Washer, piston | |
42 | 0438135 | Hycraulic lift assy. | This part replaces 0435899. |
43 | 0340174 | Filter, manual relief | |
44 | 0433814 | Piston assy. | |
45 | 0335143 | O ring, piston contents of o ring seal kit . | |
46 | 0335145 | Ring, quad contents of o ring seal kit . | |
47 | 0335144 | Ring, backup contents of o ring seal kit . | |
48 | 0335153 | Spring, relief valve | |
49 | 0582499 | Lead, bonding | |
50 | 0335131 | Filter, reservoir | |
51 | 0912298 | Ball, relief valve | |
52 | 0332434 | Bushing, cylinder to bracket | |
53 | 0512259 | Sleeve, motor cable sending unit | |
54 | 0513665 | Plug | |
55 | 0332436 | Bushing, cylinder to bracket | |
56 | 0435567 | O ring seal kit | |
57 | 0513664 | Connector | |
58 | 0911729 | O ring |
