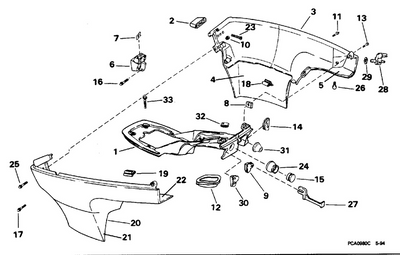

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 4
Product Description: Sound Blanket, Lower, Rear, Port
Category: EVINRUDE / 1996 / 15 / SE15BAEDC 1996 / LOWER ENGINE COVER
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
| Key | Part No. | Product Name | Additional_info |
|---|---|---|---|
| 1 | 0338210 | Bracket, panel | |
| 2 | 0341199 | Bumper, cover | |
| 3 | 0436362 | Engine cover, lower, port | |
| 4 | 0339997 | Sound blanket, lower, rear, port | |
| 5 | 0339999 | Sound blanket, front, port | |
| 6 | 0435818 | Latch, upper to lower cover | |
| 7 | 0335966 | Spring, lower cover | |
| 8 | 0308824 | Nut | |
| 9 | 0338213 | Grommet, choke knob | |
| 10 | 0328712 | Ecrou, montage instrument | |
| 11 | 0340071 | Screw, cover to bracket | |
| 12 | 0338242 | Grommet, shift rod, bottom | |
| 13 | 0340071 | Screw, cover to bracket | |
| 14 | 0338288 | Grommet, battery instrument cable | |
| 14 | 0338212 | Grommet, battery cable | |
| 14 | 0338246 | Grommet, battery cable plug | |
| 15 | 0338287 | Grommet, key switch hole | |
| 16 | 0330838 | Screw, baffle | |
| 17 | 0340071 | Screw, cover to bracket | |
| 18 | 0338202 | Seal, cover to bracket, port | |
| 19 | 0338286 | Seal, cover to bracket, starboard | |
| 20 | 0436363 | Engine cover, lower, starboard | |
| 21 | 0339998 | Sound blanket, lower, rear, stbd. | |
| 22 | 0340000 | Sound blanket, front, stbd. | |
| 23 | 0512731 | Screw, bumper | |
| 24 | 0338300 | Grommet, shift rod, front | |
| 25 | 0338232 | Screw, cover, rear, upper | |
| 26 | 0336165 | Screw, fuel connector | |
| 27 | 0338241 | Choke lever | |
| 28 | 0438793 | Connector, fuel | This part replaces 0437407. |
| 29 | 0330996 | Seal, fuel connector | |
| 30 | 0338211 | Grommet, lower cover | |
| 31 | 0339931 | Grommet, shift throttle cables | |
| 31 | 0339287 | Grommet, throttle cable | |
| 32 | 0338289 | Grommet, star switch leads | |
| 32 | 0338290 | Grommet, switch wire hole | |
| 33 | 0335687 | Screw, clamp 1 4 20 x .75 |
