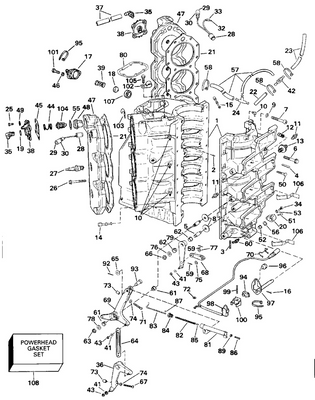

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 15
Product Description: Pin, Water Restrictor, Port
Category: EVINRUDE / 1993 / 225 / E225CXATS 1993 / CYLINDER & CRANKCASE
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
1 | 5000552 | Cylinder c'case assy. | This part replaces 0435098. |
2 | 0304178 | Pin, dowel | |
3 | 0314616 | Stud | |
4 | 0331095 | Pin, c c taper | |
5 | 0338653 | Stud, shift throttle levers | |
6 | 0326891 | Screw, cylinder to crankcase | |
7 | 0326890 | Screw, cylinder to crankcase | |
8 | 0320744 | Washer, stud | |
9 | 0322232 | Washer | |
10 | 0321598 | Crankcase fitting | |
11 | 0436194 | Check valve assy. | |
12 | 0434900 | Check valve assy. | |
13 | 0435009 | Pulse limiter | |
14 | 0339538 | Pin, water restrictor | |
15 | 0340521 | Pin, water restrictor, port | |
16 | 0330145 | Cotter pin | |
17 | 0337249 | Cover, blow off valve | |
18 | 0344202 | Valve, blow off | This part replaces 0337069. |
19 | 0202893 | "o" ring, drive shaft | |
20 | 0335191 | Lever, shift rod | |
21 | 0333670 | Gasket, cylinder head | This part replaces 0334726. |
22 | 0772570 | Flexible, évent vers silencieux d'admission d'air , 2 1 4" 57 mm | This part replaces 0332219. |
23 | HOSE, Bearing hsg. | ||
24 | 0325569 | Tee, primer solenoid hoses | |
25 | 0328744 | Screw, clamp 1 4 20 x .75 | |
26 | 0339066 | Screw, cylinder head | |
27 | 0502180 | Spark plug, champion ql77jc4 | This part replaces 0387633. |
27 | 0432424 | Spark plug , ql16v | |
28 | 0585038 | Temperature switch, starboard | This part replaces 0584650. |
28 | 0585039 | Temperature switch, port | This part replaces 0584665. |
29 | 0511469 | Terminal, pin | |
30 | 0513357 | Connector, 1 pin receptacle | |
32 | 0512947 | Terminal, bullet | |
33 | 0513185 | Sleeve | |
34 | 0327590 | Pin, shift lever | |
35 | 0337487 | Fitting, thermostat cover | |
36 | 0396374 | Throttle lever, lower | |
37 | HOSE, Thermostat cover to blowoff | ||
38 | 0337486 | Cover, thermostat | |
39 | 0336826 | Spring, blow off valve | |
41 | 0328737 | Washer | |
42 | 0434927 | Check valve assy. | |
43 | 0328064 | Nut | |
44 | 0337067 | Spring, thermostat | |
45 | 0337068 | Diaphragm, thermostat cover | |
46 | 0328703 | Washer, screw hook | |
47 | 0435572 | Cylinder head | |
47 | 0436892 | Cylinder head | This part replaces 0435044. |
48 | 0337533 | Sleeve | |
49 | 0328703 | Washer, screw hook | |
50 | 0324334 | Screw | |
51 | 0328695 | Clamp, engine cable | |
52 | 0312708 | Bushing | |
53 | 0302290 | Washer | |
54 | 0331894 | Elbow | |
55 | 0339044 | Gasket | |
56 | 0202026 | Washer, rod | |
57 | HOSE, Drain system | ||
58 | 0320107 | Tie strap | |
59 | 0305650 | Cotter pin | |
60 | 0319253 | Fitting, c c lubrication | |
61 | 0308532 | Bague, levier de verrouillage | |
62 | 0308532 | Bague, levier de verrouillage | |
63 | 0315077 | Locknut, 3 8 24 ss | |
64 | 0331224 | Link, shift lever to shift arm | |
65 | 0330995 | Washer, override spring | |
66 | 0315077 | Locknut, 3 8 24 ss | |
67 | 0334219 | Screw | |
68 | 0331737 | Link, shift arm | |
69 | 0396714 | Throttle lever, upper | |
70 | 0512741 | Retainer, connector, 1 pin | |
71 | 0333976 | Screw, actuator 1 4 20 x 2.5 | |
72 | 0328701 | Lockwasher, double ended bolt | |
73 | 0318660 | Bumper, screw, throttle stop | |
74 | 0328741 | Nut, input stud | |
75 | 0328702 | Washer | |
76 | 0330266 | Washer, trail lock lever | |
77 | 0328702 | Washer | |
78 | 0330266 | Washer, trail lock lever | |
79 | 0433481 | Shift arm | |
80 | 0344472 | Gasket, rect. reg. to cyl. block | This part replaces 0330412. |
81 | 0396667 | Link assy., spark advance | |
82 | 0326738 | Spring, link | |
83 | 0331863 | Rod, spark advance link | |
84 | 0331864 | Cap, spring housing | |
85 | 0328635 | Bushing, spring | |
86 | 0331879 | Screw | |
87 | 0329770 | Pin, rod | |
89 | 0328712 | Ãcrou, montage instrument | |
92 | 0330145 | Cotter pin | |
93 | 0328636 | Pin, advance link | |
94 | 0513811 | Bracket, neutral switch slider | |
95 | 0320107 | Tie strap | |
96 | 0331404 | Axe, interrupteur de démarrage au point mort | |
97 | 0431908 | Lever, neutral switch | |
98 | 0586294 | Switch cable | This part replaces 0584754. |
99 | 0333749 | Ressort, interrupteur de démarrage au point mort | |
100 | 0513134 | Bracket, neutral switch | |
101 | 0328744 | Screw, clamp 1 4 20 x .75 | |
102 | 0310928 | Clamp, steering bracket | |
103 | 0330157 | Clamp | |
105 | 0319590 | Screw, plate 3 8 16 x .75 | |
106 | 0334169 | Clamp, hose, control valve | |
107 | 0335981 | Seal, t stat cylinder head to c c | |
108 | 0432687 | Powerhead gasket set |
