EVINRUDE-JOHNSON 341084 Couvercle

Write a Review
$17.49
SKU:
341084
Schematic Object Key:
30

EVINRUDE-JOHNSON 341084 Couvercle

$17.49

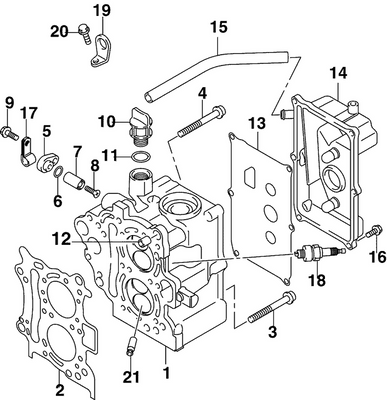

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 341084 Couvercle

Schematic Object Key : 30

Product Description: Couvercle

Category: EVINRUDE / 1994 / 105 / E150JLERA 1994 / CARB. & INTAKE MANIFOLD 150 "V" OR "S" MODEL SUFFIX

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0436845 Throttle body assy, 150 stbd
1 0436846 Throttle body assy, 150 port
1 0437317 Throttle body ay., stbd., 150jpl
1 0437318 Throttle body ay., port, 150jpl
1 0436847 Throttle body assy, 150 stbd
1 0436848 Throttle body assy, 150 port
2 0328714 Screw, clip
3 0328765 Attache
4 0340656 Couvercle, poche d'étalonnage
5 0340657 Gasket, cover
6 0340654 Screw, cover
7 0328649 Screw, bowl to body
8 0433000 Chambre de flotteur
9 0317473 High speed orifice, no. 30
9 0323003 Orifice, 25, 150jpl
9 0323149 High speed orifice, no. 38
10 0396522 Ensemble soupape à flotteur
11 0336842 Clip, spring
12 0343512 Gasket, nozzle This part replaces 0336405.
13 0328714 Screw, clip
14 0336366 Attache, collecteur vers carter de papillon
15 0322907 Orifice, intermediate no. 57d
15 0327769 Orifice, high speed no. 70d
15 0327769 Orifice, high speed no. 70d
16 0335070 Gasket, float bowl
17 0335077 Axe, flotteur
18 0433167 Ensemble flotteur
19 0327116 Screw, plug
20 0326164 Screw, hinge pin
21 0340653 Seal, carburetor body
22 0335363 Crépine, carter de papillon
23 0433364 Fuel manifold, port stbd
24 0335362 Joint torique, tubulures carburant
25 0324643 Screw
26 0328649 Screw, bowl to body
27 0305739 "o"ring,valve seat
28 0438995 Carburetor body assy., 150, cx, vx, vc, vcx This part replaces 0436849.
28 0439755 Carburetor body assy., 150jpl This part replaces 0437319.
28 0439756 Carburetor body assy. This part replaces 0436850.
29 0335244 Seal, air silencer
30 0341084 Couvercle
31 0341085 Gasket, cover plate
32 0315656 Screw
33 0332576 Ressort, soupape à pointeau
34 0342775 Needle valve This part replaces 0340883.
35 0336226 Gasket, manifold to block port
36 0336227 Gasket, manifold to block stbd
37 0318165 Dispositif de retenue, tringlerie de carburateur
38 0335242 Bungie, long
39 0433521 Balance tube
40 0433241 Intake manifold assy, port
41 0433249 Intake manifold assy, stbd
42 0435681 Check valve assembly
43 0336639 Crépine
44 0335121 Fitting, primer
45 0335362 Joint torique, tubulures carburant
46 0343269 Link, port to stbd. carburetor This part replaces 0335256.
47 0389823 Clapet
48 0323412 Cale
49 0323601 Butée de clapet
50 0327074 Screw
51 0317739 Leaf valve
52 0437372 Air silencer assy This part replaces 0336094.
53 0335739 Screw, conn. brkt. to mntg. brkt.
54 0432639 Galet, contre came
55 0328735 Washer, screw, ball joint
56 0335257 Lever, linkage adjustment
57 0315656 Screw
58 0328744 Screw, clamp 1 4 20 x .75
59 SEAL, Cover
60 0437372 Air silencer assy This part replaces 0336093.
61 0333677 Screw
62 0323626 Screw
63 0335729 Retainer, balance tube
64 0335403 Seal, manifold to carb port
65 0335404 Seal, manifold to carb stbd
66 HOSE, Balance tube drain
67 0324678 O ring, valve core, lower
68 0303630 Washer
69 0336821 Gasket, air silencer
70 0438996 Carburetor repair kit This part replaces 0436852.
