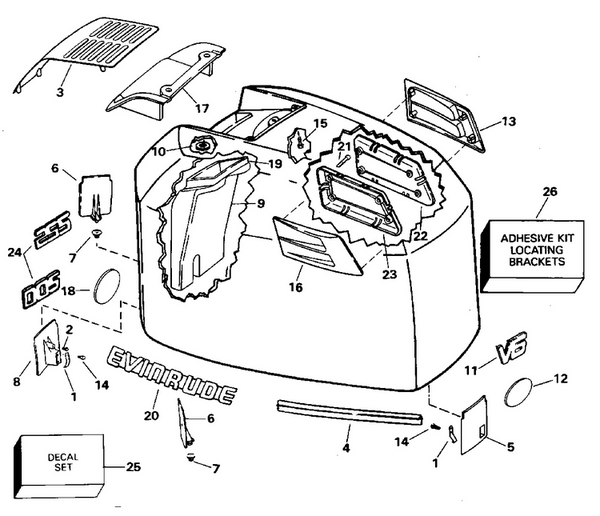

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 22
Product Description: Bracket, Mounting, Port
Category: EVINRUDE / 1995 / 200 / LE200SLEOC 1995 / ENGINE COVER - EVINRUDE - 200STL, 225STL
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
0284760 | 0284760 | Engine cover assy., 200 | |
0284761 | 0284761 | Engine cover assy., 225 | |
1 | 0435716 | Hook | |
2 | 0323228 | Screw | |
3 | 0337791 | Cover, air intake | |
4 | 0337790 | Seal, engine cover | |
5 | 0437394 | Bracket, front | |
6 | 0337789 | Locating bracket, rear | |
7 | 0324898 | Bumper | |
8 | 0437393 | Bracket, rear | |
9 | 0337793 | Baffle, air intake | |
10 | 0317223 | Fasteners, push on | |
11 | 0212470 | Applique, front, v6 | |
12 | 0212478 | Applique, ev., port stbd | This part replaces 0212477. |
13 | 0341390 | Louver, port | |
14 | 0328744 | Screw, clamp 1 4 20 x .75 | |
15 | 0332191 | Screw, air intake | |
16 | 0341391 | Louver, stbd | |
17 | 0337528 | Baffle | |
18 | 0212478 | Applique, ev., port stbd | |
19 | 0338482 | Seal, baffle | |
20 | 0212479 | Lens, ev., port stbd. | |
21 | 0330823 | Screw, duct to cover | |
22 | 0341392 | Bracket, mounting, port | |
23 | 0341393 | Bracket, louver, stbd. | |
24 | 0212468 | Lens, 200 rear | |
24 | 0212469 | Lens, 225 rear | |
25 | 0284889 | Decal set, 200 | |
25 | 0284891 | Decal set, 225 | |
26 | 0431929 | Adhesive |
