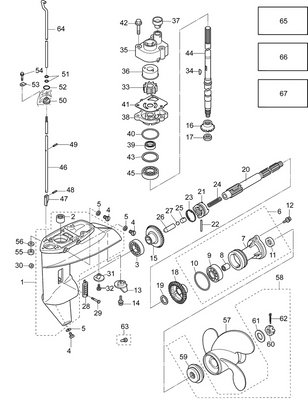

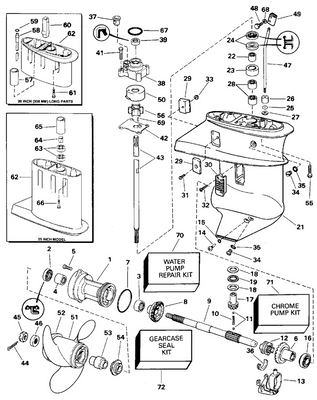

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : -
Product Description: Seal, Gearcase To Exhaust Housing
Category: EVINRUDE / 2011 / 25 / E25DRSIIH / GEARCASE, H-Type
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
1 | 5009360 | Gearcase housing assembly | This part replaces 5008163. |
2 | 0353931 | Pin, alignment | |
3 | 0321738 | Washer, seal, shift rod contents of gearcase seal kit | |
4 | 0301877 | O ring shift rod contents of gearcase seal kit | |
5 | 0303347 | "o" ring, lower bearing contents of gearcase seal kit | |
6 | 0326361 | Bushing, shift rod lower | |
7 | 0386186 | Roller bearing, forward gear | |
8 | 0330441 | Thrust washer, lower | |
9 | 0388027 | Thrust bearing, pinion | |
10 | 0327716 | Thrust washer, upper | |
11 | 0376856 | Bearing assembly, pinion | |
12 | 0322018 | Housing, bearing | |
13 | 0386473 | Bearing assembly | |
14 | 0321928 | Retainer, oil, , lower contents of gearcase seal kit | |
15 | 0332261 | Seal, driveshaft upper contents of gearcase seal kit | |
16 | 0336206 | Screen, intake | |
17 | 0325539 | Screw, sceen to gearcase | |
18 | 5007582 | Anode kit | |
19 | 0353588 | Screw, anode mounting | |
20 | 0304454 | Lock washer | |
21 | 0307551 | Screw contents of gearcase seal kit | |
22 | 0311598 | Seal | |
23 | 0351147 | Gear, pinion | |
24 | 0392475 | Gear bushing assy., forward | |
25 | 0327655 | Gear, reverse | |
26 | 0337020 | Shifter, clutch dog | |
27 | 0328311 | Cradle, clutch dog | |
28 | 0337019 | Lever, shifter | |
29 | 0302504 | Pin, connector, shift rod | |
30 | 0303049 | Cotter pin | |
31 | 0390023 | Yoke connector assy | |
32 | 0327070 | Spring, detent propeller shaft | |
33 | 0316506 | Ball, detent | |
34 | 0308376 | Pivot pin, shift lever | |
35 | 0332584 | Washer, seal ring contents of gearcase seal kit | |
36 | 0439143 | Propeller shaft | |
37 | 0319635 | Bushing, reverse gear | |
38 | 0319746 | Retainer plate, housing | |
39 | 0319747 | Retaiining ring | |
40 | 0319684 | Thrust washer | |
41 | 0338518 | O ring, bearing housing contents of gearcase seal kit | |
42 | 5008160 | Bearing housing seal | |
43 | 0437288 | Bearing assembly, propeller shaft | |
44 | 0321453 | Seal, propeller shaft contents of gearcase seal kit | |
45 | 0319743 | Screw, propeller shaft bearing housing | |
46 | 0332584 | Washer, seal ring contents of gearcase seal kit | |
47 | 0353714 | Shift rod, lower | |
48 | 5008161 | Trim tab assy | |
48 | 0355125 | Trim tab | |
49 | 0353589 | Screw, trim tab | |
50 | 5008972 | Water pump repair kit | This part replaces 5008191. |
51 | 0325537 | Gasket, plate to gearcase contents of gearcase seal kit | |
52 | 0328755 | Plate, impeller housing | |
53 | 0328753 | Seal, impeller housing to plate contents of gearcase seal kit | |
54 | 5008968 | Impeller assembly | This part replaces 5008185. |
55 | 0344470 | Key, impeller | |
56 | 0360633 | Cup, impeller housing | This part replaces 0328751. |
57 | 0554545 | "o" ring, small contents of gearcase seal kit | |
58 | 0393632 | Impeller housing | |
59 | 0328754 | Bushing, impeller housing | |
60 | 0301877 | O ring shift rod | |
61 | 0353590 | Screw | |
62 | 0302497 | Grommet, lower water tube | |
63 | 5007770 | Seal pin assy | |
- | 0342370 | Seal, gearcase to exhaust housing | |
* | 0354156 | Pin | |
64 | 0352898 | Driveshaft | |
64 | 0352899 | Driveshaft | |
64 | 0355258 | Driveshaft | |
65 | 0303794 | Connector | |
66 | 0304024 | Screw | |
67 | 0301551 | Washer, lock | |
68 | 0353554 | Screw, starter to crankcase | |
69 | 0353735 | Washer, end cap screws | |
70 | 0353704 | Nut gearcase to extension | |
71 | 5007987 | Gearcase seal kit |
