EVINRUDE-JOHNSON 342535 Stern Bracket, Assy., Port

Write a Review
$306.49
SKU:
342535
Schematic Object Key:
53

EVINRUDE-JOHNSON 342535 Stern Bracket, Assy., Port

$306.49

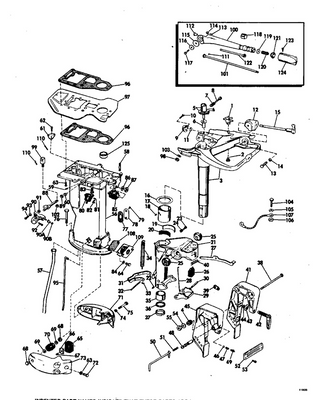

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 342535 Stern Bracket, Assy., Port

Schematic Object Key : 53

Product Description: Stern Bracket, Assy., Port

Category: JOHNSON / 1996 / 25 / HJ25RSLO 1996 / MIDSECTION - 25RS - 25RW - H25FP

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0330621 Gasket, powerhead base
2 0308743 Screw, injector to manifold This part replaces 0342422.
3 0435564 Exhaust housing assy.
4 0324815 Stud
5 0336258 Exhaust tube, inner
6 0325974 Mount, rubber, upper
7 0329217 Screw, retainer
8 0338657 Link, shallow water drive
9 0323158 Bracket, rubber, lower side
10 0325975 Mount, rubber, lower
11 0317894 Cap, tilt tube
12 0337586 Ecrou racleur
13 0323109 Houising,lower mount,stbd.
14 0322945 Pin, link shallow water drive
15 0309942 Screw, anchor bracket
16 0303886 Lockwasher
17 0321469 Mount, rubber, lower front
18 0302497 Grommet, lower water tube
19 0309942 Screw, anchor bracket
20 0326943 Pin, link to lock lever
21 0323108 Housing, lower mount port
22 0342540 Screw, exhaust housing to ext.
23 0303884 Washer
24 0303889 .nut
25 0331812 Mount, rubber, upper front
26 0302504 Pin, connector, shift rod
27 0305650 Cotter pin
28 0308017 Screw, bellcrank to shift lever
29 0304380 , bow
30 0319537 Clip
31 0322092 Lever, shift rod
32 0303775 Wahser, lever to hsg
33 0304859 Rod, shaft, upper
34 0203688 Nut
35 0394574 Adj. lever shaft assy
36 0324660 O ring
38 0333774 Attache, commande vers tringlerie de sens de marche
39 0319697 Spring reverse lock
40 0322946 Spring, shallow water drive
42 0313607 Lube fitting
43 0317581 Screw, actuator cam
44 0303887 Washeer, pin to swivel bracket
46 0313607 Lube fitting
47 0313838 Nut, bracket to steering arm
48 0342536 Stern bracket, assy., stbd.
0391421 0391421 Clamp screw handle
49 0433675 Clamp scr. hand. assy. This part replaces 0433672.
50 0337017 Plate, swivel
51 0321922 Screw, shoulder
53 0342535 Stern bracket, assy., port
54 0319108 Screw belcrank
55 0319695 Bell crank
56 0324816 Screw, anode
58 0309967 Bushing, pilot shaft, lower
59 0301917 O ring
60 0309966 Thrust washer, lower swivel bracket
61 0319696 Rod, reverse lock
62 0388661 Cam shift assy., tilt lock
63 0397736 Block assy., friction
64 0332662 Block, friction, swivel bracket
65 0321531 Screw, friction adjust. swivel brkt.
66 0332663 Liner
67 0319787 Bushing
68 0319227 Screw, knob
69 0324579 Screw
70 0322947 Head assy.
71 0328048 Knob, tilt reverse lock lever
72 0551113 Ressort de friction de direction
73 0326071 Bumper, mount housing
74 0322949 Link, reverse lock
75 0315786 Retainer, knob
76 0322950 Lever, reverse lock
77 0315078 Spring, reverse lock
78 0316355 But, carburetor mounting This part replaces 0315204.
79 0329648 Pilot shaft
80 0335430 Bracket, steering
81 0317624 Screw, driveshaft hsg
82 0357240 Tie bar, stern bracket This part replaces 0319709.
83 0319699 Thrust washer, stern bracket
0432294 0432294 Screw nut assembly
84 0363013 Screw This part replaces 0334427.
85 0363253 Nut,lock This part replaces 0310702.
86 0351896 Tilt tube This part replaces 0321511.
87 0315776 Rondelle
88 0335342 Actuator cam, shift
89 0319694 Spring, tilt lock
90 0319693 Bushing, tilt lock
91 0319692 Pin tilt lock
92 0388662 Leveer shaft, lock
93 0436387 Tilt pin
94 0335554 Locknut, tilt tube
95 0437876 Lock assembly, tilt port This part replaces 0387667.
97 0437875 Lock assembly, tilt starboard This part replaces 0387668.
98 0304144 Lock washer
99 0333774 Attache, commande vers tringlerie de sens de marche
100 0333774 Attache, commande vers tringlerie de sens de marche
101 0313607 Lube fitting
102 0304023 Gasket, cover plate
103 0303862 Cover plate, extension long shaft models
104 0303587 Scres,cover plate
105 0328703 Washer, screw hook
