EVINRUDE-JOHNSON 342722 Stern Bracket, Port

Write a Review
$137.99
SKU:
342722
Schematic Object Key:
53

EVINRUDE-JOHNSON 342722 Stern Bracket, Port

$137.99

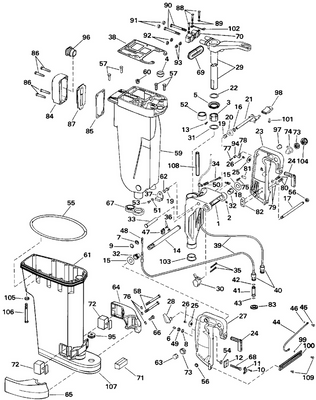

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 342722 Stern Bracket, Port

Schematic Object Key : 53

Product Description: Stern Bracket, Port

Category: JOHNSON / 2001 / 35 / BJ35E3SIE elec start, 15 in shaft, n/a usa 2001 / MIDSECTION - MANUAL TILT - A - K - R - RL - RV - RVL - EL - EVL - TEL - TVL

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0436133 Exhaust housing
2 0332406 Pin, exhaust housing
3 0325762 Roll pin, shut off valve
4 0436857 Bouchon gicleur, indicateur d'éjection
5 0301967 O ring
6 0304376 Washer, handle to bracket
7 0320107 Tie strap
8 0339331 Gasket, powerhead base
9 0436039 Mount, lower
10 0339390 Exhaust housing seal, upper
11 0438299 Mount, upper
12 0336136 Clamp
13 0342507 Pin, tilt lock to stern brackets
14 0313607 Lube fitting
16 0337378 Screw, starter motor
17 0339657 Bracket, lower mount
18 0335530 Reed valve
19 0339992 Carrying handle
20 0340819 Seal, steering arm
21 0339388 Screw, bracket to pivot shaft, m8
22 0338935 Locknut, m8
23 0341053 Washer, lower mount screw, m8
24 0340800 Exhaust housing seal, lower
25 0339741 Screw, lower mount, m8
27 0338935 Locknut, m8
28 0343168 Screw, upper mnt. to steering arm, m10
29 0330137 Seal
30 0319699 Thrust washer, stern bracket
31 0357240 Tie bar, stern bracket This part replaces 0319709.
32 0322946 Spring, shallow water drive
33 0319697 Spring reverse lock
34 0334119 Connector
36 0339568 Shift rod, upper r, rv, e, ev models.
36 0339569 Shift rod, upper rl, el, tel, tvl, rvl, evl models.
37 0338630 Clip, link
38 0439560 Lever shaft assy.
39 0337586 Ecrou racleur
41 0333774 Attache, commande vers tringlerie de sens de marche
42 0313607 Lube fitting
43 0305650 Cotter pin
44 0340923 Bushing, shift shaft
45 0326943 Pin, link to lock lever
47 0436387 Tilt pin
48 0342723 Stern bracket, stbd.
49 0433675 Clamp scr. hand. assy. This part replaces 0433674.
49 0391421 Clamp screw handle optional
50 0337017 Plate, swivel
51 0321922 Screw, shoulder
52 0398001 Handle rivet
53 0342722 Stern bracket, port
54 0319108 Screw belcrank
55 0319695 Bell crank
56 0322945 Pin, link shallow water drive
57 0305650 Cotter pin
58 0342914 Bushing
59 0436897 Lever shaft assembly, tilt lock
60 0318295 Thrust washer, upper
61 0319696 Rod, reverse lock
62 0388661 Cam shift assy., tilt lock
63 5000697 Bracket, swivel
64 0342397 Friction block
65 5000639 Screw, friction adjustment
66 0551113 Ressort de friction de direction
67 0319787 Bushing
68 0319227 Screw, knob
69 0324579 Screw
70 0322947 Head assy.
71 0328048 Knob, tilt reverse lock lever
72 0317894 Cap, tilt tube
73 0313990 Ecrou, support vers embarcation
74 0322949 Link, reverse lock
75 0303887 Washeer, pin to swivel bracket
76 0322950 Lever, reverse lock
77 0315078 Spring, reverse lock
78 0338657 Link, shallow water drive
79 0438298 Arm shaft assy.
80 0436223 Grommet, exhaust relief
82 0339489 Bushing
84 0363013 Screw This part replaces 0334427.
85 0363253 Nut,lock This part replaces 0310702.
86 0315776 Rondelle
87 0351896 Tilt tube This part replaces 0321511.
88 0335554 Locknut, tilt tube
89 0303884 Washer
90 0342908 Shield, tilt tube
