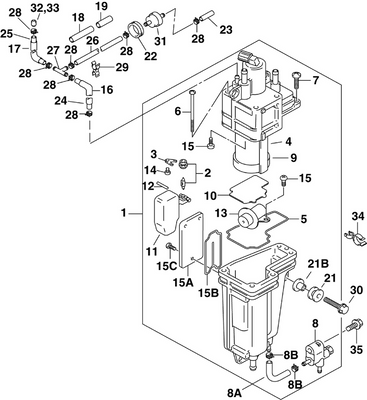

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 57
Product Description: Hose, Drain System
Category: JOHNSON / 1998 / 130 / J130TLECE 1998 / CYLINDER & CRANKCASE
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
1 | 0438796 | Cylinder crankcase assy. | |
2 | 0304178 | Pin, dowel | |
3 | 0314616 | Stud | |
4 | 0331095 | Pin, c c taper | |
5 | 0338653 | Stud, shift throttle levers | |
6 | 0326891 | Screw, cylinder to crankcase | |
7 | 0326890 | Screw, cylinder to crankcase | |
8 | 0320744 | Washer, stud | |
9 | 0322232 | Washer | |
10 | 0321598 | Crankcase fitting | |
11 | 0321598 | Crankcase fitting | |
12 | 0317121 | Fitting, vent | |
13 | 0436194 | Check valve assy. | |
14 | 0435009 | Pulse limiter | |
15 | 0908768 | Fitting, lubrication | |
16 | 0434927 | Check valve assy. | |
17 | 0436385 | Check valve assy | |
18 | 0913438 | Hose, 30 degree tee to check valve | |
20 | 0326644 | Lever, shift rod | |
21 | 0340115 | Gasket, cylinder head | |
23 | HOSE, Bearing housing, 15 1/2 in. (394mm) | ||
24 | 0331215 | Horse, elbow to tee | |
25 | 0306049 | Screw | |
26 | 0322323 | Screw | |
27 | 0437929 | Bougie, champion, ql78yc | |
28 | 0585183 | Temperature switch, stbd. | |
29 | 0511469 | Terminal, pin | |
30 | 0513357 | Connector, 1 pin receptacle | |
31 | 0329562 | Cache, interrupteur | |
32 | 0343141 | Cover, thermostat | |
33 | 0327590 | Pin, shift lever | |
34 | 0343020 | Spring | |
36 | 0317893 | Tie strap | |
37 | 0329830 | Gasket, cover | |
38 | 0336178 | Housing, thermostat | |
39 | 0315391 | Cover | |
40 | 0914902 | Aspirator | |
41 | 0328737 | Washer | |
42 | HOSE, Valve lower, 2 1/4 in. (57mm) | ||
43 | 0328064 | Nut | |
44 | 0336179 | Spring | |
47 | 0339154 | Cylinder head | |
48 | 0435957 | Diaphragm | |
50 | 0554306 | Screw, cyl. to crankcase | |
51 | 0328695 | Clamp, engine cable | |
52 | 0312708 | Bushing | |
53 | 0302290 | Washer | |
54 | 0321886 | Elbow | |
55 | 0327805 | Ãcrou | |
56 | 0202026 | Washer, rod | |
57 | HOSE, Drain system, 9 in. (229mm) | ||
57 | 0343071 | Hose, drain system | |
58 | 0320107 | Tie strap | |
59 | 0305650 | Cotter pin | |
61 | 0308532 | Bague, levier de verrouillage | |
62 | 0308532 | Bague, levier de verrouillage | |
63 | 0315077 | Locknut, 3 8 24 ss | |
64 | 0340134 | Pin, shift lever | |
65 | 0330995 | Washer, override spring | |
66 | 0315077 | Locknut, 3 8 24 ss | |
67 | 0329083 | Lever, shift | |
68 | 0340133 | Link, shift lever | |
69 | 0432649 | Throttle lever | |
70 | 0203688 | Nut | |
71 | 0334219 | Screw | |
72 | 0308993 | Ressort, friction d'accélération | |
73 | 0318660 | Bumper, screw, throttle stop | |
74 | 0328741 | Nut, input stud | |
75 | 0328702 | Washer | |
76 | 0330266 | Washer, trail lock lever | |
77 | 0328702 | Washer | |
78 | 0330266 | Washer, trail lock lever | |
79 | 0433481 | Shift arm | |
80 | 0336185 | Washer | |
81 | 0396667 | Link assy., spark advance | |
82 | 0326738 | Spring, link | |
83 | 0331863 | Rod, spark advance link | |
84 | 0331864 | Cap, spring housing | |
85 | 0328635 | Bushing, spring | |
86 | 0328712 | Ãcrou, montage instrument | |
87 | 0329770 | Pin, rod | |
88 | 0331879 | Screw | |
89 | 0915209 | O ring, aspirator | |
90 | 0316487 | Retainer | |
91 | 0330145 | Cotter pin | |
92 | 0330145 | Cotter pin | |
93 | 0328636 | Pin, advance link | |
94 | 0436195 | Thermostat | |
95 | 0122220 | Seal | |
96 | 0317936 | Washer | |
100 | 0512741 | Retainer, connector, 1 pin | |
101 | 0585203 | Temperature switch, port | |
102 | 0329562 | Cache, interrupteur | |
103 | 0511469 | Terminal, pin | |
104 | 0512947 | Terminal, bullet | |
105 | 0513185 | Sleeve | |
106 | 0513357 | Connector, 1 pin receptacle | |
108 | 0310928 | Clamp, steering bracket | |
109 | 0319590 | Screw, plate 3 8 16 x .75 | |
111 | 0334220 | Screw, cps bracket | |
112 | 0317893 | Tie strap | |
113 | 0913439 | Hose, aspirator | |
114 | 0986534 | Check valve, aspirator | |
115 | 0432570 | Powerhead gasket set | |
116 | 0433095 | Low compression cyl. head kit |
