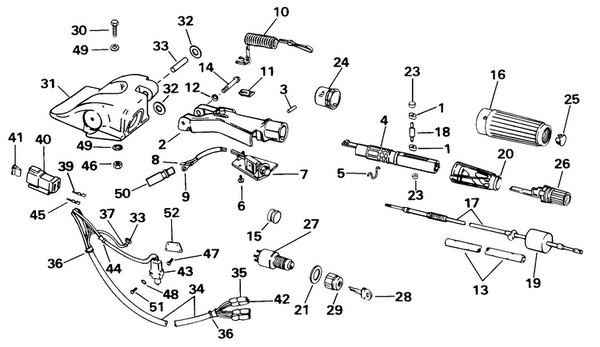

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 52
Product Description: Bracket, Switch
Category: EVINRUDE / 1998 / 25 / BE25QLECA 1998 / STEERING & SHIFT HANDLE
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
1 | 0329879 | Guide | |
2 | 0434094 | Steering handle assy. | |
3 | 0334960 | Pin, inner steering handle | |
4 | 0397001 | Handle, inner | |
5 | 0332089 | Retaining ring | |
6 | 0336481 | Screw, stop switch mount | |
7 | 0585133 | Stop switch assy. | |
8 | 0511469 | Terminal, pin | |
9 | 0510818 | Terminal, ring | |
10 | 0398602 | Lanyard assy. | |
11 | 0333499 | Clip, restart | |
12 | 0331259 | Lock washer | |
13 | 0339691 | Sleeve, throttle cable lead wire | |
14 | 0324602 | Screw, steering handle to bracket | |
15 | 0338287 | Grommet, key switch hole | |
16 | 0436216 | Twist grip | |
17 | 0436953 | Throttle cable assy. | |
18 | 0329880 | Goupille | |
19 | 0329063 | Seal | |
20 | 0339722 | Hélicoïdale, poignée tournante | |
21 | 0127251 | Entretoise | |
22 | 0335426 | Bushing, handle to bracket | |
23 | 0329881 | Galet, hélice vers câble | |
24 | 0327944 | Plate, throttle control | |
25 | 0336347 | Plug | |
26 | 0584302 | Adjustment, idle | |
27 | 0176273 | Lanyard assy. | |
28 | 0176287 | Key set | |
28 | 0127279 | Key 70 | |
28 | 0127280 | Key 71 | |
28 | 0127281 | Key 72 | |
28 | 0127591 | Key 75 | |
28 | 0127592 | Key 76 | |
28 | 0127593 | Key 77 | |
28 | 0127595 | Key 79 | |
29 | 0127237 | Ecrou, interrupteur à clé | |
30 | 0325729 | Screw | |
31 | 0439467 | Bracket, steering handle | |
32 | 0304376 | Washer, handle to bracket | |
33 | 0338872 | Sleeve | |
34 | 0586064 | Cable assy., ignition switch | |
35 | 0126908 | Sleeve, socket | |
36 | 0317893 | Tie strap | |
37 | 0510781 | Tubing, sleeve | |
38 | 0510818 | Terminal, ring | |
39 | 0514679 | Borne, broche | |
40 | 0514688 | Connector, 6 pin | |
41 | 0514684 | Lock wedge, 6 pin | |
42 | 0910446 | Terminal, socket | |
43 | 0586065 | Switch, safety | |
44 | 0317893 | Tie strap | |
45 | 0514679 | Borne, broche | |
46 | 0315077 | Locknut, 3 8 24 ss | |
47 | 0341992 | Screw | |
48 | 0303581 | Washer, switch | |
49 | 0330266 | Washer, trail lock lever | |
50 | 0513357 | Connector, 1 pin receptacle | |
51 | 0334192 | Screw, neutral start | |
52 | 0343106 | Bracket, switch |
