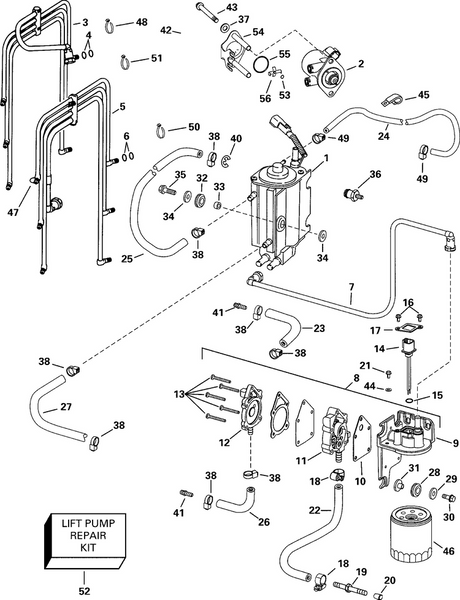

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 6
Product Description: O-Ring, Brown
Category: EVINRUDE / 2000 / 135 / RE135FCSSS FFI, Elec Start, TNT, 25 IN. shaft, wht, cntr rotate 2000 / FUEL COMPONENTS
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
| Key | Part No. | Product Name | Additional_info |
|---|---|---|---|
| 1 | 5004428 | Vapor separator fuel pump | This part replaces 0439347. |
| 2 | 5005195 | Fuel injector all except "v" suffix models | This part replaces 5001394. |
| 2 | 5004479 | Fuel injector "v" suffix models only | This part replaces 5000945. |
| 3 | 5000205 | Fuel manifold assy, supply | |
| 4 | 0344828 | O ring, black | |
| 5 | 5005407 | Fuel manifold assy, return | This part replaces 5000206. |
| 6 | 0343585 | O ring, brown | |
| 7 | 5000202 | Fuel supply tube assy, filter to vapor separator | |
| 8 | 5001367 | Fuel lift pump assy. | This part replaces 0439634. |
| 9 | 0439633 | Housing assy. | |
| 10 | 0347061 | Crankcase assembly | This part replaces 0344733. |
| 11 | 0439665 | Housing assy., lift pump use 5004454 fuel pump kit for 1998 2001 75 115 h.p. ffi, use 5004455 fuel pump kit for 1999 2001 135 175 h.p. ffi. | |
| 12 | 0439759 | Cover, lift pump use 5004454 fuel pump kit for 1998 2001 75 115 h.p. ffi, use 5004455 fuel pump kit for 1999 2001 135 175 h.p. ffi | |
| 13 | 0330184 | Screw | |
| 14 | 5001502 | Sensor, water | This part replaces 0439926. |
| 15 | 0915352 | O ring, water sensor | This part replaces 3850819. |
| 16 | 0336481 | Screw, stop switch mount | |
| 17 | 0344609 | Retainer | |
| 18 | 0438935 | Tube assy. fuel oil | |
| 19 | 0343553 | Retainer | |
| 20 | 0344351 | Grommet | |
| 21 | 0332226 | Screw, air temperature sensor | This part replaces 0333673. |
| 22 | 0345108 | Hose, inlet tube to lift pump | |
| 23 | 0333385 | Hose, oil injector outlet to regulator | |
| 24 | 0345529 | Hose, vapor separator to throttle body | |
| 25 | 0345109 | Hose, water to emm from vapor sep | |
| 26 | 0345110 | Hose, fuel pulse, lower to 5 | |
| 27 | 0346540 | Hose, water supply to vapor separator | |
| 28 | 0333040 | Isolator | |
| 29 | 0328703 | Washer, screw hook | |
| 30 | 0333710 | Screw, anchor bracket | |
| 31 | 0338558 | Entretoise, Ã collerette | |
| 32 | 0329518 | Grommet, esm mounting | |
| 33 | 0335328 | Screw, connector | |
| 34 | 0328700 | Washer | |
| 35 | 0333710 | Screw, anchor bracket | |
| 36 | 0344848 | Goujon, montage esm | |
| 37 | 0348224 | Washer, injector to adaptor | |
| 38 | 0320107 | Tie strap | |
| 39 | 0343765 | Clamp, lift pump | |
| 40 | 0510487 | Retaining ring | |
| 41 | 0345702 | Fitting, cooling hose | |
| 43 | 0347386 | Screw, injector to adaptor | |
| 44 | 0303701 | Lock washer, adjustment screw | |
| 45 | 0310441 | Clamp, small | |
| 46 | 5011090 | Filter, fuel | This part replaces 0502906. |
| 47 | 0126341 | Cap | |
| 48 | 0907833 | Attache câble, câbles vers commande de sens de marche | |
| 49 | 0317893 | Tie strap | |
| 50 | 0320107 | Tie strap | |
| 51 | 0320107 | Tie strap | |
| 53 | 0348496 | O ring | |
| 54 | 5001718 | Cap, sleeve o ring | |
| 55 | 0348107 | O ring | |
| 56 | 5001901 | Spring button | |
| 57 | 0439881 | Lift pump repair kit |
