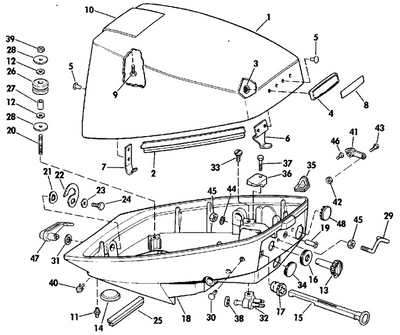

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 7
Product Description: Seal, Fuel Connector To Motor Cover
Category: EVINRUDE / AB Models / 25 / E25DRSABF / 01-3_LOWER ENGINE COVER
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
| Key | Part No. | Product Name | Additional_info |
|---|---|---|---|
| 1 | 5006278 | Lower cover assembly, port blue models | |
| 1 | 5008170 | Lower cover assembly, port white models | |
| 1 | 5009197 | Lower cover assembly, port graphite models | |
| 2 | 0339575 | Screw, ball joint | |
| 3 | 0309485 | Ecrou, vis, rotule | |
| 4 | 0353671 | Bumper | |
| 5 | 0337358 | Screw, bumper | |
| NS | 0353088 | Insulation, sound port center | |
| NS | 0353808 | Insulation, sound port lower | |
| 6 | 0438793 | Connector, fuel | |
| 7 | 0343736 | Seal, fuel connector to motor cover | |
| 8 | 0336165 | Screw, fuel connector | |
| 9 | 0353761 | Rondelle, levier de sens de marche | |
| 10 | 0353815 | Grommet, lower port | |
| 11 | 0351152 | Screw, port cover to starboard cover | |
| 12 | 0353986 | Screw, front latch sleeve | |
| 13 | 5006279 | Lower cover assembly, starboard blue models | |
| 13 | 5008171 | Lower cover assembly, starboard white models | |
| 13 | 5009198 | Lower cover assembly, starboard graphite models | |
| 14 | 0353672 | Bumper | |
| 15 | 0337358 | Screw, bumper | |
| 16 | 5005709 | Handle, rear latch | |
| 17 | 0344630 | Pin, roll | |
| 18 | 0343578 | Crochet, avant arrière | |
| 19 | 0330234 | Bow washer | |
| 20 | 0342191 | Screw, cam | |
| NS | 0353002 | Insert, nut | |
| NS | 0353810 | Insulation, sound starboard center | |
| NS | 0353813 | Insulation, sound starboard lower | |
| 21 | 0354162 | Grommet see "cooling hoses" | |
| NS | 0349759 | Clamp, 31,6 mm exhaust grommet to muffler | |
| 22 | 0351152 | Screw, port cover to starboard cover | |
| 23 | 0353550 | Retainer cover, cabble entry blue models | |
| 23 | 0355277 | Retainer cover, cable entry white white models | |
| 23 | 0357392 | Retainer, cover, cable entry graphite models | |
| 24 | 0353818 | Grommet, cable entry upper | |
| 25 | 0353819 | Grommet, cable entry lower | |
| 26 | 0353895 | Sleeve, front latch | |
| 27 | 0353681 | Seal, steering arm | |
| 28 | 0332413 | Mount | |
| 29 | 0353805 | Spacer, rear mount to block | |
| 30 | 0349556 | Washer | |
| 31 | 5008176 | Seal kit, lower cover to exhaust optional accessory | |
| NS | 0354709 | Autocollant, vierge | |
| NS | 0320107 | Tie strap |
