EVINRUDE-JOHNSON 343977 Spring

Write a Review
$12.99
SKU:
343977
Schematic Object Key:
39

EVINRUDE-JOHNSON 343977 Spring

$12.99

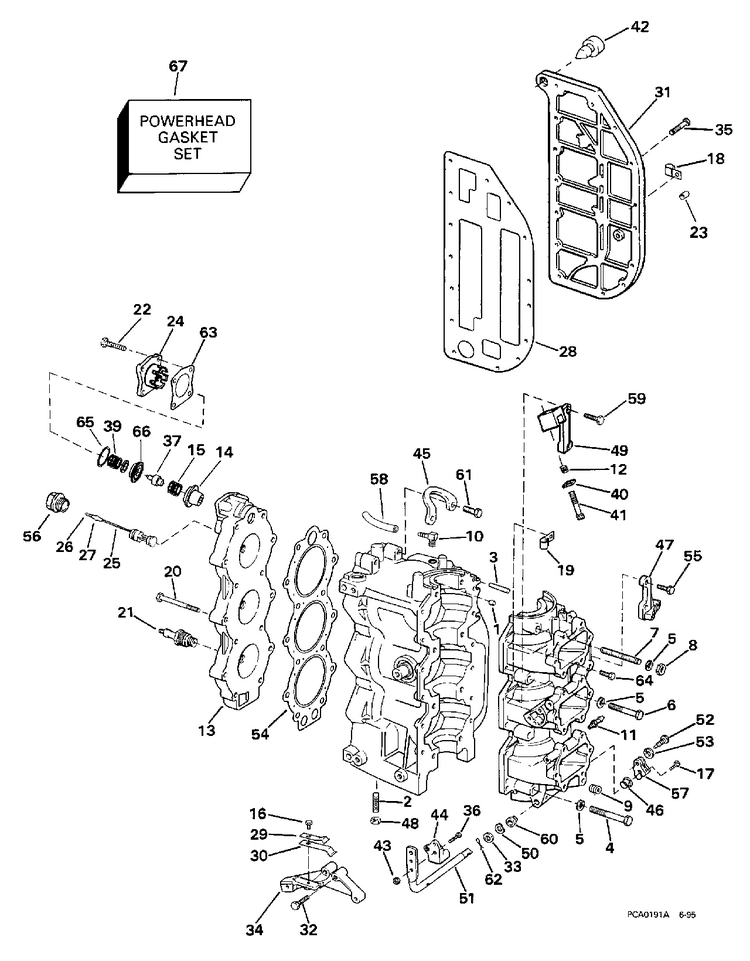

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 343977 Spring

Schematic Object Key : 39

Product Description: Spring

Category: JOHNSON / 1998 / 65 / SJ65RSYD 1998 / CYLINDER & CRANKCASE

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
0438918 0438918 Cylinder crankcase assy.
1 0304178 Pin, dowel
2 0314616 Stud
3 0305070 Axe, carter moteur vers bloc
4 0307776 Screw, lower main bearing
5 0300343 Washer, crankcase to cylinder
6 0131794 Screw, crankcase to cylinder
7 0313538 Stud, crankcase to cylinder
8 0320372 Locknut, crankcase to cylinder
9 0321164 Plug
10 0331894 Elbow
11 0303492 Fitting, crankcase
12 0308993 Ressort, friction d'accélération
13 0339288 Cylinder head
14 0336178 Housing, thermostat
15 0336179 Spring
16 0312241 Screw, electrical bracket
17 0317581 Screw, actuator cam
18 0330151 Cable clamp, filter
19 0330151 Cable clamp, filter
20 0322323 Screw
21 0432424 Spark plug , ql16v
21 0389471 Spark plug, champion l78
22 0306049 Screw
23 0321164 Plug
24 0343141 Cover, thermostat
25 0584589 Temperature switch
26 0512947 Terminal, bullet
27 0513185 Sleeve
28 0343863 Gasket, exhaust manifold
29 0330212 Spring, shift detent
30 0330913 Spring, shift detent
31 0343864 Cover, exhaust manifold
32 0308728 Screw
33 0202026 Washer, rod
34 0329223 Bracket, detent spring
35 0308743 Screw, injector to manifold
36 0328693 Screw, bracket to bracket
37 0436195 Thermostat
39 0343977 Spring
40 0203688 Nut
41 0306337 Screw, adjustment
42 0314021 Bumber, exhaust manifold
43 0121470 Locknut, hook bolt to cross bar
44 0329230 Shift detent
45 0332908 Lift bracket
46 0330967 Bushing, shift lever
47 0318366 Bracket, fuel pump
48 0316355 But, carburetor mounting
49 0330814 Bracket, adjustment
50 0306012 Bow washer
51 0329229 Shift lever
52 0327590 Pin, shift lever
53 0302290 Washer
54 0329836 Gasket, cylinder head
55 0314951 Screen, mfld. to c'case
56 0329562 Cache, interrupteur
57 0326642 Lever, shift rod
58 HOSE, Indicator
59 0331025 Screw This part replaces 0308751.
60 0318951 Bushing, shift lever to c'case
61 0306322 Bolt, water pump
62 0552906 Cotter pin, upper pivot
63 0329830 Gasket, cover
64 0306049 Screw
65 0336185 Washer
66 0435957 Diaphragm
67 0438904 Powerhead gasket set
