EVINRUDE-JOHNSON 344704 Shift Lever

Write a Review
$48.99
SKU:
344704
Schematic Object Key:
45

EVINRUDE-JOHNSON 344704 Shift Lever

$48.99

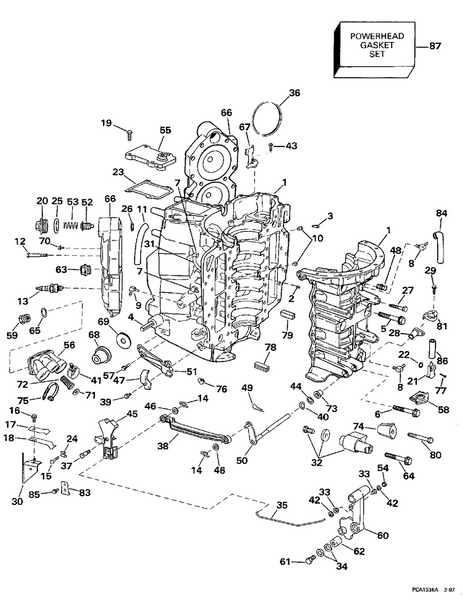

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 344704 Shift Lever

Schematic Object Key : 45

Replacement: This part (344704) replaces 0342983.

Product Description: Shift Lever

Category: JOHNSON / 1997 / 105 / SJ105RWYP 1997 / CYLINDER & CRANKCASE

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0438921 Cylinder c'case assy.
2 0304178 Pin, dowel
3 0305070 Axe, carter moteur vers bloc
4 0336630 Goupille, cylindrique
5 0336166 Screw, c c to block
6 0335611 Screw, cyl to case, long
7 0335369 Fitting, drain
8 0335369 Fitting, drain
9 0437784 Ens. clapet anti retour
10 0437773 Check valve
11 HOSE, Vent, 13 in. (330mm)
12 0306500 Screw, belt retainer
13 0437929 Bougie, champion, ql78yc
14 0333774 Attache, commande vers tringlerie de sens de marche
15 0328731 Screw, battery cable clamp
16 0328731 Screw, battery cable clamp
17 0330212 Spring, shift detent
18 0330913 Spring, shift detent
19 0328744 Screw, clamp 1 4 20 x .75
20 0338632 Thermostat cover
21 0340767 Fitting, lower drain
22 0324677 O ring, valve core, upper
23 0350357 Gasket, base plate This part replaces 0342291.
24 0328456 Clamp
25 0331188 O ring
26 0335981 Seal, t stat cylinder head to c c
27 0328744 Screw, clamp 1 4 20 x .75
28 0330935 Bague, retenue de la tige du levier de sens de marche
29 0328725 Screw, cover to gearcase
30 0344749 Bracket, shift detent This part replaces 0342794.
31 HOSE, Drain system
32 0436853 Kit, rubber mount assy., upper
33 0314125 Bushing, shift handle linkage rod
34 0327400 Rondelle, poignée de commande de sens de marche
35 0342997 Shift rod
36 0335523 O ring, cylinder head
37 0334238 Screw, shift detent lever
38 0343118 Liaison, levier vers bras de commande de sens de marche
39 0328725 Screw, cover to gearcase
40 0306012 Bow washer
41 0336136 Clamp
42 0328703 Washer, screw hook This part replaces 0304051.
43 0316195 Screw
44 0202026 Washer, rod
45 0344704 Shift lever This part replaces 0342983.
46 0328702 Washer
47 0349060 Cache, tourillon This part replaces 0335528.
48 0303492 Fitting, crankcase
49 0330941 Pin, retainer
50 5000470 Shift shaft arm assy This part replaces 0436822.
51 0349061 Tourillon This part replaces 0340761.
52 0435491 Thermostat
53 0338174 Ressort, thermostat
54 0313022 Locknut, double ended bolt
55 0342293 Plate, cover
56 0437223 Grommet insert, exhaust relief
57 0328744 Screw, clamp 1 4 20 x .75
58 0335316 Joint, tige de commande de sens de marche
59 0436857 Bouchon gicleur, indicateur d'éjection
60 0340532 Handle, shift
61 0329885 Screw, shift handle mount
62 0334815 Bague de la poignée de commande de sens de marche
63 0342923 Cover, cylinder block
64 0344277 Screw, upper mount This part replaces 0343024.
65 0301967 O ring
66 0342795 Cylinder head
67 0337478 Guide, fils du stator
68 0349557 Mount This part replaces 0328584.
69 0349556 Washer This part replaces 0329749.
70 0332135 Plug
71 0315189 Gasket, oil indicator
72 0341689 Filetr, overboard
73 0335521 Bague, levier de sens de marche vers bloc
74 0360761 Retainer, upper mount This part replaces 0340418.
75 0320107 Tie strap
76 0335253 Grommet, shift rod to trunnion
77 0328649 Screw, bowl to body
78 0335500 Joint, tribord
79 0335499 Joint d'étanchéité, bâbord
80 0330263 Screw, upper mount retention
81 0433817 Ensemble levier, tige de commande de sens de marche
83 0328059 Clamp, cable to trunnion
84 HOSE, Upper main to c'case vent nipple, 9 1/2 in. (242mm)
85 0332191 Screw, air intake
86 HOSE, Lower main drain to stbd. bal. tube, 15 in. (381mm)
87 0439559 Jeu de joints de bloc moteur This part replaces 0437779.
