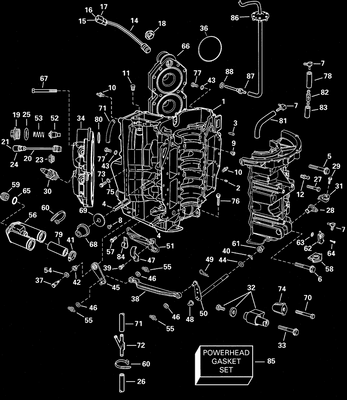

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 88
Product Description: Gasket, Exhaust Fitting
Category: EVINRUDE / 2001 / 115 / RE115FSSIF FFI, elec start, TNT, 20 in shaft, wht 2001 / CYLINDER & CRANKCASE
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
1 | 5004929 | Cylinder crankcase assy | |
2 | 0304178 | Pin, dowel | |
3 | 0305070 | Axe, carter moteur vers bloc | |
4 | 0336630 | Goupille, cylindrique | |
5 | 0336166 | Screw, c c to block | |
6 | 0335611 | Screw, cyl to case, long | |
7 | 0335369 | Fitting, drain | |
8 | 0343929 | Screw, emission | |
9 | 0437773 | Check valve | |
10 | 0303492 | Fitting, crankcase | |
11 | 0332135 | Plug | |
0343929 | *SCREW, Emission | (Not Shown.) | This part replaces 0343928. | |
12 | 0303492 | Fitting, crankcase | |
14 | 3010674 | Engine temperature sensor | |
15 | 0514697 | Lock wedge, 2 pin | |
16 | 0514679 | Borne, broche | |
17 | 0514696 | Connector, 2 pin receptacle | |
18 | 0329562 | Cache, interrupteur | |
19 | 0338632 | Thermostat cover | |
20 | 0585184 | Interrupteur thermostatique, tribord | |
21 | 0511469 | Terminal, pin | |
23 | 0329562 | Cache, interrupteur | |
24 | 0513357 | Connector, 1 pin receptacle | |
25 | 0331188 | O ring included in powerhead gasket set. | |
26 | HOSE, Tee to block, 2 in. (50mm) | (Cut to Length from P/N 333341.) | ||
27 | 0328744 | Screw, clamp 1 4 20 x .75 | |
28 | 0330935 | Bague, retenue de la tige du levier de sens de marche | |
29 | 0328725 | Screw, cover to gearcase | |
30 | 5001211 | Spark plug, champion xc12pepb | |
31 | 0433817 | Ensemble levier, tige de commande de sens de marche | |
32 | 5004323 | Kit, rubber mount assy., upper | |
33 | 0352662 | Screw, upper mount | This part replaces 0348449. |
34 | 5001481 | Cylinder head, stbd. 75hp 90hp. | |
34 | 5001560 | Cylinder head, sbbd. 115hp. | |
35 | 0328724 | Screw | |
36 | 0335523 | O ring, cylinder head included in powerhead gasket set. | |
37 | 0330933 | Screw, reverse lock link | |
38 | 0343118 | Liaison, levier vers bras de commande de sens de marche | |
39 | 0328725 | Screw, cover to gearcase | |
40 | 0306012 | Bow washer | |
41 | 0336136 | Clamp | |
42 | 0311015 | Bushing, pawl | |
43 | 0328701 | Lockwasher, double ended bolt | |
44 | 0202026 | Washer, rod | |
45 | 0436902 | Levier de sens de marche | |
46 | 0328702 | Washer | |
47 | 0349060 | Cache, tourillon | |
48 | 0340734 | Bushing, shift arm | |
49 | 0330941 | Pin, retainer | |
50 | 5000470 | Shift shaft arm assy | |
51 | 0349061 | Tourillon | |
52 | 0435491 | Thermostat | |
53 | 0338174 | Ressort, thermostat | |
54 | 0328733 | Rondelle, ressort | |
55 | 0333774 | Attache, commande vers tringlerie de sens de marche | |
56 | 0439953 | Bague insert, détente d'échappement | |
57 | 0328744 | Screw, clamp 1 4 20 x .75 | |
58 | 0335316 | Joint, tige de commande de sens de marche | |
59 | 0436857 | Bouchon gicleur, indicateur d'éjection | |
60 | 0320107 | Tie strap | |
61 | 0335521 | Bague, levier de sens de marche vers bloc | |
62 | 0343881 | Nipple, lower drain | |
63 | 0324677 | O ring, valve core, upper | |
64 | 0328649 | Screw, bowl to body | |
64 | 0329513 | Screw, float bowl | |
65 | 0301967 | O ring | |
66 | 5001480 | Cylinder head, port 75hp 90hp. | |
66 | 5001559 | Cylinder head, port 115hp. | |
67 | 0339066 | Screw, cylinder head | |
68 | 0349557 | Mount | This part replaces 0328584. |
69 | 0349556 | Washer | This part replaces 0329749. |
70 | 0352662 | Screw, upper mount | This part replaces 0348449. |
71 | HOSE, Cylinder block vent to tee, 16 in. (406mm) | Cut to length from PN 327228 | ||
72 | 0330474 | 30 tee, water return hoses | |
73 | 0328724 | Screw | |
74 | 0360761 | Retainer, upper mount | This part replaces 0340418. |
75 | 0328701 | Lockwasher, double ended bolt | |
76 | 0319126 | Screw, muffler, upper | |
77 | 0328724 | Screw | |
78 | HOSE, Upper bearing vent to check valve, 6 in. (152mm) | Cut to length from PN 340848 | ||
79 | 0343398 | Flexible, bague de silencieux vers bloc | |
80 | 0335981 | Seal, t stat cylinder head to c c | |
81 | HOSE, Upper stbd. brg. vent to stbd. intake mfld., 9 in. (229mm) | Cut to length from PN 340848 | ||
82 | 0434927 | Check valve assy. | |
83 | HOSE, Lower bearing vent to check valve, 4 1/2 in. (114mm) | Cut to length from PN 327228 | ||
84 | 0345537 | Clamp, fuel tube assy | |
85 | 0787129 | Powerhead gasket set | |
86 | 5001301 | Diaphragm hose assy, exhaust | |
87 | 5001551 | Fitting, exhaust pressure | This part replaces 5001297. |
88 | 0346527 | Gasket, exhaust fitting |
