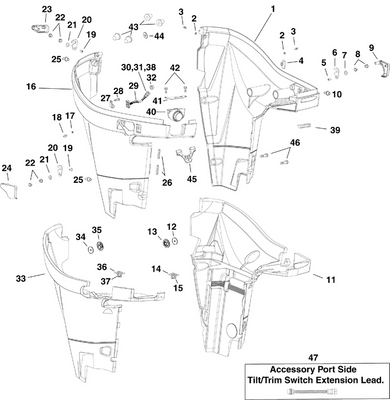

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 28
Product Description: Foam Barrier, Center - Stbd
Category: EVINRUDE / 2004 / 200 / E200FCXSRB / LOWER ENGINE COVER
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
1 | 5004979 | Cover, lower assy port blue engine cover. | |
1 | 5004997 | Cover, lower assy port white engine cover. | |
2 | 0307256 | Fitting, lubrication | |
3 | 0308532 | Bague, levier de verrouillage | |
4 | 0309485 | Ecrou, vis, rotule | |
5 | 0330234 | Bow washer | |
6 | 0330651 | Bumper | |
7 | 0337784 | Hook, latch | |
8 | 0339575 | Screw, ball joint | |
9 | 0341240 | Grommet, trim and tilt leads | |
10 | 0342191 | Screw, cam | |
11 | 0349434 | Foam barrier, front port | |
12 | 0349438 | Foam barrier, center port | |
13 | 0349649 | Foam barrier, rear port | |
14 | 0435026 | Latch handle | |
15 | 5004576 | Ensemble soupape | |
16 | 5004980 | Cover, lower assy stbd blue engine cover. | |
16 | 5004998 | Cover, lower assy stbd white engine cover. | |
17 | 0202893 | "o" ring, drive shaft | |
18 | 0307256 | Fitting, lubrication | |
19 | 0308532 | Bague, levier de verrouillage | |
20 | 0309485 | Ecrou, vis, rotule | |
21 | 0330234 | Bow washer | |
22 | 0337784 | Hook, latch | |
23 | 0339575 | Screw, ball joint | |
24 | 0341015 | Seal, upper | |
25 | 0331018 | Joint, capot moteur | This part replaces 0341016. |
26 | 0342191 | Screw, cam | |
27 | 0349435 | Foam barrier. front stbd | |
28 | 0349439 | Foam barrier, center stbd | |
29 | 0349650 | Foam barrier, rear stbd | |
30 | 0435026 | Latch handle | |
31 | 0436048 | Check valve assy | |
32 | 0586074 | Switch, trim tilt | |
33 | 0514679 | Borne, broche | |
34 | 0514686 | Connecteur, 3 broches | |
35 | 0514682 | Lock wedge, 3 pin | |
36 | 0334656 | Nut | |
37 | 5004576 | Ensemble soupape | |
38 | 0436726 | Indicator plug, overboard water | |
39 | 0301967 | O ring | |
40 | 0345586 | Grommet assy | |
41 | 0349759 | Clamp, 31,6 mm | |
42 | 0349729 | Clamp, 41.0mm | |
43 | 0337574 | Screw, air silencer | |
44 | 0325115 | Screw | |
45 | 0349556 | Washer | |
46 | 0349557 | Mount | |
47 | 0308743 | Screw, injector to manifold | |
48 | 0342290 | Grommet, control cable entry | |
49 | 0341099 | Bracket, grommet |
