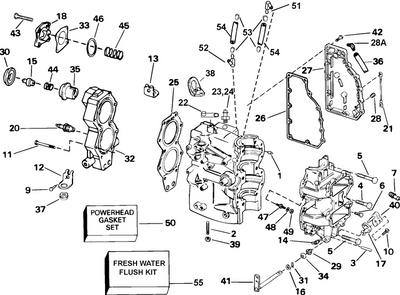

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 22
Product Description: Cap, Flush Fitting
Category: JOHNSON / 2005 / 55 / J55MLSOR / CYLINDER & CRANKCASE
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
1 | 0304178 | Pin, dowel | |
2 | 0314616 | Stud | |
3 | 0305070 | Axe, carter moteur vers bloc | |
4 | 0308747 | Screw, crankcase to cylinder | |
5 | 0308752 | Screw, main brg. upper lower | |
6 | 0308742 | Screw, crankcase to cylinder | |
7 | 0303492 | Fitting, crankcase | |
9 | 0306539 | Bolt, distributor | |
10 | 0328695 | Clamp, engine cable | |
11 | 0322323 | Screw | |
12 | 0337504 | Bracket, cyl. head to lower cover, starboard | |
13 | 0337503 | Bracket, cyl. head to lower cover, port | |
14 | 0319253 | Fitting, c c lubrication | |
15 | 0436195 | Thermostat | |
16 | 0202026 | Washer, rod | |
17 | 0331765 | Bushing rod keeper | |
18 | 0343141 | Cover, thermostat | |
20 | 0432424 | Spark plug , ql16v radio noise suppression spark plug | |
20 | 0502894 | Spark plug, champion, l16v optional | This part replaces 0433627. |
21 | 0584472 | Bonding lead | |
22 | 0349785 | Cap, flush fitting | |
23 | 0322567 | Fitting, flush | |
24 | 0349774 | Valve, fitting | |
25 | 0335359 | Gasket, cylinder head | |
26 | 0325211 | Gasket | |
27 | 5004666 | Cover plug ay, water passage | |
28 | 0321164 | Plug | |
28A | 0306266 | Elbow | |
29 | 0312708 | Bushing | |
30 | 0435957 | Diaphragm | |
31 | 0330941 | Pin, retainer | |
32 | 0340101 | Cylinder head | |
33 | 0329830 | Gasket, cover | |
34 | 0306012 | Bow washer | |
35 | 0336178 | Housing, thermostat | |
36 | HOSE, Indicator, 18-3/4 in. (480mm) | Cut to Length from P/N 310828 | ||
37 | 0337505 | Grommet, bracket | |
38 | 0326023 | Lift bracket | |
39 | 0316355 | But, carburetor mounting | |
40 | 0396831 | Lever shift rod | |
41 | 0396832 | Shift lever | |
42 | 0318178 | Screw, clamp | |
43 | 0306049 | Screw | |
44 | 0336179 | Spring | |
45 | 0343977 | Spring | |
46 | 0336185 | Washer | |
47 | 0330143 | Stud, ground | |
48 | 0328701 | Lockwasher, double ended bolt | |
49 | 0328740 | Nut, throttle friction | |
50 | 0439083 | Powerhead gasket set | |
51 | 0322706 | Nipple, fuel | |
52 | 0322076 | Exh hsg, outer, long | |
53 | 0346931 | Clamp, 14mm | |
54 | HOSE, Drain fitting to valve | Cut to Length from P/N 331683 | ||
55 | 5004655 | Flush kit |
