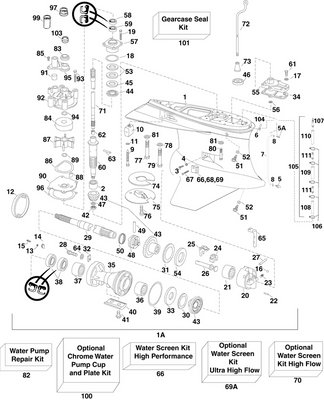

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 75
Product Description: Screen, Wtr Intake-Port
Category: EVINRUDE / 2004 / 135 / E135FCXSRM / GEARCASE - CX MODELS
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
5009368 | GEARCASE Assembly, Complete | Painted WHITE | This part replaces 5005550. | |
1 | 5001589 | Gearcase bearing assy | |
2 | 0387817 | Bearing, pinion | |
3 | 0324852 | Retaining screw seal | |
4 | 0332584 | Washer, seal ring | |
5 | 0341219 | Screw, anode | |
6 | 0436745 | Anode | |
7 | 0307161 | Lock washer, anode | |
8 | 0336535 | Fitting, pitot tube | |
9 | 0305749 | Cap, nipple | |
10 | 0341220 | Screw, pitot seal | |
11 | 0437330 | Rondelle joint, tube de pitot contents of gearcase seal kit. | |
12 | 0346462 | Ring, propeller seal | |
13 | 0439476 | Bearing housing seal | |
14 | 0329922 | Joint, supérieur contents of gearcase seal kit. | |
15 | 0329923 | Joint, inférieur contents of gearcase seal kit. | |
16 | 0313447 | Thrust washer | |
17 | 0317624 | Screw, driveshaft hsg | |
18 | 5001602 | Bearing hsg assy, rev gear | |
19 | 0389039 | Bearing, forward gear | |
20 | 0331880 | Pin, housing to gearcase | |
21 | 0347378 | Detent, shift | |
22 | 0911962 | Spring | |
23 | 0334163 | Cradle, shifter | |
24 | 0322938 | Lever, shift | |
25 | 0348484 | Shaft, shift | |
26 | 0328825 | Pin, shift lever | |
27 | 0354731 | O ring contents of gearcase seal kit. | This part replaces 0314728. |
28 | 5001578 | Propeller shaft | |
29 | 0382408 | Thrust bearing | |
30 | 0389042 | Thrust bearing assembly, foward gear | |
31 | 5000249 | Clutch shaft assy | |
32 | 5005096 | Kit, clutch shaft retainer | |
33 | 0327656 | Rondelle de butée, arbre d'entraînement | |
34 | 0352165 | Gasket, shift rod cover contents of gearcase seal kit. | This part replaces 0324670. |
35 | 5001588 | Bearing hsg assy, propshaft | |
36 | 0431926 | Needle bearing assembly, front | |
37 | 0436752 | Bearing, propshaft | |
38 | 0334950 | Seal contents of gearcase seal kit. | |
39 | 0326849 | O ring, propshaft housing contents of gearcase seal kit. | |
40 | 0431708 | Anode, bearing housing | |
41 | 0908158 | Screw, anode | |
42 | 0916070 | Screw, wedge | |
43 | 0349001 | Wedge | |
44 | 0345998 | Spring washer | |
45 | 0327669 | Thrust washer, forward gear | |
46 | 0314730 | Nut, pinion to driveshaft | |
47 | 0350038 | Washer, pinion nut | |
48 | 0323362 | Cale, 0,003" 0,07 mm | |
48 | 0323361 | Cale, 0,004" 0,10 mm | |
48 | 0314745 | Cale, 0,005" 0,12 mm | |
49 | 5001586 | Gear set assy | This part replaces 5004995. |
50 | 0338717 | Shim, 0.003 in. 0,07mm | |
50 | 0338718 | Shim, 0.004 in. 0,10mm | |
50 | 0338719 | Shim, 0.005 in. 0,12mm | |
51 | 0385043 | Thrust bearing assy. | |
52 | 0389039 | Bearing, forward gear | |
53 | 0338716 | Set screw | |
54 | 0333885 | Housing, bearing | |
55 | 0337796 | Thrust flange | |
56 | 5001585 | Gear set, fwd, rev, pinion | |
57 | 5006241 | Couvercle joint, tige de commande de sens de marche | This part replaces 5004598. |
58 | 0318372 | "o" ring, shift rod contents of gearcase seal kit. | |
59 | 0302325 | Screw, impeller housing | |
60 | 0160084 | Ball | |
61 | 0356900 | Driveshaft, lower | This part replaces 0347371. |
62 | 0313448 | Pin, clutch dog | |
63 | 0324369 | Spring, clutch dog pin | |
64 | 0318544 | Screw, fill drain contents of gearcase seal kit. | |
65 | 0311598 | Seal | |
66 | 0321122 | Spacer, shift rod | |
67 | 0387656 | Butée, arbre d'entraînement | |
68 | 0337774 | Shifter, clutch dog | |
69 | 0328702 | Washer | |
70 | 0333957 | Languette, de retenue | |
71 | 0328743 | Rondelle | |
72 | 0350271 | Screw | |
73 | 5005063 | Water screen kit, high flow | |
74 | 0337061 | Screw, water intake screens | |
75 | 0350264 | Screen, wtr intake port | |
76 | 0350265 | Screen, wtr intake stbd | |
77 | 5005124 | Water screen kit, high perf. | |
78 | 0347391 | Shift rod | |
79 | 5000624 | Driveshaft assembly, upper | |
80 | 0311538 | Roll pin, driveshaft | |
81 | 0338504 | Retainer, driveshaft | |
82 | 0330265 | Washer | |
83 | 0331998 | Screw, gearcase to housing | |
84 | 0331999 | Screw, gearcase housing | |
85 | 0330263 | Screw, upper mount retention | |
86 | 0330266 | Washer, trail lock lever | |
87 | 0313715 | Screw, cap, hex hd, 7 16 14 x 1 | |
88 | 0338743 | Trim tab | |
89 | 0331409 | Seal, trim tab | |
90 | 5001595 | Water pump repair kit | |
91 | 0338484 | Gasket, imp. hsg. plate contents of gearcase seal kit. | |
92 | 0338485 | Plate, impeller | |
93 | 0338486 | Coupelle, turbine inox | |
94 | 0306643 | Screw | |
95 | 0320943 | Bague, pompe vers carter d'échap. | |
96 | 0314008 | Bague, tube à eau vers capot | |
97 | 0331353 | Seal, impeller housing plate. | |
98 | 5001593 | Impeller assembly | |
99 | 0331107 | Clavette, turbine | |
100 | 0302035 | "o" ring, spacer to imp. hsg. | |
101 | 0338893 | Capot, carter de turbine | |
102 | 0302325 | Screw, impeller housing | |
103 | 0338601 | Grommet, sleeve to exh hsg | |
106 | 0331188 | O ring | |
107 | 0321008 | Grommet, exh hsg to shift rod | |
108 | 0435526 | Chrome cup plate kit | |
110 | 0313926 | Propeller hub sleeve | |
111 | 0175401 | Bushing assy, prop, sst | |
111 | 0387157 | Bushing assy, prop, std | |
112 | 0320570 | Spacer, nut | |
113 | 0126870 | Bague, de butée | |
115 | 0306394 | Cotter pin | |
117 | 0350228 | Retainer, ring |
