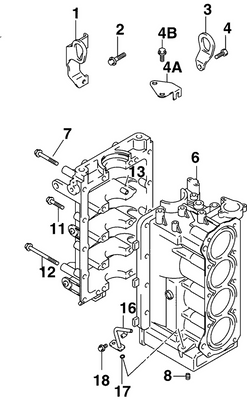

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 2
Product Description: Hook, Latch-Port
Category: EVINRUDE / AG Models / 40 / E40DRMLAGA / 01-2_ENGINE COVER (DR)
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
1 | 0285739 | Engine cover assembly, blue includes decals, except "hp" decal | |
1 | 0285738 | Engine cover assembly, blue includes decals, except "hp" decal | |
1 | 0285740 | Engine cover assembly, white includes decals, except "hp" decal | |
1 | 0285804 | Engine cover assembly, black includes decals | |
2 | 0350665 | Hook, latch port | |
3 | 0350664 | Hook, latch starboard | |
4 | 0350667 | Seal | |
5 | 0350668 | Insulation, sound dp, ds, dt models | |
5 | 0351127 | Insulation, sound dr models | |
6 | 0350966 | Bracket, latch | |
7 | 0351033 | Screw, bracket | |
NS | 0351993 | Seal, rear edge guard dr models |
