EVINRUDE-JOHNSON 351145 Spring, T-Stat Cover To T-Stat

Write a Review
$9.46
SKU:
351145
Schematic Object Key:
39

EVINRUDE-JOHNSON 351145 Spring, T-Stat Cover To T-Stat

$9.46

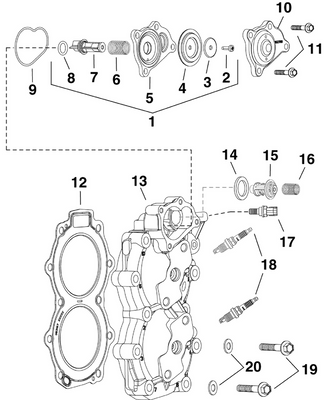

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 351145 Spring, T-Stat Cover To T-Stat

Schematic Object Key : 39

Product Description: Spring, T-Stat Cover To T-Stat

Category: EVINRUDE / 2010 / 200 - (60° V6, 2.6 L) / E200DSLISB / CYLINDER & CRANKCASE

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 5007436 Cylinder crankcase assembly 150 175 hp
1 5007437 Cylinder crankcase assembly 200 hp
2 0331880 Pin, housing to gearcase
3 0336166 Screw, c c to block
4 0346137 Fitting, cylinder oil inlet see "oil recirculation hoses"
5 0314513 Fitting, fuel inlet see "oil recirculation hoses"
6 0305070 Axe, carter moteur vers bloc
7 0304178 Pin, dowel
8 0344821 Fitting, crankcase oil inlet
9 0323372 Fitting, water cover
10 5001298 Fittting, exhaust back pressure
11 0437773 Check valve
12 0435681 Check valve assembly
13 0348471 Fitting, oil recirculation elbow see "oil recirculation hoses"
14 0336630 Goupille, cylindrique
15 0332135 Plug
16 0332135 Plug
17 0323372 Fitting, water cover
18 0346237 Dam, c c water
19 0351971 Nipple, water valve hose
20 0352415 Hose, exh back pressure to emm
21 0353038 Restrictor, 0.013
22 0320107 Tie strap
23 0339277 Clamp,wire .500
24 0324334 Screw
25 0349556 Washer
26 0349557 Mount
27 0351970 Gasket, water cover
28 0352812 Cover, water
29 0350458 Screw, hook to latch bracket
30 5006393 Head, cylinder head starboard
31 0351971 Nipple, water valve hose
32 5006385 Head, cylinder head port
33 0351971 Nipple, water valve hose
34 0335523 O ring, cylinder head included in cyl crankcase gasket seal kit
35 0361609 Screw, cylinder head This part replaces 0351081.
36 5007419 Spark plug refer to emissions control information label
37 0338632 Thermostat cover
38 0331188 O ring included in cyl crankcase gasket seal kit
39 0351145 Spring, t stat cover to t stat
40 5005440 Thermostat
41 0339044 Gasket included in cyl crankcase gasket seal kit
42 0335981 Seal, t stat cylinder head to c c included in cyl crankcase gasket seal kit
43 0328724 Screw
44 0329217 Screw, retainer
45 0328701 Lockwasher, double ended bolt
46 0348737 Clamp
47 0335200 Bonding lead
48 0310439 Clamp, battery cable
49 0344044 Clamp, cable to c c
50 0329217 Screw, retainer
51 0351847 Clamp, electrical harness starboard
52 0352667 Clamp, capacitor
53 0351458 Gasket, c c to adapter included in cyl crankcase gasket seal kit
