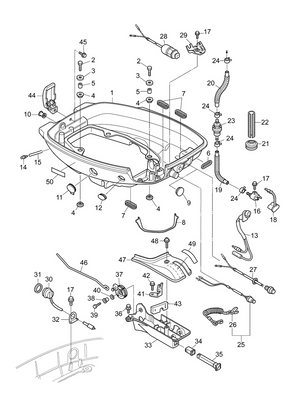

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 19
Product Description: Nipple, Water Valve Hose
Category: EVINRUDE / 2010 / 200 - (60° V6, 2.6 L) / E200DSLISB / CYLINDER & CRANKCASE
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
1 | 5007436 | Cylinder crankcase assembly 150 175 hp | |
1 | 5007437 | Cylinder crankcase assembly 200 hp | |
2 | 0331880 | Pin, housing to gearcase | |
3 | 0336166 | Screw, c c to block | |
4 | 0346137 | Fitting, cylinder oil inlet see "oil recirculation hoses" | |
5 | 0314513 | Fitting, fuel inlet see "oil recirculation hoses" | |
6 | 0305070 | Axe, carter moteur vers bloc | |
7 | 0304178 | Pin, dowel | |
8 | 0344821 | Fitting, crankcase oil inlet | |
9 | 0323372 | Fitting, water cover | |
10 | 5001298 | Fittting, exhaust back pressure | |
11 | 0437773 | Check valve | |
12 | 0435681 | Check valve assembly | |
13 | 0348471 | Fitting, oil recirculation elbow see "oil recirculation hoses" | |
14 | 0336630 | Goupille, cylindrique | |
15 | 0332135 | Plug | |
16 | 0332135 | Plug | |
17 | 0323372 | Fitting, water cover | |
18 | 0346237 | Dam, c c water | |
19 | 0351971 | Nipple, water valve hose | |
20 | 0352415 | Hose, exh back pressure to emm | |
21 | 0353038 | Restrictor, 0.013 | |
22 | 0320107 | Tie strap | |
23 | 0339277 | Clamp,wire .500 | |
24 | 0324334 | Screw | |
25 | 0349556 | Washer | |
26 | 0349557 | Mount | |
27 | 0351970 | Gasket, water cover | |
28 | 0352812 | Cover, water | |
29 | 0350458 | Screw, hook to latch bracket | |
30 | 5006393 | Head, cylinder head starboard | |
31 | 0351971 | Nipple, water valve hose | |
32 | 5006385 | Head, cylinder head port | |
33 | 0351971 | Nipple, water valve hose | |
34 | 0335523 | O ring, cylinder head included in cyl crankcase gasket seal kit | |
35 | 0361609 | Screw, cylinder head | This part replaces 0351081. |
36 | 5007419 | Spark plug refer to emissions control information label | |
37 | 0338632 | Thermostat cover | |
38 | 0331188 | O ring included in cyl crankcase gasket seal kit | |
39 | 0351145 | Spring, t stat cover to t stat | |
40 | 5005440 | Thermostat | |
41 | 0339044 | Gasket included in cyl crankcase gasket seal kit | |
42 | 0335981 | Seal, t stat cylinder head to c c included in cyl crankcase gasket seal kit | |
43 | 0328724 | Screw | |
44 | 0329217 | Screw, retainer | |
45 | 0328701 | Lockwasher, double ended bolt | |
46 | 0348737 | Clamp | |
47 | 0335200 | Bonding lead | |
48 | 0310439 | Clamp, battery cable | |
49 | 0344044 | Clamp, cable to c c | |
50 | 0329217 | Screw, retainer | |
51 | 0351847 | Clamp, electrical harness starboard | |
52 | 0352667 | Clamp, capacitor | |
53 | 0351458 | Gasket, c c to adapter included in cyl crankcase gasket seal kit |
