EVINRUDE-JOHNSON 353480 Gear, Reverse | 225 Hp, Gear Ratio .58 (14/24)

Write a Review
$250.49
SKU:
353480
Schematic Object Key:
23

EVINRUDE-JOHNSON 353480 Gear, Reverse | 225 Hp, Gear Ratio .58 (14/24)

$250.49

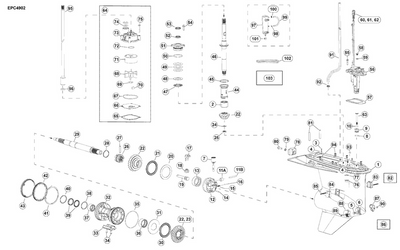

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 353480 Gear, Reverse | 225 Hp, Gear Ratio .58 (14/24)

Schematic Object Key : 23

Product Description: Gear, Reverse | 225 Hp, Gear Ratio .58 (14/24)

Category: EVINRUDE / 2009 / 225 / E225HSLSEC / GEARCASE

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
- 5007667 Gearcase assy, complete blue gear ratio .58 14 24
- 5007707 Gearcase assy, complete white gear ratio .58 14 24
- 5007959 Gearcase assy, complete smoke gear ratio .58 14 24
1 5007699 Gearcase bearing assembly
2 0387817 Bearing, pinion This part replaces 5007751.
3 0324852 Retaining screw seal
4 0332584 Washer, seal ring contents of gearcase seal kit
5 0336535 Fitting, pitot tube
6 0318544 Screw, fill drain contents of gearcase seal kit
7 0311598 Seal
8 5005124 Water screen kit, high perf.
- 0348479 Screen, wtr intake port
- 0348480 Screen, wtr intake stbd
- 0337061 Screw, water intake screens
8 5005063 Water screen kit, high flow
8 5006337 Water screen kit, ultra high flow
8 5011694 Water screen kit, ultra high flow 0.410 in This part replaces 5007081.
9 0353483 Detent, shifter
10 0328825 Pin, shift lever
11 0160084 Ball
12 0911962 Spring
13 5007652 Bearing housing assembly, forward gear
14 0389039 Bearing, forward gear
15 0331880 Pin, housing to gearcase
16 0322938 Lever, shift
17 0334163 Cradle, shifter
18 0353484 Shaft, shift
19 0327669 Thrust washer, forward gear
20 0389042 Thrust bearing assembly, foward gear
21 5009114 Gear set, forward, pinion gear ratio .54 14 26 This part replaces 5007663.
21 5007631 Gear set, fwd, pinion gear ratio .58 14 24
22 0350038 Washer, pinion nut
23 0353544 Gear, reverse gear ratio .54 14 26
23 0353480 Gear, reverse 225 hp, gear ratio .58 14 24
24 0337774 Shifter, clutch dog
25 0313448 Pin, clutch dog
26 0324369 Spring, clutch dog pin
27 5007643 Propeller shaft
28 0382408 Thrust bearing
29 0314731 Rondelle de butée, engrenage de marche arrière
30 5007637 Bearing housing assembly, propshaft
31 0305123 O ring contents of gearcase seal kit
32 0382407 Bearing assy, forward gear
33 0431708 Anode, bearing housing
34 0908158 Screw, anode
35 0436752 Bearing, propshaft
36 0334950 Seal contents of gearcase seal kit
37 0333957 Languette, de retenue
38 0328743 Rondelle
39 0350271 Screw
40 0314730 Nut, pinion to driveshaft
41 0345905 Driveshaft, lower
42 0387656 Butée, arbre d'entraînement
43 0327656 Rondelle de butée, arbre d'entraînement
44 0323362 Cale, 0,003" 0,07 mm
44 0323361 Cale, 0,004" 0,10 mm
44 0314745 Cale, 0,005" 0,12 mm
45 0354731 O ring contents of gearcase seal kit
46 0439476 Bearing housing seal
47 0329922 Joint, supérieur contents of gearcase seal kit
48 0329923 Joint, inférieur contents of gearcase seal kit
49 0317624 Screw, driveshaft hsg
50 0352165 Gasket, shift rod cover contents of gearcase seal kit
51 5006241 Couvercle joint, tige de commande de sens de marche
52 0318372 "o" ring, shift rod contents of gearcase seal kit
53 0328725 Screw, cover to gearcase
54 0321008 Grommet, exh hsg to shift rod
55 5007671 Driveshaft assembly, upper
55 5007672 Driveshaft assembly, upper
56 0338504 Retainer, driveshaft
57 0311538 Roll pin, driveshaft
58 0329864 Shift rod
58 0329865 Shift rod
59 0321122 Spacer, shift rod
60 0336284 Cover, trim tab opening
61 0313715 Screw, cap, hex hd, 7 16 14 x 1
62 0331999 Screw, gearcase housing
63 0330266 Washer, trail lock lever
64 0331998 Screw, gearcase to housing
65 0330265 Washer
66 0330263 Screw, upper mount retention
67 0436745 Anode
68 0307161 Lock washer, anode
69 0341219 Screw, anode
70 5007972 Water pump repair kit 3.4 l f suffix models
70 5001595 Water pump repair kit 3.3 l all, 3.4 l c or s suffix models
71 0338484 Gasket, imp. hsg. plate contents of gearcase seal kit
72 0338485 Plate, impeller
73 0331353 Seal, impeller housing plate.
74 5001593 Impeller assembly
75 0302035 "o" ring, spacer to imp. hsg.
76 0331107 Clavette, turbine
77 0338486 Coupelle, turbine inox
78 0331188 O ring
79 0360347 Housing, impeller 3.4 l f suffix models This part replaces 5007968.
79 0360347 Housing, impeller This part replaces 0435959.
80 0314008 Bague, tube à eau vers capot 3.3 l all, 3.4 l c or s suffix models
81 0346865 O ring, water tube 3.4 l f suffix models
82 0354578 Cover, impeller housing 3.4 l f suffix models
82 0338893 Capot, carter de turbine 3.3 l all, 3.4 l c or s suffix models
83 0302325 Screw, impeller housing
84 0306643 Screw
85 0320943 Bague, pompe vers carter d'échap.
86 0349354 Grommet, pump housing
87 0338601 Grommet, sleeve to exh hsg
88 0354580 Sleeve, extension 3.4 l f suffix models
88 0354580 Sleeve, extension This part replaces 0338636.
89 0435526 Chrome cup plate kit
- 0338551 Coupelle, turbine chrome
- 0338552 Plate, impeller
90 0126669 Renegade bass weed ring
91 5006373 Gearcase seal kit
