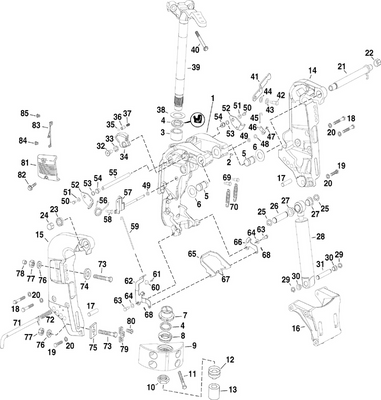

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 2
Product Description: Stern Bracket, Port
Category: EVINRUDE / 2010 / 25 / E25DRLISC / SWIVEL BRACKET - Manual Tilt
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
1 | 0353548 | Stern bracket, starboard | |
2 | 0353547 | Stern bracket, port | |
3 | 0351896 | Tilt tube | |
4 | 0319787 | Bushing | |
5 | 0319699 | Thrust washer, stern bracket | |
6 | 0335554 | Locknut, tilt tube | |
7 | 0317894 | Cap, tilt tube | |
8 | 5007080 | Swivel bracket | |
9 | 0313607 | Lube fitting | |
10 | 5009612 | Steering arm shaft assembly | This part replaces 5007182. |
11 | 0318295 | Thrust washer, upper | |
12 | 0330137 | Seal | |
13 | 0342914 | Bushing | |
14 | 0339489 | Bushing | |
15 | 0342397 | Friction block | |
16 | 0551113 | Ressort de friction de direction | |
17 | 0333676 | Screw, cover to gearcase | |
18 | 0338657 | Link, shallow water drive | |
19 | 0322945 | Pin, link shallow water drive | |
20 | 0322949 | Link, reverse lock | |
21 | 0319697 | Spring reverse lock | |
22 | 0322947 | Head assy. | |
23 | 0303887 | Washeer, pin to swivel bracket | |
24 | 0333774 | Attache, commande vers tringlerie de sens de marche | |
25 | 0322950 | Lever, reverse lock | |
26 | 0326943 | Pin, link to lock lever | |
27 | 0315078 | Spring, reverse lock | |
28 | 0319696 | Rod, reverse lock | |
29 | 0319695 | Bell crank | |
30 | 0319108 | Screw belcrank | |
31 | 0322946 | Spring, shallow water drive | |
32 | 0436897 | Lever shaft assembly, tilt lock | |
33 | 0328048 | Knob, tilt reverse lock lever | |
34 | 0319227 | Screw, knob | |
35 | 0342525 | Bushing, tilt lock shaft to swivel | |
36 | 0388661 | Cam shift assy., tilt lock | |
37 | 0437875 | Lock assembly, tilt starboard | |
38 | 0342507 | Pin, tilt lock to stern brackets | |
39 | 0303884 | Washer | |
40 | 0313990 | Ãcrou, support vers embarcation | |
41 | 0437876 | Lock assembly, tilt port | |
42 | 0436387 | Tilt pin | |
43 | 0357240 | Tie bar, stern bracket | This part replaces 0351247. |
44 | 0908158 | Screw, anode | |
45 | 0305650 | Cotter pin | |
46 | 0339992 | Carrying handle | |
47 | 0391421 | Clamp screw handle | |
47 | 0433675 | Clamp scr. hand. assy. | |
48 | 0302023 | Spring pin, handle | |
49 | 0337017 | Plate, swivel | |
50 | 0321922 | Screw, shoulder |
