EVINRUDE-JOHNSON 353897 Screw

Write a Review
$6.41
SKU:
353897
Schematic Object Key:
28

EVINRUDE-JOHNSON 353897 Screw

$6.41

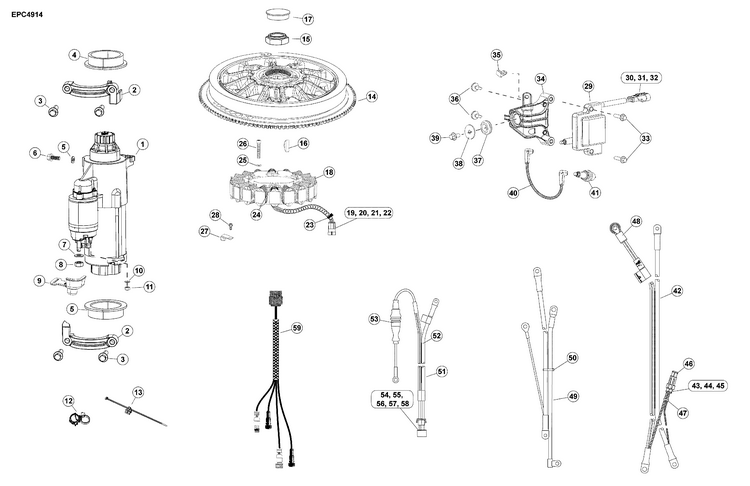

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 353897 Screw

Schematic Object Key : 28

Product Description: Screw

Category: EVINRUDE / AH Models / 200 - (G2, 74° V6, 3.4 L) / H200AXCAHA - (G2 74° V6, 3.4 L) / 02-2_ELECTRICAL & IGNITION

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0587485 Starter motor This part replaces 0587291.
2 0358912 Bracket, starter motor
3 0359272 Screw, crankcase cover m8 x 35 m8 x 35
4 0355427 Grommet, starter mounting
5 0356939 Washer, m6
6 0356534 Screw, battery ground to starter motor
7 0327283 Lockwasher
8 0356466 Nut, m8x1.25 starter cable to solenoid
9 0354321 Boot, starter cable
10 0327283 Lockwasher
11 0356234 Nut, m5 cable to starter solenoid
12 5009376 Clip tie strap starter cable to starter motor
13 5009141 Mount tie strap starter cable to crankcase
14 5011559 Flywheel assembly This part replaces 5008961.
15 0326042 Nut, flywheel
16 0307480 Key
17 0357323 Plug thread protector
18 0587245 Stator ay,switcher
19 3011401 Terminal, pin
20 3011167 Seal, wire 14 gauge
21 3011392 Connector
22 3011393 Seal
23 0320107 Tie strap
24 0317893 Tie strap
25 0360252 Washer stator screw This part replaces 0306311.
26 0343525 Screw, stator
27 0348737 Clamp
28 0353897 Screw
29 0587270 Ignition coil
30 3011148 Contact, tab
31 3011149 Seal, wire
32 3011156 Connector, 3 position
33 0359235 Screw, ignition coil to bracket m6x30
34 0356378 Bracket, ignition coil mounting
35 3011292 Clip, mounting ignition coil connector to bracket
36 0356491 Bumper, ignition coil mounting bracket
37 0329518 Grommet, esm mounting
38 0328700 Washer
39 0353897 Screw ignition coil bracket to fuel injector
40 5009414 Spark plug lead
41 5010806 Spark plug, champion qc8wepia champion qc8wepi This part replaces 5009521.
42 0587205 Battery cable, 10 ft. 3.0 m
42 0587301 Battery cable, 15 ft. 4.5 m
42 0587302 Battery cable, 20 ft. 6.0 m
43 3011153 Connecteur, fiche 2 positions
44 3011147 Contact, female receptacle
45 3011225 Seal, wire
46 3011154 Connector, 2 position plug
47 0320107 Tie strap
48 0322815 Cover
49 0587132 Cable assembly, starter to rigging center
50 0320107 Tie strap
51 5009079 Auxiliary battery charging kit optional accessory
52 0502359 Battery cable, 8 gauge bulk roll 50 ft. 15.24 m
53 0982019 Fuse, 50 amp
54 3011920 Connector, 3 position cap
55 3011919 Secondary lock
56 3010485 Terminal
57 3010023 Seal, wire
58 3011916 Plug, cavity
59 0587411 Cable assembly, "y" adapter idock models only. connects nmea remote control networks to idock module
