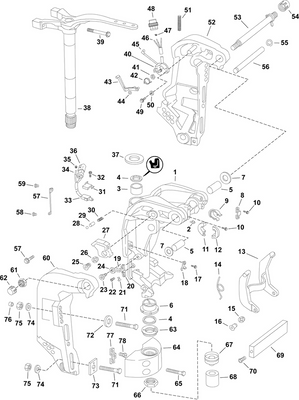

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 71
Product Description: Screw, Bracket Mount, 1/2 X 7 In.
Category: EVINRUDE / 2012 / 90 / E90DPLINC / SWIVEL BRACKET - DPL, DPX, DSL
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
1 | 0434691 | Support pivotant | |
1 | 0434724 | Support pivotant | |
2 | 0313607 | Lube fitting | |
3 | 0320962 | Bushing | |
4 | 0335686 | Joint | |
5 | 0337579 | Bushing, lower pivot shaft | |
6 | 0336819 | Bushing, lower pivot shaft | |
7 | 0910992 | Rondelle, tube de relevage | |
8 | 0513787 | Dispositif de retenue, interrupteur limiteur de relevage | |
9 | 0337591 | Cam, tilt limit switch | |
10 | 0328724 | Screw | |
11 | 0337592 | Collar, cam, tilt limit switch | |
12 | 0337593 | Collar, cam, tilt limit switch | |
13 | 0335470 | Arm, trail lock | |
14 | 0336210 | Spring, trail lock spring | |
15 | 0335701 | Bushing, trail lock lever | |
16 | 0335487 | Screw, trail lock lever | |
17 | 0342191 | Screw, cam | |
18 | 0336172 | Dispositif de retenue, bras transport sur remorque | |
19 | 0336853 | Attache, vis, dispositif de retenue | |
20 | 0336467 | Retainer, support | |
21 | 0335814 | Retainer, trail lock | |
22 | 0328724 | Screw | |
23 | 0335487 | Screw, trail lock lever | |
24 | 0335949 | Rouleau de butée | |
25 | 0335481 | Screw, tilt lever to bracket | |
26 | 0335486 | Bague, levier de relevage | |
27 | 0335485 | Lever, tilt lock | |
28 | 0336209 | Ball, detent, tilt lock | |
29 | 0334241 | Guide | |
30 | 0336230 | Ressort, dispositif de blocage, verrouillage de relevage | |
31 | 0336171 | Bracket, tilt limit switch | |
32 | 0328724 | Screw | |
33 | 0586786 | Switch assembly, tilt limit | |
34 | 3011148 | Contact, tab | |
35 | 3011225 | Seal, wire | |
36 | 3011154 | Connector, 2 position plug | |
37 | 0320866 | Rondelle de butée, arbre d'articulation | |
38 | 5001766 | Ensemble biellette de direction | |
38 | 5001825 | Ensemble biellette de direction | |
38 | 5001908 | Ensemble biellette de direction | |
39 | 0352662 | Screw, upper mount | |
40 | 0587146 | Sending unit assembly | |
41 | 0320689 | Ãcrou | |
42 | 0511528 | Spring | |
43 | 0342386 | Arm | |
44 | 0511527 | Retainer | |
45 | 0513871 | Borne, anneau | |
46 | 3011147 | Contact, female receptacle | |
47 | 3011149 | Seal, wire | |
48 | 3011155 | Connecteur, fiche 3 positions | |
49 | 0328744 | Screw, clamp 1 4 20 x .75 | |
50 | 0328702 | Washer | |
51 | 0513816 | Sleeve, motor cable sending unit | |
51 | 0513817 | Braided sleeve | |
51 | 0512258 | Gaine, tressée 3 16 x 32" | |
52 | 0351921 | Stern bracket, port | |
53 | 0435007 | Tilt tube assembly | |
54 | 0337586 | Ãcrou racleur | |
55 | 0336529 | Anneau de retenue, tige de correction d'assiette | |
56 | 0336525 | Rod, trim limiter | |
57 | 0584472 | Bonding lead | |
58 | 0328724 | Screw | |
59 | 0342191 | Screw, cam | |
60 | 0351922 | Stern bracket, starboard | |
61 | 0335554 | Locknut, tilt tube | |
62 | 0317894 | Cap, tilt tube | |
63 | 0327696 | Keeper, pivot shaft | |
64 | 0340006 | Bracket, mount | |
65 | 0338744 | Mount bracket | |
66 | 0334936 | Screw, mount | |
67 | 0320746 | Ãcrou, support de montage | |
67 | 0912233 | Dispositif de retenue, joint arbre d'articulation | |
68 | 0911312 | Joint, arbre d'articulation | |
69 | 5010190 | Anode kit | This part replaces 5007089. |
70 | 0324816 | Screw, anode | |
71 | 0318573 | 3.5" bolt | This part replaces 0327053. |
71 | 0318573 | 3.5" bolt | |
71 | 0363012 | Screw, bracket mounting | This part replaces 0336676. |
71 | 0331578 | Engine mount bolt 5 x 1 2 in. | |
71 | 0363011 | Screw, stern bracket mounting, 1 2 x 5.75 in. 146 mm | This part replaces 0354101. |
71 | 0354102 | Screw, bracket mount, 1 2 x 7 in. | |
71 | 0354103 | Screw, bracket mount, 1 2 x 8 in. | |
71 | 0354104 | Screw, bracket mount, 1 2 x 9 in. | |
72 | 0307238 | Rondelle | |
73 | 0318272 | Nut backing plate square 1 2 in. | |
74 | 0320248 | Rondelle, écrou | |
75 | 0363254 | Nut, stern bracket screw | This part replaces 0313623. |
76 | 0318572 | Bolt thread protective cap 1 2 in. | |
77 | 0318273 | Bolt hex retainer 1 2 in. | |
78 | 0319886 | Screw |
