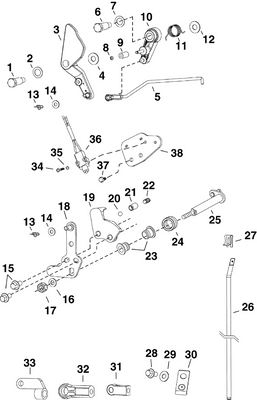

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 33
Product Description: Bracket, Neutral Switch To Block | Use On Serial Number 08750338 & Higher
Category: EVINRUDE / 2011 / 25 / E25DPSLIIS / THROTTLE & SHIFT LINKAGE
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
| Key | Part No. | Product Name | Additional_info |
|---|---|---|---|
| 1 | 0353592 | Screw, cam to intake | |
| 2 | 0553766 | Bow washer | |
| 3 | 5008208 | Throttle cam 15 hp | |
| 3 | 5006475 | Throttle cam | |
| 4 | 0908398 | Washer | |
| 5 | 5006478 | Link, cam to shaft tps | |
| 6 | 0353592 | Screw, cam to intake | |
| 7 | 0127386 | Rondelle | |
| 8 | 0324678 | O ring, valve core, lower | |
| 9 | 0432639 | Galet, contre came | |
| 10 | 5005187 | Throttle lever | |
| 11 | 0353036 | Spring, throttle lever return | |
| 12 | 0908398 | Washer | |
| 13 | 0333774 | Attache, commande vers tringlerie de sens de marche remote models | |
| 13 | 0333774 | Attache, commande vers tringlerie de sens de marche tiller models | |
| 14 | 0328702 | Washer remote models | |
| 14 | 0328702 | Washer tiller models | |
| 15 | 0353897 | Screw | |
| 16 | 0353761 | Rondelle, levier de sens de marche | |
| 17 | 0360630 | Nut, m6 | This part replaces 0353694. |
| 18 | 5007059 | Lever pin assembly, shift shaft | |
| 19 | 0353968 | Detent, shift lever | |
| 20 | 0315164 | . . ball, valve shift | |
| 21 | 0334241 | Guide | |
| 22 | 0334338 | Screw, lever to shift rod | |
| 23 | 0315081 | Bushing, shoulder screw | |
| 24 | 0353804 | Spacer, shift lever to block | |
| 25 | 5007060 | Lever shaft assembly, shift | |
| 26 | 0353705 | Shift rod 15 inch | |
| 26 | 0353706 | Shift rod 20 inch | |
| 26 | 0355256 | Shift rod 25 inch | |
| 27 | 0334119 | Connector | |
| 28 | 0338630 | Clip, link | |
| 29 | 0587071 | Cable assy, neutral switch g suffix remote models | |
| 29 | 0586994 | Cable assy, tiller hand e g suffix tiller models | |
| 29 | 0586780 | Interrupteur, point mort c, h, r, or s suffix models | |
| 30 | 3011153 | Connecteur, fiche 2 positions | |
| 31 | 3011147 | Contact, female receptacle | |
| 32 | 3011225 | Seal, wire | |
| 33 | 0354619 | Bracket, neutral switch to block use on serial number 08750338 higher | |
| 34 | 0353753 | Screw, bracket to cyl c c | |
| 35 | 0334192 | Screw, neutral start | |
| 36 | 0353740 | Washer, neutral switch screw | |
| 37 | 0351928 | Retainer, control cable trunnion remote models | |
| 38 | 0353897 | Screw remote models | |
| NS | 0317893 | Tie strap | |
| NS | 0320107 | Tie strap |
