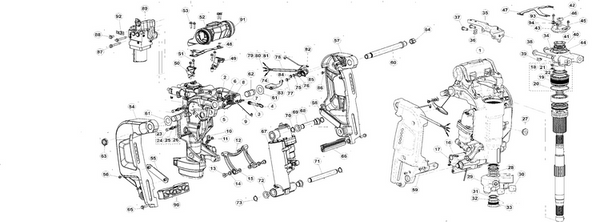

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 33
Product Description: Plug
Category: EVINRUDE / AA Models / 150 - (G2, Inline 3-Cyl, 1.865 L) / K150GXTAAB - (G2, Inline 3-Cyl., 1.865 L) / 06-3 POWER TILLER STERN & SWIVEL
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
â | 5011896 | Stern swivel bracket assembly, complete slate gray for warratny use only | |
â | 5011126 | Stern swivel bracket assembly, complete white for warratny use only | |
1 | *SWIVEL BRACKET ASSEMBLY | Not serviced separately | ||
2 | 0362044 | Bushing, steering lock | |
3 | 0361925 | Grommet, steering lock pin | |
4 | 0361824 | Pin, steering lock | |
5 | 0361142 | Lanyard assembly | |
6 | 0358340 | Screw, m5x14 | |
7 | 0313607 | Lube fitting | |
8 | 0328724 | Screw | |
9 | 0584472 | Bonding lead | |
10 | 0359665 | Retainer, trail lock lever | |
11 | 0328724 | Screw | |
12 | 5011147 | Lever assembly, painted trail lock | |
12 | 5011148 | Lever assembly, painted trail lock | |
â | 0360573 | Lever, trail lock | |
13 | 0335487 | Screw, trail lock lever | |
14 | 0335701 | Bushing, trail lock lever | |
15 | 0330266 | Washer, trail lock lever | |
16 | 0335814 | Retainer, trail lock | |
17 | 0336210 | Spring, trail lock spring | |
18 | 5011127 | End cap seal kit | |
19 | ***END CAP & SEAL ASSEMBLY | Not serviced separately | ||
20 | 0359969 | O ring | |
21 | 0328724 | Screw | |
22 | 0359673 | Tab, retaining | |
23 | 5009972 | Kit, bleed valve existing service kit | |
24 | 0315391 | Cover | |
25 | ***FITTING, Bleed valve | Not serviced separately | ||
26 | 0303191 | "o" ring, lever shaft | |
27 | 0361341 | Grommet | |
28 | 0357814 | O ring | |
29 | 5011128 | Steering bracket lower, painted slate gray | |
29 | 5011129 | Steering bracket lower, painted white | |
â | 0362108 | Bracket, lower steering | |
30 | 0362109 | Bumper | |
31 | 0355028 | Retaining ring | |
32 | 0313754 | O ring | |
33 | 0354962 | Plug | |
34 | 5011130 | Steering bracket upper painted slate gray | |
34 | 5011131 | Steering bracket upper painted white | |
35 | 5011551 | Bracket assembly power tiller incl sensor | |
36 | 0360498 | Washer, locking tab | |
37 | 0362482 | Screw, m10 x 30 | |
38 | 0362479 | Screw, steering bracket to upper mount | |
39 | 0358999 | Clip,connector mounting | |
40 | 0356876 | Washer, tab | |
41 | 0356877 | Nut, steering shaft | |
42 | 5010559 | Steering position sensor kit incl 43 45 existing service kit | |
43 | **STEERING POSITION SENSOR ASSEMBLY | Not serviced separately | ||
44 | 0341620 | O ring | |
45 | 0361622 | Screw, m6 x 25 | |
46 | 0360838 | Grommet | |
47 | 0361773 | Bracket, steering position sensor | |
48 | 0361677 | Screw, m6 x 10 steering position sensor to brackets | |
49 | 0361710 | Bracket, port rigging | |
50 | 0361712 | Bracket, starboard rigging | |
51 | 0353553 | Screw m6 x 30 rigging brackets to swivel bracket assembly | |
52 | 5010729 | Rigging housing assembly also see rigging housing | |
53 | 0353553 | Screw m6 x 30 rigging housing to rigging brackets | |
54 | 5010979 | Stern bracket assembly, painted starboard slate gray | |
54 | 5011132 | Stern bracket assembly, painted starboard white | |
55 | 0362141 | Trim pad, starboard | |
56 | 0362121 | Screw, trim pad | |
57 | 5010980 | Stern bracket assembly, painted port slate gray | |
57 | 5011133 | Stern bracket assembly, painted port white | |
58 | 0362055 | Trim pad, port | |
59 | 0362121 | Screw, trim pad | |
60 | 5010675 | Tilt tube assembly | |
61 | 0910992 | Rondelle, tube de relevage | |
62 | 0337579 | Bushing, lower pivot shaft | |
63 | 0335554 | Locknut, tilt tube | |
64 | 0317894 | Cap, tilt tube | |
65 | 0362173 | Screw, m8 x 35 anode to stern brackets | |
66 | 5009241 | Anode assembly | |
67 | 5011186 | Trim tilt hydraulic assembly also see trim tilt hydraulic unit | This part replaces 5010780. |
68 | 0335480 | Tilt pin, upper | |
69 | 0335479 | Bushing, tilt pin | |
70 | 0336534 | Retaining ring, lower tilt pin | |
71 | 0335463 | Tilt pin, lower | |
72 | 0335479 | Bushing, tilt pin | |
73 | 0336534 | Retaining ring, lower tilt pin | |
74 | 0333739 | Retainer, fuel hose to cover | This part replaces 0329610. |
75 | 0328743 | Rondelle | |
76 | 0309750 | Washer, spring | |
77 | 0329160 | Screw, anchor to bracket | |
78 | 0587333 | Sending unit assembly | |
79 | 3011149 | Seal, wire | |
80 | 3011147 | Contact, female receptacle | |
81 | 3011420 | Connector not shown | |
82 | 0513323 | Ring terminal, 10 | |
83 | 0329160 | Screw, anchor to bracket | |
84 | 0328744 | Screw, clamp 1 4 20 x .75 | |
85 | 0328702 | Washer | |
86 | 0332226 | Screw, air temperature sensor | |
87 | 0360972 | Screw, anode | |
88 | 0354818 | Screw, anode | |
89 | 5011825 | Power tiller manifold assembly | |
90 | 0362590 | Grommet, water deflector | |
91 | 0362719 | Grommet rigging housing power tiller only | |
92 | 362716 | Clip incl in 1 | |
93 | 328701 | Washer power tiller only | |
94 | 316487 | Bracket power tiller sensor |
