EVINRUDE-JOHNSON 356083 Hose, Oil Tank Fill | Black Hose

Write a Review
$58.99
SKU:
356083
Schematic Object Key:
23

EVINRUDE-JOHNSON 356083 Hose, Oil Tank Fill | Black Hose

$58.99

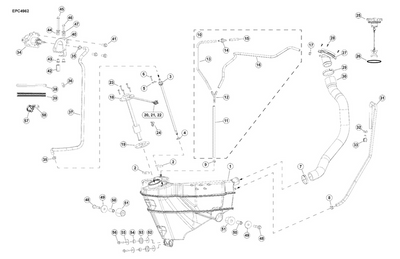

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 356083 Hose, Oil Tank Fill | Black Hose

Schematic Object Key : 23

Product Description: Hose, Oil Tank Fill | Black Hose

Category: EVINRUDE / AJ Models / 200 - (G2, 74° V6, 3.4 L) / H200GXCAAJA - (G2 74° V6, 3.4 L) / 03-6_OIL TANK & PUMPS

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
– 5009441 Oil tank assembly, complete
1 0356084 Oil tank
2 5008808 Oil pump manifold assembly
3 5007914 Oil manifold assembly
4 0355823 Hose, manifold to pump sealing
5 5009440 Oil pump kit
NS 0348838 Clamp, 10.5 mm use clamp on supply hose to rear oil pump only
6 5008809 Tube screen assembly
7 0338513 Joint torique, raccord
8 0328649 Screw, bowl to body
9 0348838 Clamp, 10.5 mm oil tank vent hose to oil tank
10 0346785 Clamp, 14.5 mm
11 0356360 Clamp, 56.0 mm use with black hose, p n 356083
12 0357892 Oil level switch
13 0362027 Grommet, oil switch
14 0349898 Hose, support
15 0778708 Hose 0.093 in. 2.36 mm diameter, bulk roll 25 ft. 7.62 m
16 0512937 Sleeve oil manifold to crankcase oil hose
17 0320107 Tie strap
18 3011450 Clip to vapor separator water outlet hose
19 0329661 Holder, plug
20 0355588 Hose, oil inlet connector to oil tank
21 0346785 Clamp, 14.5 mm
22 5010037 Hose check valve assembly oil tank vent to center frame
– 5010069 Check valve do not install check valve if remote oil tank kit is used
23 0356083 Hose, oil tank fill black hose
24 0356360 Clamp, 56.0 mm use with black hose, p n 356083
25 5009735 Oil cap assembly
26 0356504 O ring
27 0356483 Stud m12
28 0357106 Washer
29 0356901 Mount, rubber
30 0353735 Washer, end cap screws
31 0353728 Nut, flanged m12
32 0356483 Stud
33 0357106 Washer
34 0356901 Mount, rubber
35 0353735 Washer, end cap screws
36 0353728 Nut, flanged
37 0361381 Hose, oil tank to filter
38 5010832 Sender, oil level
39 3011153 Connecteur, fiche 2 positions
40 3011147 Contact, female receptacle
41 3011149 Seal, wire
42 0359348 Gasket, oil level sender
43 0330838 Screw, baffle
44 5010769 Oil filter kit
45 0346785 Clamp, 14.5 mm
46 0320107 Tie strap oil filter to oil tank
47 3011346 Clip oil tank vent hose to vst water hose
48 5009376 Clip tie strap oil hose retention to stbd fuel injector tube
– 0320107 Tie strap
49 0316487 Retainer oil hoses, manifold to crankcase.
50 0352531 Clip, fuel oil hoses
51 0778707 Flexible, alimentation en huile 0.25 in. 6.35 mm diameter bulk roll 25 ft. 7.62 m
52 0346785 Clamp, 14.5 mm
53 0356361 Fitting, reducer
54 0348838 Clamp, 10.5 mm 200, 225, 250 hp models
55 0772571 Hose 5 32 in. 3.96 mm diameter bulk roll 25 ft. 7.62 m
56 5007914 Oil manifold assembly
57 0355823 Hose, manifold to pump sealing
58 5009440 Oil pump kit
– 0348838 Clamp, 10.5 mm
59 0349898 Hose, support
60 0778708 Hose 0.093 in. 2.36 mm diameter bulk roll 25 ft. 7.62 m
61 0356715 Sleeve, braided length 19 in. 482.6 mm
61 0508363 Sleeve, braided bulk roll 100 ft. 30.48 m
62 0320107 Tie strap
63 0329518 Grommet, esm mounting
64 0353753 Screw, bracket to cyl c c m5 x 12
65 0356563 Bracket 200 h.o., 225 250 hp
66 0338558 Entretoise, à collerette
67 0333040 Isolator
68 0353761 Rondelle, levier de sens de marche
69 0353590 Screw m6 x 25
70 0353753 Screw, bracket to cyl c c m5 x 12
71 0357774 Bracket 250 h.o. 300 hp
72 0353554 Screw, starter to crankcase m6 x 25
73 0333040 Isolator
74 0353761 Rondelle, levier de sens de marche
75 0338558 Entretoise, à collerette
76 0353554 Screw, starter to crankcase m8 x 30
77 0911201 Washer, starter housing to spindle
78 0356556 Spacer
79 0329518 Grommet, esm mounting
