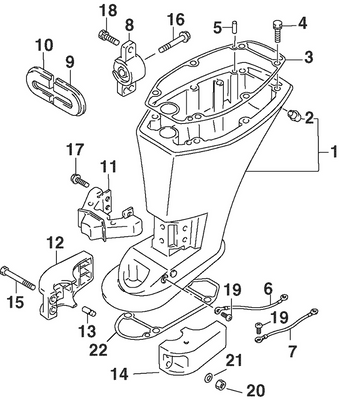

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 15
Product Description: Cover, Mount Bracket Lower - Port
Category: EVINRUDE / AA Models / 200 - (G2, 66° V6, 2.7 L) / C200AXCAAF - (G2 66° V6, 2.7 L) / 06-1.0_EXHAUST HOUSING
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
1 | 5010320 | Exhaust housing assembly | This part replaces 5010129. |
2 | 0336630 | Goupille, cylindrique | |
3 | 0356483 | Stud m12 | |
4 | 0355232 | Stud, gearcase mounting m10 x 1.5 | |
5 | 0335852 | Plug | |
6 | 0357523 | Fitting, 0.5 inch npt water drain | |
7 | 0353931 | Pin, alignment exhaust housing to adapter | |
â | 5010127 | Grommet seal kit, exhaust housing | |
8 | 0321357 | O ring | |
9A | 0359252 | Grommet lower mount | |
9B | 0359613 | Grommet shift actuator cable oil reservoir hose | |
10 | 0357577 | Sleeve | |
11 | 5008375 | Rubber mount, lower | |
12 | 0356329 | Cover, mount bracket lower starboard | |
13 | 0353590 | Screw m6 x 25 | |
14 | 5008375 | Rubber mount, lower | |
15 | 0356328 | Cover, mount bracket lower port | |
16 | 0353590 | Screw m6 x 25 | |
17 | DIVIDER, Idle | ||
18 | EXHAUST PIPE | ||
19 | 0356006 | Seal exhaust pipe to adapter | |
20 | 0355472 | Adapter, exhaust 20 inch models | |
20 | 0356337 | Adapter, 25 inch 25 inch models | |
21 | 0355463 | Seal, adapter adapter to gearcase | |
22 | HOSE | ||
23 | 0346785 | Clamp, 14.5 mm | |
24 | 0353741 | Washer | |
25 | 0358565 | Nut, flanged exhaust housing to cylinder block | |
26 | 5009141 | Mount tie strap | |
27 | 0320107 | Tie strap | |
28 | 0358565 | Nut, flanged exhaust housing to gearcase | |
29 | 0349557 | Mount |
