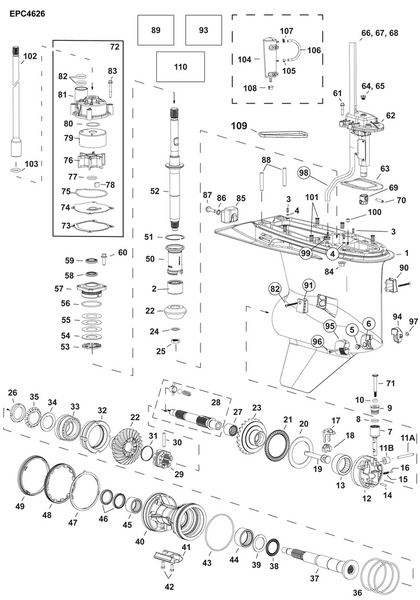

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 70
Product Description: Spring Pin, Coupler
Category: EVINRUDE / AG Models / 200 - (G2, 74° V6, 3.4 L) / E200XHCAGF - (G2 74° V6, 3.4 L) / 07-1_GEARCASE, SLX-Type, Counter Rotation
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
1 | 5008429 | Gearcase bearing assembly | |
2 | 5008904 | Bearing, pinion | |
3 | 0353931 | Pin, alignment | |
4 | 0321357 | O ring | |
5 | 0318544 | Screw, fill drain contents of gearcase seal kit | |
6 | 0311598 | Seal | |
7 | 5009160 | Detent, shifter | |
8 | 0319344 | "o" ring, crankshaft | |
9 | 0357872 | Bushing, shift rod add to g c and pinion ay. | |
10 | 0318372 | "o" ring, shift rod | |
11A | 0317274 | Pin, shift lever | |
11B | 0357672 | Magnet | |
12 | 5009468 | Bearing housing assembly reverse gear | |
13 | 0389039 | Bearing, forward gear | |
14 | 0356890 | Pin, housing | |
15 | 0911962 | Spring | |
16 | 0160084 | Ball | |
17 | 0322938 | Lever, shift | |
18 | 0334163 | Cradle, shifter | |
19 | 0348483 | Shaft, shift | |
20 | 0327669 | Thrust washer, forward gear | |
21 | 0389042 | Thrust bearing assembly, foward gear | |
22 | 5010874 | Gearset, forward, reverse pinion contact dealer support | This part replaces 5009855. |
23 | **GEAR, Reverse | Not available separately | ||
24 | 0350038 | Washer, pinion nut | |
25 | 0314730 | Nut, pinion to driveshaft | |
26 | 0353096 | Nut, spanner | |
27 | 0377868 | Bearing, clutch shaft to reverse gear | |
28 | 5007404 | Clutch shaft assembly contact dealer support | |
29 | 0337774 | Shifter, clutch dog | |
30 | 0313448 | Pin, clutch dog | |
31 | 0324369 | Spring, clutch dog pin | |
32 | 0352713 | Housing, forward gear bearing | |
33 | 5007359 | Bearing spacer, forward gear | |
34 | 0353551 | Thrust washer | |
35 | 0353336 | Washer, lock | |
36 | 0353097 | Shim, 0.003 in. 0,07mm | |
36 | 0353098 | Shim, 0.004 in. 0,10mm | |
36 | 0353099 | Shim, 0.005 in. 0,12mm | |
36 | 0353334 | Shim, 0.01 in. 0,25mm | |
37 | 0357204 | Propeller shaft | |
38 | 0382408 | Thrust bearing | |
39 | 0313447 | Thrust washer | |
40 | 5009489 | Bearing housing assembly propeller shaft | |
41 | 0431708 | Anode, bearing housing | |
42 | 0353785 | Screw, anode | |
43 | 0911700 | O ring, propshaft housing | |
44 | 0431926 | Needle bearing assembly, front | |
45 | 5009136 | Needle bearing assembly, rear | |
46 | 5009137 | Seal, propeller shaft | |
47 | 0357146 | Lock ring contents of gearcase seal kit | |
48 | 0357145 | Spanner nut contents of gearcase seal kit | |
49 | 0357320 | Anti ventilation ring | |
50 | 0355479 | Screw pump, oil | |
51 | 0355485 | Retainer, oil screw pump | |
52 | 0357377 | Driveshaft, lower | |
53 | 0387656 | Butée, arbre d'entraînement | |
54 | 0327656 | Rondelle de butée, arbre d'entraînement | |
55 | 0323362 | Cale, 0,003" 0,07 mm | |
55 | 0323361 | Cale, 0,004" 0,10 mm | |
55 | 0314745 | Cale, 0,005" 0,12 mm | |
56 | 0354731 | O ring | |
57 | 0439476 | Bearing housing seal | |
58 | 0329923 | Joint, inférieur contents of gearcase seal kit | |
59 | 0329922 | Joint, supérieur contents of gearcase seal kit | |
60 | 0357429 | Screw m8 x 25 | |
61 | 0353553 | Screw m6 x 30 | |
62 | 5010335 | Shift actuator assembly | |
63 | 0355835 | Seal, shift actuator cover | |
64 | 0307551 | Screw | |
65 | 0311598 | Seal | |
66 | 3011704 | Connector, 6 socket plug | |
67 | 3011705 | Lockwedge, 6 socket plug | |
68 | 3011706 | Terminal, socket | |
69 | 0355936 | Coupler, shift rod | |
70 | 0356562 | Spring pin, coupler | |
71 | 0357345 | Shift rod | |
72 | 5011599 | Water pump repair kit | This part replaces 5009434. |
73 | 0355285 | Gasket, impeller plate contents of gearcase seal kit | |
74 | 0362812 | Plate, impeller housing stainless | This part replaces 0355286. |
75 | 0355401 | Seal, impeller housing plate | |
76 | 5011603 | Impeller repair kit | This part replaces 5009435. |
77 | 0302035 | "o" ring, spacer to imp. hsg. | |
78 | 0331107 | Clavette, turbine | |
79 | 0355170 | Cup, impeller stainless | |
80 | 0331188 | O ring | |
81 | 0355171 | Impeller housing | |
82 | 0320140 | "o" ring, small water pump housing to water tube | |
83 | 0353579 | Screw, impeller housing | |
84 | 0358565 | Nut, flanged | This part replaces 0356217. |
85 | 0355964 | Anode insert | |
86 | 0306486 | Washer, screw, negative | |
87 | 0353554 | Screw, starter to crankcase | |
88 | 0355232 | Stud, gearcase mounting | |
89 | 5009436 | Water screen kit | |
90 | *SCREEN, Water intake-Port | Not available individually | ||
91 | *SCREEN, Water intake-Starboard | Not available individually | ||
92 | 0337061 | Screw, water intake screens | |
89 | 5010501 | Water screen kit, high flow 0.060 in optional accessory | |
89 | 5010502 | Water screen kit, ultra high flow 0.160 in optional accessory | |
89 | 5011694 | Water screen kit, ultra high flow 0.410 in optional accessory | This part replaces 5010490. |
93 | 5009437 | Water screen kit, low water pick up | |
94 | *SCREEN, Water intake-Port | Not available individually | ||
95 | *SCREEN, Water intake-Starboard | Not available individually | ||
96 | 0355403 | Screw, water intake screens | |
97 | 0121470 | Locknut, hook bolt to cross bar | |
98 | 0357226 | Hose, gearcase to oil reservoir to expansion reservoir | |
99 | 0346786 | Clamp | |
100 | 0321164 | Plug | |
101 | 0357555 | Sleeve, plastic long | |
102 | 0357068 | Driveshaft, upper 20 in models | |
102 | 0357069 | Driveshaft, upper 25 in. models | |
102 | 0357070 | Driveshaft, upper 30 in. models | |
103 | 0302035 | "o" ring, spacer to imp. hsg. | |
NS | 5008843 | Plug tie strap shift actuator cable to block | |
104 | 5009873 | Oil reservoir, gearcase see starboard covers | |
105 | 0348838 | Clamp, 10.5 mm | |
106 | 0357427 | Hose 0.25 in. 6.35 mm diameter, bulk roll 25 ft. 7.62 m | |
108 | 0346786 | Clamp | |
NS | 0315656 | Screw oil bottle mounting | |
109 | 0355463 | Seal, adapter all models | |
110 | 5009438 | Gearcase seal kit | |
- | 0302035 | "o" ring, spacer to imp. hsg. | |
- | 0321357 | O ring | |
- | 0318544 | Screw, fill drain | |
- | 0311598 | Seal | |
- | 0319344 | "o" ring, crankshaft | |
- | 0318372 | "o" ring, shift rod | |
- | 0911700 | O ring, propshaft housing | |
- | 5009137 | Seal, propeller shaft | |
- | 0357146 | Lock ring | |
- | 0357145 | Spanner nut | |
- | 0354731 | O ring | |
- | 0329923 | Joint, inférieur | |
- | 0329922 | Joint, supérieur | |
- | 0357429 | Screw m8 x 25 | |
- | 0355835 | Seal, shift actuator cover | |
- | 0307551 | Screw | |
- | 0311598 | Seal | |
- | 0355285 | Gasket, impeller plate | |
- | 0357555 | Sleeve, plastic long | |
- | 0357577 | Sleeve |
