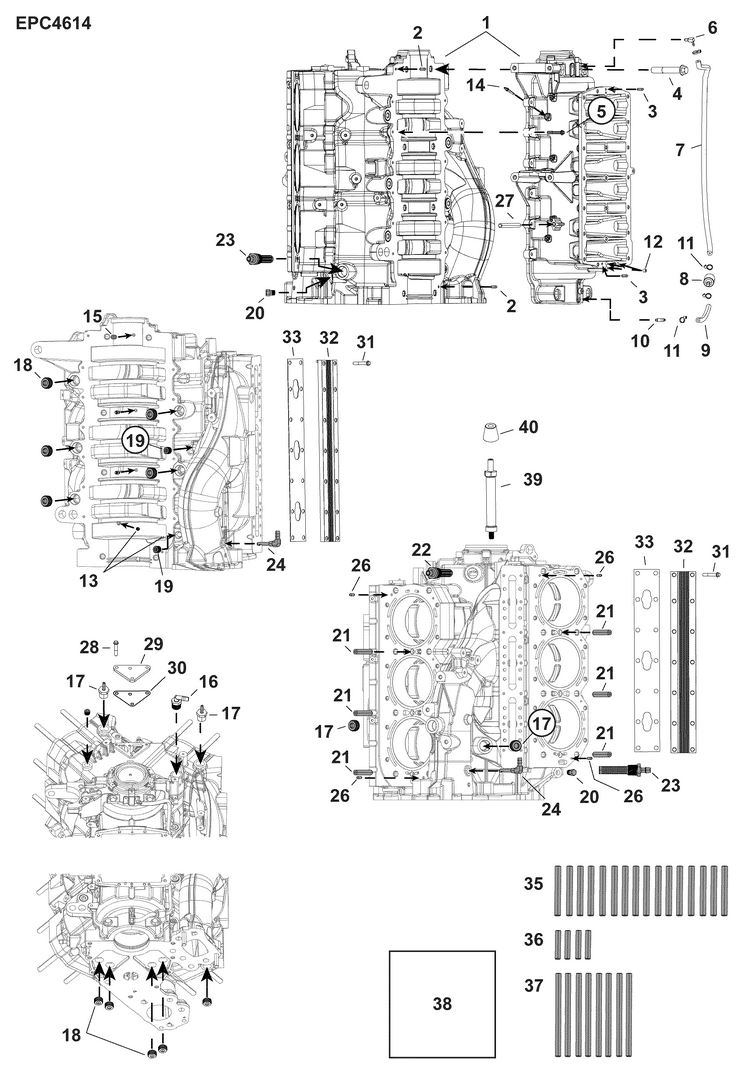

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 32
Product Description: Cover, Deck | Port & Starboard
Category: EVINRUDE / AB Models / 225 - (G2, 74° V6, 3.4 L) / E225XHABA - (G2 74° V6, 3.4 L) / 05-3_CYLINDER & CRANKCASE
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
| Key | Part No. | Product Name | Additional_info |
|---|---|---|---|
| 1 | 5010296 | Cylinder crankcase assembly 200, 225, 250 hp | This part replaces 5009458. |
| 1 | 5010297 | Cylinder crankcase assembly 250 h.o., 300 models only | This part replaces 5009459. |
| 2 | 0353931 | Pin, alignment reed plate to crankcase | |
| 3 | 0353931 | Pin, alignment crankcase cover to cylinder block | |
| 4 | 0356409 | Screw, crankcase to block m12 x 70 | |
| 5 | 0353590 | Screw | |
| 6 | 0357443 | Fitting, elbow | |
| 7 | 0772570 | Flexible, évent vers silencieux d'admission d'air , 2 1 4" 57 mm 0.125 in. 3.175 mm diameter bulk roll 25 ft. 7.62 m | |
| 8 | 5009201 | Check valve assembly | |
| 9 | 0772571 | Hose 0.156 in. 3.96 mm diameter bulk roll 25 ft. 7.62 m | |
| 10 | 0357442 | Fitting, elbow | |
| 11 | 0317893 | Tie strap | |
| 12 | 0435681 | Check valve assembly | |
| 13 | 0437773 | Check valve | |
| 14 | 0344821 | Fitting, crankcase oil inlet | |
| 15 | 0304178 | Pin, dowel | |
| 16 | 0357439 | Fitting, 90 block water flushing hose | |
| 17 | 0357523 | Fitting, 0.5 inch npt cylinder block water outlet to adapter | |
| 18 | 0335852 | Plug | |
| 20 | 0357438 | Plug, accessory water pressure | |
| 21 | 0346237 | Dam, c c water | |
| 22 | 0356673 | Fitting, filter water supply to adaptor | |
| 23 | 0356673 | Fitting, filter water supply to water valve | |
| 24 | 5009397 | Fitting, water spray early models water valve to exhaust runner | |
| 24 | 5009397 | Fitting, water spray early models late models | |
| 24 | 5009583 | Fitting, water spray starboard late models | |
| 26 | 0353931 | Pin, alignment cylinderhead to block | |
| 27 | 0356483 | Stud m8 | |
| 28 | 0353589 | Screw, trim tab m6 x 16 | |
| 29 | 0356438 | Cover, water | |
| 30 | 0355476 | Gasket, water cover | |
| 31 | 0353590 | Screw port starboard | |
| 32 | 0357197 | Cover, deck port starboard | |
| 33 | 0357401 | Gasket, deck port starboard | |
| 35 | 0354903 | Stud, m12 x 100 cylinder head to block | |
| 36 | 0357905 | Stud, m10 x 60 cylinder block to exhaust adapter | |
| 37 | 0358543 | Stud, m10 x 170 cylinder block to exhaust housing | This part replaces 0357906. |
| 38 | 5009481 | O ring kit | |
| 39 | 0356738 | Spacer center frame to cylinder block | |
| 40 | 0352815 | Mount, lower cover center frame to cylinder block | |
| NS | 0316487 | Retainer | |
| NS | 0316487 | Retainer see fuel pump | |
| NS | 5008843 | Plug tie strap shift actuator cable, tnt cable |
