EVINRUDE-JOHNSON 357238 Hose, Fill From Remote Tank

Write a Review
$25.49
SKU:
357238
Schematic Object Key:
13

EVINRUDE-JOHNSON 357238 Hose, Fill From Remote Tank

$25.49

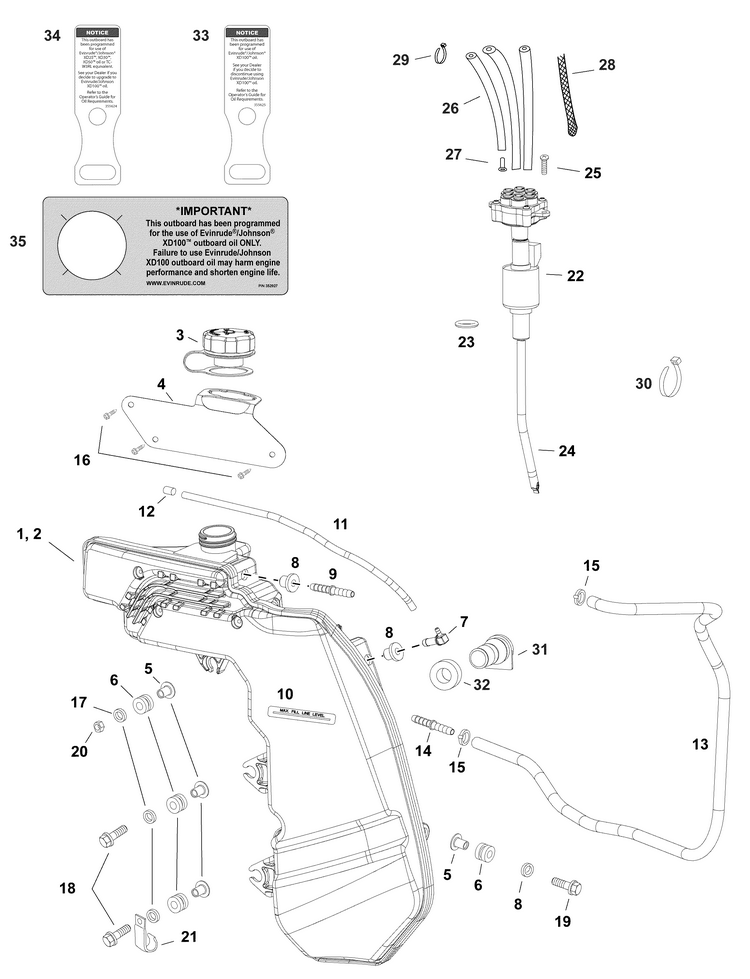

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 357238 Hose, Fill From Remote Tank

Schematic Object Key : 13

Product Description: Hose, Fill From Remote Tank

Category: EVINRUDE / AF Models / 90 - (Inline 3-Cylinder, 1.3 L) / E90GNLAFD / 03-6_OIL TANK & PUMP (Pontoon Series)

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 5009146 Oil tank assembly
2 0357259 Tank
3 5008406 Oil cap assembly
4 0355235 Retainer, oil tank hose
5 0338558 Entretoise, à collerette
6 0333040 Isolator
7 0357236 Fitting, vent hose
8 0357260 Grommet
9 0357271 Nipple
10 0357275 Decal, max fill level
11 0778708 Hose cut to length, 10.5 in. 266.7 mm
12 0328074 Cap, bullet
13 0357238 Hose, fill from remote tank
14 0358042 Fitting, fuel hose This part replaces 0349008.
15 0346785 Clamp, 14.5 mm
16 0343245 Screw
17 0328703 Washer, screw hook
18 0325115 Screw
19 0341011 Screw, adapter to housing, outer
20 0313022 Locknut, double ended bolt
21 0310439 Clamp, battery cable
22 5007915 Pump manifold assembly.
23 0338513 Joint torique, raccord
24 5007969 Tube and screen assembly
25 0328649 Screw, bowl to body
26 0778708 Hose
27 0349898 Hose, support
28 0512937 Sleeve
28 0350323 Sleeve, braided oil to check valve
29 0317893 Tie strap
30 0320107 Tie strap
30 0317893 Tie strap
31 0352874 Switch, oil level
32 0362027 Grommet, oil switch This part replaces 0353920.
33 0355625 Emm oil program tag, xd 100 oil
34 0355624 Decal, emergency stop clip white
35 0355627 Decal, xd 100 oil usage
