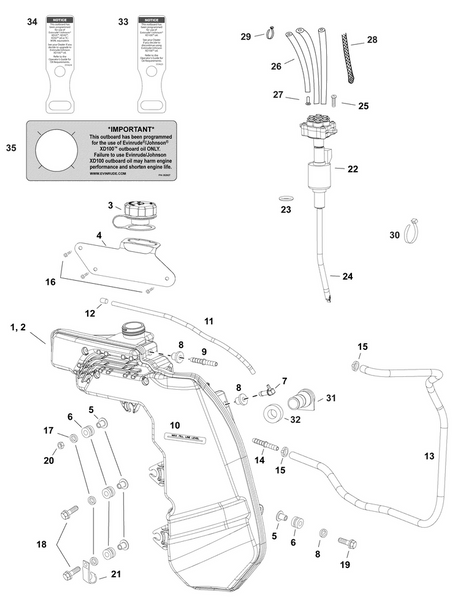

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 8
Product Description: Grommet
Category: EVINRUDE / AF Models / 90 - (Inline 3-Cylinder, 1.3 L) / E90GNLAFD / 03-6_OIL TANK & PUMP (Pontoon Series)
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
| Key | Part No. | Product Name | Additional_info |
|---|---|---|---|
| 1 | 5009146 | Oil tank assembly | |
| 2 | 0357259 | Tank | |
| 3 | 5008406 | Oil cap assembly | |
| 4 | 0355235 | Retainer, oil tank hose | |
| 5 | 0338558 | Entretoise, à collerette | |
| 6 | 0333040 | Isolator | |
| 7 | 0357236 | Fitting, vent hose | |
| 8 | 0357260 | Grommet | |
| 9 | 0357271 | Nipple | |
| 10 | 0357275 | Decal, max fill level | |
| 11 | 0778708 | Hose cut to length, 10.5 in. 266.7 mm | |
| 12 | 0328074 | Cap, bullet | |
| 13 | 0357238 | Hose, fill from remote tank | |
| 14 | 0358042 | Fitting, fuel hose | This part replaces 0349008. |
| 15 | 0346785 | Clamp, 14.5 mm | |
| 16 | 0343245 | Screw | |
| 17 | 0328703 | Washer, screw hook | |
| 18 | 0325115 | Screw | |
| 19 | 0341011 | Screw, adapter to housing, outer | |
| 20 | 0313022 | Locknut, double ended bolt | |
| 21 | 0310439 | Clamp, battery cable | |
| 22 | 5007915 | Pump manifold assembly. | |
| 23 | 0338513 | Joint torique, raccord | |
| 24 | 5007969 | Tube and screen assembly | |
| 25 | 0328649 | Screw, bowl to body | |
| 26 | 0778708 | Hose | |
| 27 | 0349898 | Hose, support | |
| 28 | 0512937 | Sleeve | |
| 28 | 0350323 | Sleeve, braided oil to check valve | |
| 29 | 0317893 | Tie strap | |
| 30 | 0320107 | Tie strap | |
| 30 | 0317893 | Tie strap | |
| 31 | 0352874 | Switch, oil level | |
| 32 | 0362027 | Grommet, oil switch | This part replaces 0353920. |
| 33 | 0355625 | Emm oil program tag, xd 100 oil | |
| 34 | 0355624 | Decal, emergency stop clip white | |
| 35 | 0355627 | Decal, xd 100 oil usage |
