EVINRUDE-JOHNSON 357732 PLATE TRANSOM C=4

Write a Review
$46.49
SKU:
357732
Schematic Object Key:
6

EVINRUDE-JOHNSON 357732 PLATE TRANSOM C=4

$46.49

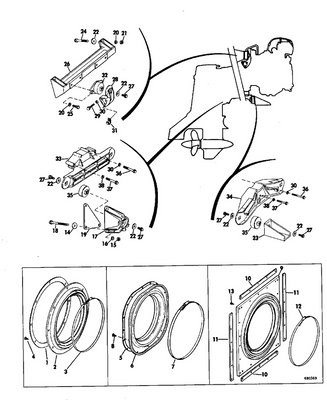

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 357732 Plate,Transom

Schematic Object Key : 6

Replacement: This part (357732) replaces 0315772.

Product Description: Plate,Transom

Category: JOHNSON / 1972 / 50 / 50ES72C 1972 / EXHAUST HOUSING ELECTRIC START

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0384888 Swivel bracket, std
1 0384889 Swivel bracket, long
2 0313607 Lube fitting
3 0315854 Bushing, upper
4 0315795 Seal, upper
5 0315408 Seal, lower
6 0357732 Plate,transom This part replaces 0315772.
7 0357733 Pad This part replaces 0315774.
8 0303776 Screw
9 0315776 Rondelle
10 0309192 Rondelle This part replaces 0120196.
11 0363253 Nut,lock This part replaces 0310702.
12 0363013 Screw This part replaces 0315775.
13 0363013 Screw This part replaces 0316974.
14 0313329 Lockwasher, carburetor link
15 0315773 Thrust washer, stern brkt
16 0315634 Bolt, tilting
17 0436212 Thrust rod assembly This part replaces 0383974.
18 0351018 Gasket, adapter to powerhead This part replaces 0315852.
19 0315085 O ring, driveshaft to crankcase
20 0307068 Spring thrust rod
21 0384035 Shaft lever assy
22 0333871 Lever, locking This part replaces 0315963.
23 0383959 Stern bracket, port
24 0388053 Clamp scr and hand assy This part replaces 0384845.
25 0315571 . swivel plate
26 0302420 . retainer
27 0383958 Stern bracket, stbd. inc. item 24
28 0315860 Cover water tube
29 0385409 Arm shaft assy., std
29 0385411 Arm shaft assy., long
30 0315510 Thrust washer, upper
31 0316072 Thrust washer, lower
32 0315636 Bushing
33 0315961 Pin, link to bracett
34 0302858 Cotter pin, shoulder bolt
35 0315637 Rod, reverse lock
36 0378984 Arm screw
37 0308893 Screw
38 0315101 Bushing, link to lever
39 0314007 . cup, reverse lock spring
40 0313817 . spring, reverse lock
41 0315964 . link, reverse lock
42 0315962 . pin, link to lever
43 0315965 . retainer, spring
44 0313848 Screw, stop link
45 0314031 Spring washer, stop link
46 0313838 Nut, bracket to steering arm
47 0315960 Stop link, starboard
48 0315959 Stop link, port
49 0313849 Screw, stop lin to stern brkt.
50 0315967 Spirng, link
51 0552499 Washer, link pin
52 0321234 . plate, reverse lock This part replaces 0315966.
53 0552940 Screw, mounting This part replaces 0313699.
54 0306470 Lock washer
55 0315511 Nut, bracket to mount support
56 0315450 Adapter, exhaust housing
57 0309705 Screw
58 0328724 Screw This part replaces 0308738.
59 0315954 Exh housing, inner upper
60 0315957 Exh housing, inner lower, std
60 0315958 Exh housing, inner lower, long
61 0384266 Exh hsg., outer, std
61 0384267 Exh hsg., outer, long
62 0552940 Screw, mounting This part replaces 0313699.
63 0351019 Gasket, adapter to housing This part replaces 0315861.
64 0350796 Cover, exhaust housing, front This part replaces 0315445.
65 0340785 Cover, exh. hsg., rear This part replaces 0315446.
66 0328694 Screw, bracket This part replaces 0310861.
67 0315955 Seal, inner to outer housing
68 0316065 Seal, exhaust housing, rear
69 0315956 Seal, lower to outer housing
70 0436470 Mount, upper This part replaces 0383960.
71 0383961 Mount, thrust
72 0388411 Rubber mount, lower This part replaces 0384071.
73 0306470 Lock washer
74 0306428 Flat washer, trans. bolt
75 0552940 Screw, mounting This part replaces 0313699.
76 0302290 Washer
77 0329894 Screw This part replaces 0302510.
78 0316054 Mount bracket
79 0306470 Lock washer
80 0316109 Screw, starter mounting, long
81 0316055 Cover, mount bracket
82 0316233 Screw, cover to bracket
83 0315509 Nut, bracket to shaft
84 0315864 Cover, exhaust relief
85 0329826 Cover, relief cover This part replaces 0315865.
86 0305143 Screw, by pass cover
87 0329706 Transfer, reverse lock This part replaces 0317590.
88 0306423 Bolt
89 0306470 Lock washer
90 0306870 Screw, upper mount
91 0313581 Bumber, mount screw
92 0321232 Retainer washer This part replaces 0313546.
93 0313580 Washer
94 0322309 Washer tube, std. This part replaces 0315862.
94 0340216 Water tube This part replaces 0315863.
95 0315859 Grommet, tube to adapter
