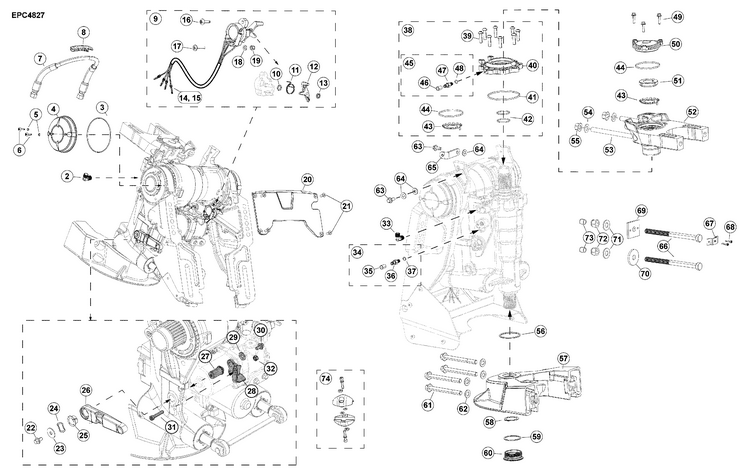

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 16
Product Description: Screw, Sending Unit To Swivel Bracket | M5 X 20
Category: EVINRUDE / AG Models / 225 - (G2, 74° V6, 3.4 L) / E225XHAGF - (G2 74° V6, 3.4 L) / 06-3.2_SWIVEL BRACKET (FULL FEATURED)
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
1 | 5009692 | Stern swivel bracket complete dps models | |
1 | 5011670 | Stern swivel bracket complete ihs models | This part replaces 5009558. |
2 | 0355965 | Fitting, elbow hydraulic steering hoses | |
3 | 0354992 | O ring | |
4 | 0359476 | Cover | |
5 | 0321357 | O ring | |
6 | 0362483 | Screw | This part replaces 0358259. |
7 | 5009496 | Hose assembly ihs models only | |
8 | 357893 | Retainer, hydraulic hose | |
9 | 587196 | Sending unit assembly | |
10 | 320689 | Nut | |
11 | 511528 | Spring | |
12 | 342386 | Arm | |
13 | 511527 | Retainer | |
NS | 0513323 | Ring terminal, 10 10 | |
NS | 3011420 | Connector | |
14 | 3011147 | Contact, female receptacle | |
15 | 3011149 | Seal, wire | |
NS | 0320107 | Tie strap sending unit lead | |
16 | 358259 | Screw, sending unit to swivel bracket m5 x 20 | |
17 | 358261 | Screw, sending unit and ground lead to swivel bracket m5 x 25 | |
18 | 0357134 | Washer, m5 ground lead to swivel bracket | |
19 | 0357117 | Cover,crankcase front ground lead to swivel bracket | |
20 | 0357363 | Plate | |
21 | 0358258 | Screw m6 x 16 flathead | |
22 | 0353897 | Screw retainer | |
23 | 0357083 | Washer | |
24 | 0356413 | Spring washer | |
25 | 0335486 | Bague, levier de relevage | |
26 | 0356444 | Lever | |
27 | 0357035 | Bushing | |
28 | 0356313 | Retainer | |
29 | 0353761 | Rondelle, levier de sens de marche | |
30 | 0353897 | Screw trail lock lever | |
31 | 0356315 | Screw, m6 x 30 | |
32 | 0360630 | Nut, m6 | |
33 | 0355965 | Fitting, elbow hydraulic steering hoses | |
34 | 5009972 | Kit, bleed valve | |
35 | 0315391 | Cover | |
36 | **FITTING, Bleed valve | ||
37 | 0303191 | "o" ring, lever shaft | |
38 | 5009971 | End cap kit | |
39 | 0357639 | Screw, end cap m8 x 30 | |
40 | *END CAP ASSEMBLY | ||
41 | 0358324 | O ring, end cap | |
42 | 0357985 | O ring, steering shaft | |
43 | 0356876 | Washer, tab | |
44 | 0341620 | O ring | |
45 | 5009972 | Kit, bleed valve | |
46 | 0315391 | Cover | |
47 | ***FITTING, Bleed valve | ||
48 | 0303191 | "o" ring, lever shaft | |
49 | 0353590 | Screw m6 x 25 | |
50 | 0355137 | Cover | |
51 | 0356877 | Nut, steering shaft 1 5 16 in. | |
52 | 0363151 | Steering bracket, upper | This part replaces 0356443. |
53 | 0356554 | Stud m14 x 220 | |
54 | 0356233 | Washer m14 | |
55 | 0356555 | Nut, flanged m14 | |
56 | 0357814 | O ring | |
57 | 0356442 | Steering bracket, lower | |
58 | 0355028 | Retaining ring | |
59 | 0313754 | O ring | |
60 | 0354962 | Plug | |
61 | 0356071 | Screw m12 x 120 | |
62 | 0356264 | Washer, m12 steering bracket to lower mount | |
63 | 0354818 | Screw, anode | |
64 | 0357979 | Washer, shipping bracket | |
65 | 0356810 | Shipping bracket | |
66 | 0363011 | Screw, stern bracket mounting, 1 2 x 5.75 in. 146 mm | This part replaces 0358240. |
66 | 0363011 | Screw, stern bracket mounting, 1 2 x 5.75 in. 146 mm optional | This part replaces 0354101. |
66 | 0354102 | Screw, bracket mount, 1 2 x 7 in. optional | |
66 | 0354103 | Screw, bracket mount, 1 2 x 8 in. optional | |
66 | 0354104 | Screw, bracket mount, 1 2 x 9 in. optional | |
67 | 0318273 | Bolt hex retainer 1 2 in. optional | |
68 | 0319886 | Screw optional | |
69 | 0318272 | Nut backing plate square 1 2 in. | |
70 | 0307238 | Rondelle | |
71 | 0320248 | Rondelle, écrou | |
72 | 0363254 | Nut, stern bracket screw | This part replaces 0313623. |
73 | 0318572 | Bolt thread protective cap 1 2 in. | |
74 | 0359580 | Anode kit |
