EVINRUDE-JOHNSON 358436 Bracket, Ignition Coil Mounting

Write a Review
$17.49
SKU:
358436
Schematic Object Key:
33

EVINRUDE-JOHNSON 358436 Bracket, Ignition Coil Mounting

$17.49

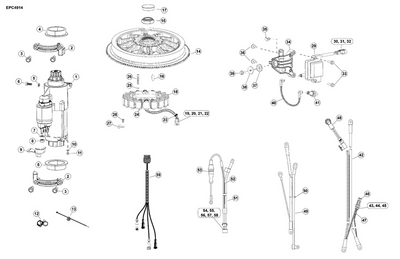

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 358436 Bracket, Ignition Coil Mounting

Schematic Object Key : 33

Product Description: Bracket, Ignition Coil Mounting

Category: EVINRUDE / AF Models / 150 - (G2, 66° V6, 2.7 L) / C150GLPAFA - (G2 66° V6, 2.7 L) / 02-2_ELECTRICAL & IGNITION

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0587485 Starter motor
2 0358912 Bracket, starter motor
3 0362173 Screw, m8 x 35 m8 x 35
4 0353589 Screw, trim tab engine harness ground to upper starter bracket
5 0355427 Grommet, starter mounting
6 0356939 Washer, m6
7 0356534 Screw, battery ground to starter motor
8 0327283 Lockwasher
9 0356466 Nut, m8x1.25 starter cable to solenoid
10 0354321 Boot, starter cable
11 0327283 Lockwasher
12 0356234 Nut, m5 cable to starter solenoid
13 5009376 Clip tie strap starter cable to starter motor
14 5009141 Mount tie strap starter cable to crankcase
15 5011559 Flywheel assembly This part replaces 5008961.
16 0326042 Nut, flywheel
17 0307480 Key
18 0357323 Plug thread protector
19 0587245 Stator ay,switcher
20 3011401 Terminal, pin
21 3011167 Seal, wire 14 gauge
22 3011392 Connector
23 3011393 Seal
24 0320107 Tie strap
25 0317893 Tie strap
26 0360252 Washer stator screw
27 0343525 Screw, stator
28 0587270 Ignition coil
29 3011148 Contact, tab
30 3011149 Seal, wire
31 3011156 Connector, 3 position
32 0359035 Screw, ignition coil to bracket m6x30
33 0358436 Bracket, ignition coil mounting
34 3011292 Clip, mounting ignition coil connector to bracket
35 0356491 Bumper, ignition coil mounting bracket
36 0329518 Grommet, esm mounting
37 0328700 Washer
38 0353897 Screw ignition coil bracket to fuel injector
39 5009781 Spark plug lead
40 5010808 Spark plug, champion qc10wepi champion qc10wepi This part replaces 5010260.
41 0587205 Battery cable, 10 ft. 3.0 m
41 0587301 Battery cable, 15 ft. 4.5 m
41 0587302 Battery cable, 20 ft. 6.0 m
42 3011153 Connecteur, fiche 2 positions
43 3011147 Contact, female receptacle
44 3011225 Seal, wire
45 3011154 Connector, 2 position plug
46 0320107 Tie strap
47 0322815 Cover
48 0587132 Cable assembly, starter to rigging center
49 0320107 Tie strap
50 5009079 Auxiliary battery charging kit optional accessory
51 0502359 Battery cable, 8 gauge bulk roll 50 ft. 15.24 m
52 0982019 Fuse, 50 amp
53 3011920 Connector, 3 position cap
54 3011919 Secondary lock
55 3010485 Terminal
56 3010023 Seal, wire
57 3011916 Plug, cavity
58 0587411 Cable assembly, "y" adapter idock models only. connects nmea remote control networks to idock module
