EVINRUDE-JOHNSON 358514 Hose, Pulse Pump Fuel Outlet | To Fuel Reservoir & Pump Assembly

Write a Review
$8.35
SKU:
358514
Schematic Object Key:
20

EVINRUDE-JOHNSON 358514 Hose, Pulse Pump Fuel Outlet | To Fuel Reservoir & Pump Assembly

$8.35

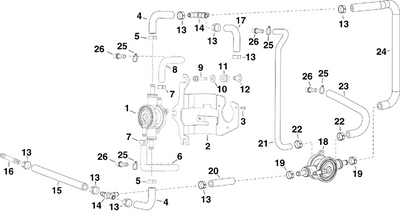

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 358514 Hose, Pulse Pump Fuel Outlet | To Fuel Reservoir & Pump Assembly

Schematic Object Key : 20

Product Description: Hose, Pulse Pump Fuel Outlet | To Fuel Reservoir & Pump Assembly

Category: EVINRUDE / AA Models / 150 - (G2, 66° V6, 2.7 L) / C150PXAAC - (G2 66° V6, 2.7 L) / 03-3_FUEL FILTER, PUMPS & VAPOR SEPARATOR

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 5009838 Fuel reservoir pump assembly obsolete order 66 v6 vapor separator service kit, p n 5010701
NS 0346786 Clamp
NS 0348839 Clamp, 17 mm
2 3011158 Connector, 6 position
3 3011149 Seal, wire small
3 3011225 Seal, wire large
4 3011864 Contact, tab small
4 *CONTACT, Tab | Large
5 3011450 Clip vapor separator vapor solenoid connectors
6 0357635 Screw
7 0335328 Screw, connector
8 0329518 Grommet, esm mounting
9 0328700 Washer
10 0353590 Screw lower
11 0353761 Rondelle, levier de sens de marche lower
12 0333040 Isolator lower
13 0338558 Entretoise, à collerette lower
14 0357797 Fuel filter
15 0348839 Clamp, 17 mm fuel filter to fuel pump inlet hose
16 0358513 Hose, fuel filter to pulse pump fuel inlet
17 5009883 Fuel pump kit includes hose clamps
18 0348839 Clamp, 17 mm fuel inlet and outlet hoses
19 0346786 Clamp pulse hoses to fuel pump
20 0358514 Hose, pulse pump fuel outlet to fuel reservoir pump assembly
21 0348839 Clamp, 17 mm fuel inlet to vapor separator
22 0358515 Hose, pulse to cylinder 1
23 0358516 Hose, pulse to cylinder 4
24 0320107 Tie strap pulse hoses to cylinders
25 0346786 Clamp vent hose to vent solenoid
26 0358943 Hose, vapor separator to solenoid
27 5009936 Fuel vent solenoid kit
28 0346786 Clamp vent solenoid inlet outlet
29 0358942 Hose, vapor vent solenoid to plenum
30 0346786 Clamp vent hose to plenum
31 5011097 Fuel filter bracket assembly This part replaces 5009902.
32 *BRACKET ASSEMBLY | Not sold separately
33 3011148 Contact, tab
34 3011149 Seal, wire
35 3011154 Connector, 2 position plug
36 0333040 Isolator
37 0338558 Entretoise, à collerette
38 5011090 Filter, fuel This part replaces 5009676.
39 0353761 Rondelle, levier de sens de marche
40 0353590 Screw
41 0358517 Hose, vapor separator to fuel filter
42 0348839 Clamp, 17 mm fuel filter to vapor separator hose
43 0360894 Hose water sep fuel filter to vapor sep This part replaces 0358518.
44 0348839 Clamp, 17 mm fuel filter to vapor separator hose
45 5009747 Fuel rail assembly, fuel supply green connector
46 5009748 Fuel rail assembly, fuel return red connector
47 0346786 Clamp cooling water
48 0358522 Hose, cooling water block water out to vapor sep water in
49 0358523 Hose, cooling water vapor sep to dps module
50 3011292 Clip, mounting fuel filter connector to housing
