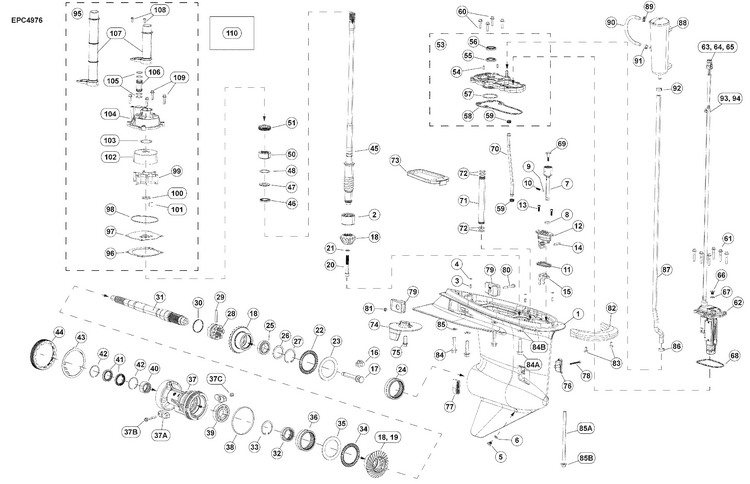

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 27
Product Description: Ring, Retaining
Category: EVINRUDE / AA Models / 115 - (G2, Inline 3-Cyl, 1.865 L) / K115HGLPAAB - (G2, Inline 3-Cyl., 1.865 L) / 07-1_GEARCASE, SLX2-Type (Ratio: 13:27, 0.48, 2.08:1)
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
– | 5010982 | Gearcase complete id code gstna20 gray, standard rotation, no actuator, 20 inch shaft | |
– | 5011021 | Gearcase complete id code gstna25 gray, standard rotation, no actuator, 25 inch shaft | |
– | 5010984 | Gearcase complete id code gcrna25 gray, counter rotation, no actuator, 25 inch shaft | |
– | 5011113 | Gearcase complete id code wstna20 white, standard rotation, no actuator, 20 inch shaft | |
– | 5011117 | Gearcase complete id code wstna25 white, standard rotation, no actuator, 25 inch shaft | |
– | 5011121 | Gearcase complete id code wcrna25 white, counter rotation, no actuator, 25 inch shaft | |
1 | 5010985 | Gearcase bearing assembly | |
2 | 5008904 | Bearing, pinion 5008904 | This part replaces 5010332. |
3 | 0353931 | Pin, alignment | |
4 | 0321357 | O ring | |
5 | 0318544 | Screw, fill drain contents of gearcase seal kit | |
6 | 0311598 | Seal contents of gearcase seal kit | |
7 | 5011718 | Detent assembly | |
8 | 0360491 | O ring, detent | |
9 | 0160084 | Ball | |
10 | 0911962 | Spring | |
11 | 0361212 | Seal | |
12 | 0361888 | Housing, shifter | |
13 | 0360691 | Screw, shifter housing | |
14 | 0360225 | Pin, shift lever | |
15 | 0322938 | Lever, shift | |
16 | 0334163 | Cradle, shifter | |
17 | 0359256 | Shaft, shifter | |
18 | 5010986 | Gearset, forward, reverse pinion standard rotaion ratio 976 | |
18 | 5011307 | Gearset, forward, reverse pinion counter rotaion ratio 13 27, 0.48 , 2.08 1 | |
18 | **GEAR, Front | Not available separately | ||
18 | **GEAR, Pinion | Not available separately | ||
19 | **GEAR, Reverse | Not available separately | ||
20 | 0359432 | Screw, pinion gear 3 8 24 x 2.500 | |
21 | 0360540 | Washer, pinion gear screw | |
22 | 0385043 | Thrust bearing assy. | |
23 | 0324766 | Thrust washer, forward gear | |
24 | 5009768 | Bearing assembly, needle outer | |
25 | 5009769 | Bearing assembly, tapered roller inner | |
26 | 0359338 | Spacer tapered roller bearing to retaining ring | |
27 | 0358571 | Ring, retaining | |
28 | 0352317 | Shifter, clutch dog | |
29 | 0313448 | Pin, clutch dog | |
30 | 0324369 | Spring, clutch dog pin | |
31 | 0359303 | Propeller shaft | |
32 | 5010341 | Bearing assembly, roller inner | |
33 | 0358571 | Ring, retaining | |
34 | 0385043 | Thrust bearing assy. | |
35 | 0324766 | Thrust washer, forward gear | |
36 | 5009768 | Bearing assembly, needle outer | |
37 | 5011166 | Bearing housing assembly, propeller shaft | |
37A | 0363178 | Anode | |
37B | 0325115 | Screw | |
37C | 0313022 | Locknut, double ended bolt | |
38 | 0360749 | O ring, propeller shaft housing | |
39 | 5010042 | Bearing assembly, ball | |
40 | 0379504 | Propshaft bearing assembly | |
41 | 0330137 | Seal | |
42 | 0360028 | Ring, retaining | |
43 | 0359300 | Lock ring | |
44 | 0359299 | Spanner nut | |
45 | 0362333 | Driveshaft, 20 inch for k150 aaa models | |
45 | 0362334 | Driveshaft, 25 inch for k150 aaa models | |
45 | 0363425 | Driveshaft, 20 inch for k150 aab models | |
45 | 0363642 | Driveshaft, 25 inch for k150 aab models | |
46 | 5011083 | Thrust bearing | |
47 | 0362340 | Thrust washer | |
48 | 0362337 | Shim, 0.003 inch | |
48 | 0362338 | Shim, 0.004 inch | |
48 | 0362339 | Shim, 0.005 inch | |
50 | 5011478 | Bearing housing assembly | |
51 | 0362335 | Spanner nut | |
53 | 5010987 | Manifold assembly | |
54 | 0353931 | Pin, alignment manifold housing to impeller housing | |
55 | 0329923 | Joint, inférieur contents of gearcase seal kit | |
56 | 0329922 | Joint, supérieur contents of gearcase seal kit | |
57 | 0362028 | O ring, manifold to driveshaft bearing contents of gearcase seal kit | |
58 | 0361893 | Seal, manifold | |
59 | 0362382 | Seal, oil tube | |
60 | 0353590 | Screw contents of gearcase seal kit | |
61 | 0360339 | Screw, shift actuator m6 x 35 | |
62 | 5010988 | Shift actuator assembly | |
63 | 3011704 | Connector, 6 socket plug | |
64 | 3011705 | Lockwedge, 6 socket plug | |
65 | 3011706 | Terminal, socket | |
66 | 0307551 | Screw contents of gearcase seal kit | |
67 | 0311598 | Seal contents of gearcase seal kit | |
68 | 0359311 | Seal, shift actuator to manifold contents of gearcase seal kit | |
69 | 0361154 | Shift rod | |
70 | 0361570 | Tube, oil | |
71 | 0361376 | Tube, water | |
72 | 0362029 | O ring, water tube | |
73 | 5010736 | Seal pin assembly | |
74 | 0362085 | Trim tab, standard gray | |
74 | 0362376 | Trim tab, standard white | |
74 | 0362820 | Trim tab, counter rotation gray | |
74 | 0362821 | Trim tab, counter rotation white | |
75 | 0313715 | Screw, cap, hex hd, 7 16 14 x 1 | |
77 | 5011392 | Water screen kit, standard flow | |
77 | 5011393 | Water screen kit, high flow | |
78 | 0337061 | Screw, water intake screens | |
79 | 0360661 | Anode insert, rear | |
80 | 0325115 | Screw | |
81 | 0313022 | Locknut, double ended bolt | |
82 | 5011570 | Anode kit, front | |
83 | 0363371 | Screw, anode | |
84A | 0362476 | Screw, gearcase to exhaust housing 20 inch models | |
84B | 0353741 | Washer all models | |
85A | 0363263 | Stud, m10 x 172 gearcase retention to exhaust housing 25 inch models | |
85B | 0358565 | Nut, flanged 25 inch models | |
86 | 0346786 | Clamp | |
87 | 0361716 | Hose, gearcase manifold to oil reservoir | |
86 | 0346786 | Clamp | |
87 | 0361716 | Hose, gearcase manifold to oil reservoir | |
88 | 5009873 | Oil reservoir, gearcase | |
– | 0358892 | Screw | |
89 | 0339276 | Clamp | This part replaces 0357477. |
90 | 0357427 | Hose 0.25 in. 6.35 mm diameter bulk roll 25 ft. 7.62 m | |
91 | 0348838 | Clamp, 10.5 mm | |
92 | 0346786 | Clamp | |
93 | 5008843 | Plug tie strap | |
94 | 0320107 | Tie strap | |
95 | 5010989 | Water pump repair kit | |
96 | 0360148 | Gasket, impeller plate contents of gearcase seal kit | |
97 | 0338485 | Plate, impeller stainless | |
98 | 0331353 | Seal, impeller housing plate. | |
99 | 5010990 | Impeller repair kit | |
– | 5001469 | Impeller assembly | |
100 | 0302035 | "o" ring, spacer to imp. hsg. contents of gearcase seal kit | |
101 | 0331107 | Clavette, turbine | |
102 | 0338486 | Coupelle, turbine inox | |
103 | 0362670 | O ring, cup to housing | |
104 | 0360347 | Housing, impeller | |
105 | 0346865 | O ring, water tube | |
106 | 0360836 | Water tube | |
107 | 0360230 | Tube, 20 in | |
107 | 0360281 | Tube, 25 in | |
108 | 0360643 | Screw, tube to impeller housing | |
109 | 0353590 | Screw | |
110 | 5010991 | Gearcase seal kit |
