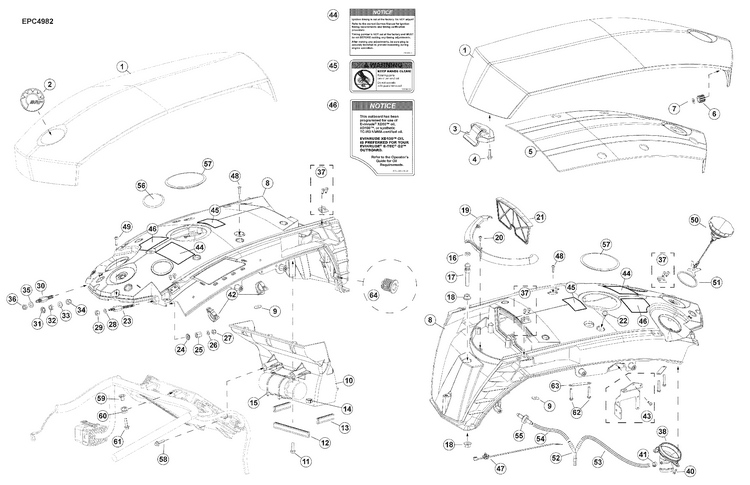

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 5
Product Description: Blanket, Sound
Category: EVINRUDE / AB Models / 175 - (G2, 66° V6, 2.7 L) / C175PLABC - (G2 66° V6, 2.7 L) / 01-2.1_ENGINE COVERS (TOP)
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
| Key | Part No. | Product Name | Additional_info |
|---|---|---|---|
| 1 | 0286120 | Top cap, frame deep black | This part replaces 0285977. |
| 1 | 0286119 | Top cap, frame bright white | This part replaces 0285976. |
| 1 | 0286121 | Top cap, frame radical red | This part replaces 0285978. |
| 1 | 0286122 | Top cap, frame orbital blue | This part replaces 0285979. |
| 1 | 0286123 | Top cap, frame hyper silver | This part replaces 0285980. |
| 1 | 0286124 | Top cap, frame ice blue | This part replaces 0286033. |
| 1 | 0286077 | Top cap, frame unpainted, does not include decals, or hardware | |
| 2 | 0217004 | Lens, logo 68 mm | This part replaces 0352505. |
| 3 | 0355444 | Latch assembly | |
| 4 | 0356845 | Screw m6 x 25 | |
| 5 | 0358742 | Blanket, sound | |
| 6 | 0358021 | Bumper | |
| 7 | 0358972 | Speed nut, push on | |
| 8 | 5010138 | Center frame kit | |
| NS | 0361771 | Blanket, sound | |
| 9 | 0358972 | Speed nut, push on | |
| 10 | 0358393 | Baffle | |
| 11 | 0323228 | Screw baffle to center frame | |
| 12 | 0359481 | Guard, edge rear | |
| 13 | 0359796 | Guard, edge port starboard | |
| 14 | 0359145 | Clip, mount 10 13 mm | |
| 15 | 0907833 | Attache câble, câbles vers commande de sens de marche | |
| 16 | 0318372 | "o" ring, shift rod | |
| 17 | 0355443 | Pin, latch top cap to frame | |
| 18 | 0358565 | Nut, flanged m10 | |
| 19 | 0358394 | Deflector, water | |
| 20 | 0343245 | Screw water deflector to center frame | |
| 21 | 0357232 | Air inlet screen | |
| 22 | 0351731 | Bumper | |
| 23 | 0359264 | Stud, 1 4 in. 6.35 mm negative battery cable | |
| 24 | 0359351 | Washer, retaining | |
| 25 | 0359530 | Nut, 1 4 in. 6.35 mm | |
| 26 | 0356939 | Washer, m6 | |
| 27 | 0313022 | Locknut, double ended bolt | |
| 28 | 0356939 | Washer, m6 | |
| 29 | 0356485 | Nut, 1 4 in. 6.35 mm | |
| 30 | 0359265 | Stud, 5 16 in. 8 mm positive battery cable | |
| 31 | 0359352 | Washer, retaining | |
| 32 | 0356494 | Nut, 5 16 in. 8 mm | |
| 33 | 0356940 | Washer, m8 | |
| 34 | 0363253 | Nut,lock | This part replaces 0310702. |
| 35 | 0356940 | Washer, m8 | |
| 36 | 0356494 | Nut, 5 16 in. 8 mm | |
| 37 | 5010139 | Bracket kit, frame retention | |
| 38 | 0360213 | Oil fill neck | |
| 40 | 0343245 | Screw | |
| 41 | 0348838 | Clamp, 10.5 mm | |
| 42 | 0359134 | Clip, mount 19 mm | |
| 43 | 5010140 | Bracket kit, fuse block | |
| 44 | 0358045 | Decal, timing notice | |
| 45 | 0358046 | Decal, warning | |
| 46 | 0358210 | Decal, oil type | |
| 47 | 5008843 | Plug tie strap vent hose | |
| 48 | 0353420 | Screw center frame to spacers mounts | |
| 49 | 0362483 | Screw center frame to motor frame front | This part replaces 0358259. |
| 50 | 5009787 | Oil cap assembly see oil tank | |
| 51 | 0356504 | O ring | |
| 52 | 0359768 | "y" fitting, 1 4 in. 6 mm | |
| 53 | 0357427 | Hose 1 4 in. 6 mm diameter bulk roll 25 ft. 7.62 m | |
| 54 | 0357427 | Hose 1 4 in. 6 mm diameter bulk roll 25 ft. 7.62 m | |
| 55 | 0359850 | Check valve | |
| 56 | 0356468 | Plug, 2 in. included with owner's kit | |
| 57 | 0356050 | Plug, 4 in. included with owner's kit | |
| 58 | 0356845 | Screw m6 x 25 m6x25 | |
| 59 | 0338558 | Entretoise, à collerette | |
| 60 | 0333040 | Isolator emm mounting | |
| 61 | 0356845 | Screw m6 x 25 | |
| 62 | 0359762 | Screw, engine harness retainer | |
| 63 | 5009547 | Retainer, engine harness | |
| 64 | 0358257 | Insert, m5 x 0.8 oversized o.d. for replacement |
