EVINRUDE-JOHNSON 358765 Hose, Fuel Filter To Pulse Pump Fuel Inlet

Write a Review
$13.99
SKU:
358765
Schematic Object Key:
29

EVINRUDE-JOHNSON 358765 Hose, Fuel Filter To Pulse Pump Fuel Inlet

$13.99

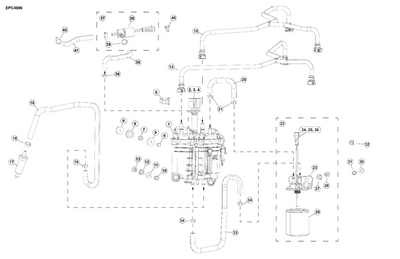

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 358765 Hose, Fuel Filter To Pulse Pump Fuel Inlet

Schematic Object Key : 29

Product Description: Hose, Fuel Filter To Pulse Pump Fuel Inlet

Category: EVINRUDE / AG Models / 250 - (G2, 74° V6, 3.4 L) / E250LHAGB - (G2 74° V6, 3.4 L) / 03-3_FUEL FILTER, PUMPS & VAPOR SEPARATOR

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 5009838 Fuel reservoir pump assembly obsolete order 74 v6 vapor separator service kit, p n 5010690
NS 0346786 Clamp
NS 0348839 Clamp, 17 mm
2 3011158 Connector, 6 position
3 3011149 Seal, wire small
3 3011225 Seal, wire large
4 3011864 Contact, tab small
4 *CONTACT, Tab | Large
5 3011450 Clip vapor separator connector to oil tank vent hose
6 0357635 Screw
7 0328700 Washer
8 0335328 Screw, connector
9 0329518 Grommet, esm mounting
10 0356304 Screw, throttle valve lower rear, to cylinder head
11 0353761 Rondelle, levier de sens de marche lower rear, to cylinder head
12 0333040 Isolator lower rear, to cylinder head
13 0338558 Entretoise, à collerette lower rear, to cylinder head
14 0356312 Spacer lower rear, to cylinder head
15 0353590 Screw lower front, to block
16 0353761 Rondelle, levier de sens de marche lower front, to block
17 0333040 Isolator lower front, to block
18 0338558 Entretoise, à collerette lower front, to block
19 0346786 Clamp cooling water
20 0356601 Hose, cooling water emm water out to vapor sep water in
21 0357537 Hose vapor sep to tee
22 5008058 Fuel rail assembly, fuel supply green connector
23 5008059 Fuel rail assembly, fuel return red connector
24 0358766 Hose, fuel inlet to fuel filter
25 0346150 Clamp, 18.5mm
26 0348939 Connector, fuel inlet
NS 0331649 Cap, connector fuel
27 0348839 Clamp, 17 mm
28 0357797 Fuel filter
29 0358765 Hose, fuel filter to pulse pump fuel inlet
30 5009883 Fuel pump kit includes hose clamps
31 0348839 Clamp, 17 mm
32 0346786 Clamp pulse hoses to fuel pump
33 0353878 Hose, pulse pump fuel outlet to fuel reservoir pump assembly
34 0358763 Hose, pulse to cylinder 1
35 0358762 Hose, pulse to cylinder 4
36 0346786 Clamp pulse hoses to cylinders
37 0346786 Clamp vent hose to vent solenoid
38 0357987 Hose, vapor separator to solenoid
39 5009934 Fuel vent solenoid kit
40 0346786 Clamp
41 0357986 Hose, vapor vent solenoid to plenum
42 0320107 Tie strap vent hose to plenum
37 0346786 Clamp vent hose to vent solenoid
43 0359077 Hose, vapor separator to solenoid
44 5009936 Fuel vent solenoid kit
45 *FUEL VENT SOLENOID
46 0346786 Clamp
47 0359078 Hose, vapor vent solenoid to plenum
48 0320107 Tie strap vent hose to plenum
49 5011097 Fuel filter bracket assembly This part replaces 5009902.
50 *BRACKET ASSEMBLY | Not sold separately
51 3011148 Contact, tab
52 3011149 Seal, wire
53 3011154 Connector, 2 position plug
54 0333040 Isolator
55 0338558 Entretoise, à collerette
56 5011090 Filter, fuel This part replaces 5009676.
57 0353761 Rondelle, levier de sens de marche
58 0353590 Screw
59 0316487 Retainer
60 0352531 Clip, fuel oil hoses fuel filter connector to vapor separator hos
61 0357781 Hose, vapor separator to fuel filter
62 0346786 Clamp
63 0357782 Hose fuel filter to vapor sep
64 0348839 Clamp, 17 mm fuel filter to vapor separator hose
65 0352531 Clip, fuel oil hoses
