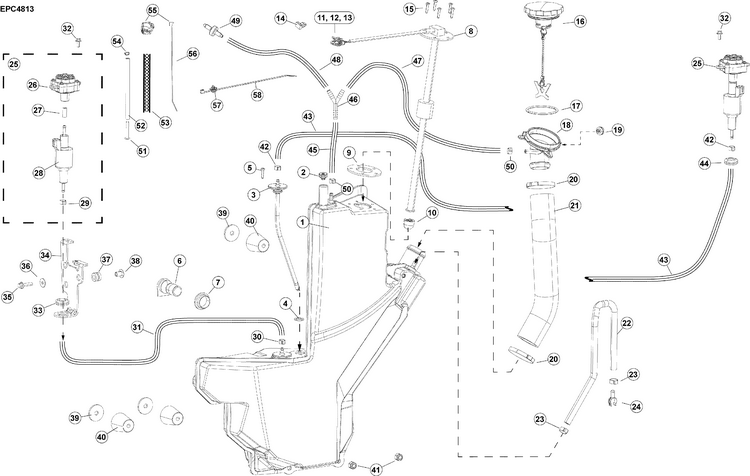

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 10
Product Description: Stabilizer, Oil Sender
Category: EVINRUDE / AA Models / 150 - (G2, 66° V6, 2.7 L) / C150PLHAAC - (G2 66° V6, 2.7 L) / 03-6_OIL TANK & PUMP
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
| Key | Part No. | Product Name | Additional_info |
|---|---|---|---|
| 1 | 5010119 | Oil tank assembly, complete | |
| – | 0358630 | Oil tank | |
| 2 | 5009824 | Vent assembly | |
| 3 | 5009903 | Oil pick up assembly | |
| 4 | 0358770 | O ring | |
| 5 | 0328649 | Screw, bowl to body | |
| 6 | 0357892 | Oil level switch | |
| 7 | 0362027 | Grommet, oil switch | This part replaces 0353920. |
| 8 | 5010118 | Sender, oil level | |
| 9 | 0359348 | Gasket, oil level sender | |
| 10 | 0358992 | Stabilizer, oil sender | |
| 11 | 3011153 | Connecteur, fiche 2 positions | |
| 12 | 3011147 | Contact, female receptacle | |
| 13 | 3011149 | Seal, wire | |
| 14 | 3011292 | Clip, mounting oil level sensor connector | |
| 15 | 0328649 | Screw, bowl to body | |
| 16 | 5009787 | Oil cap assembly | |
| 17 | 0356504 | O ring | |
| 18 | 0360213 | Oil fill neck | |
| 19 | 5009824 | Vent assembly | |
| 20 | 0357516 | Clamp, 51.5 mm | |
| 21 | 0356081 | Hose, oil fill | |
| 22 | 0358778 | Hose, oil inlet connector to oil tank remote oil fill | |
| 23 | 0346785 | Clamp, 14.5 mm | |
| 24 | 0329661 | Holder, plug | |
| 25 | 5008808 | Oil pump manifold assembly | |
| 26 | 5007914 | Oil manifold assembly | |
| 27 | 0355823 | Hose, manifold to pump sealing | |
| 28 | 5009440 | Oil pump kit | |
| 29 | 0348838 | Clamp, 10.5 mm | |
| 30 | 0348838 | Clamp, 10.5 mm oil supply hose to oil pick up | |
| 31 | 0359584 | Hose, oil tank to rear oil pump | |
| 32 | 0353753 | Screw, bracket to cyl c c | |
| 33 | 0329518 | Grommet, esm mounting | |
| 34 | 0358884 | Bracket, oil pump | |
| 35 | 0353590 | Screw | |
| 36 | 0353761 | Rondelle, levier de sens de marche | |
| 37 | 0333040 | Isolator | |
| 38 | 0338558 | Entretoise, à collerette | |
| 39 | 0357106 | Washer | |
| 40 | 0356901 | Mount, rubber | |
| 41 | 0353728 | Nut, flanged lower mount | |
| 42 | 0348838 | Clamp, 10.5 mm oil supply hose to oil pick up and oil pump | |
| 43 | 0772571 | Hose 5 32 in. 3.96 mm diameter bulk roll 25 ft. 7.62 m | |
| 44 | 0329518 | Grommet, esm mounting | |
| 45 | 0357427 | Hose 1 4 in. 6 mm diameter bulk roll 25 ft. 7.62 m | |
| 46 | 0359768 | "y" fitting, 1 4 in. 6 mm | |
| 47 | 0357427 | Hose 1 4 in. 6 mm diameter bulk roll 25 ft. 7.62 m | |
| 48 | 0357427 | Hose 1 4 in. 6 mm diameter bulk roll 25 ft. 7.62 m | |
| 49 | 0359850 | Check valve | |
| 50 | 0348838 | Clamp, 10.5 mm oil tank vent hose | |
| 51 | 0349898 | Hose, support | |
| 52 | 0778708 | Hose 0.093 in. 2.36 mm diameter, bulk roll 25 ft. 7.62 m | |
| 53 | 0356715 | Sleeve, braided oil manifold to crankcase oil hose | |
| 54 | 0320107 | Tie strap | |
| 55 | 5009376 | Clip tie strap retain oil hoses to fuel injector tubes | |
| 56 | 0320107 | Tie strap | |
| 57 | 5008843 | Plug tie strap retain oil vent and hose to center frame | |
| 58 | 0320107 | Tie strap |
