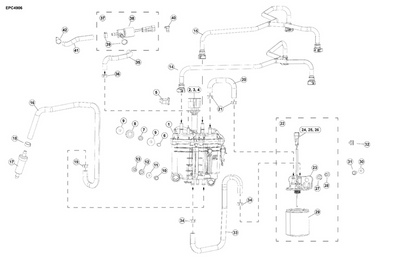

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 35
Product Description: Hose, Vapor Separator To Solenoid
Category: EVINRUDE / AA Models / 200 - (G2, 66° V6, 2.7 L) / C200FXAAE - (G2 66° V6, 2.7 L) / 03-3_FUEL FILTER, PUMPS & VAPOR SEPARATOR
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
| Key | Part No. | Product Name | Additional_info |
|---|---|---|---|
| 1 | 5010691 | Fuel reservoir pump assembly | |
| NS | 0346786 | Clamp | |
| NS | 0348839 | Clamp, 17 mm | |
| 2 | 3011158 | Connector, 6 position | |
| 3 | 3011149 | Seal, wire small | |
| 3 | 3011225 | Seal, wire large | |
| 4 | 3011864 | Contact, tab small | |
| 4 | *CONTACT, Tab | Large | ||
| 5 | 3011450 | Clip vapor separator vapor solenoid connectors | |
| 6 | 0357635 | Screw | |
| 7 | 0335328 | Screw, connector | |
| 8 | 0329518 | Grommet, esm mounting | |
| 9 | 0328700 | Washer | |
| 10 | 0353590 | Screw lower | |
| 11 | 0353761 | Rondelle, levier de sens de marche lower | |
| 12 | 0333040 | Isolator lower | |
| 13 | 0338558 | Entretoise, à collerette lower | |
| 14 | 5009747 | Fuel rail assembly, fuel supply green connector | |
| 15 | 5009748 | Fuel rail assembly, fuel return red connector | |
| 16 | 0360907 | Hose, fuel inlet filter to vsa fuel inlet | |
| 17 | 0360941 | Fuel filter, 65 micron | |
| 18 | 0348839 | Clamp, 17 mm fuel filter to fuel inlet hose | |
| 19 | 0348839 | Clamp, 17 mm fuel inlet hose to vsa | |
| 20 | 0360893 | Hose, vapor separator to water sep fuel filter low psi out to water sep fuel filter | |
| 21 | 0348839 | Clamp, 17 mm fuel filter to vapor separator hose | |
| 22 | 5011097 | Fuel filter bracket assembly | This part replaces 5009902. |
| 23 | *BRACKET ASSEMBLY | Not sold separately | ||
| 24 | 3011148 | Contact, tab | |
| 25 | 3011149 | Seal, wire | |
| 26 | 3011154 | Connector, 2 position plug | |
| 27 | 0333040 | Isolator | |
| 28 | 0338558 | Entretoise, à collerette | |
| 29 | 5011090 | Filter, fuel | This part replaces 5009676. |
| 30 | 0353761 | Rondelle, levier de sens de marche | |
| 31 | 0353590 | Screw | |
| 32 | 3011292 | Clip, mounting fuel filter connector to housing | |
| 33 | 0360894 | Hose water sep fuel filter to vapor sep | |
| 34 | 0348839 | Clamp, 17 mm fuel filter to vapor separator hose | |
| 35 | 0360892 | Hose, vapor separator to solenoid | |
| 36 | 0346786 | Clamp | |
| 37 | 5009936 | Fuel vent solenoid kit | |
| 38 | *FUEL VENT SOLENOID | ||
| 39 | 0346786 | Clamp vent solenoid inlet outlet | |
| 40 | 3011292 | Clip, mounting vapor solenoid connector | |
| 41 | 0358942 | Hose, vapor vent solenoid to plenum | |
| 42 | 0346786 | Clamp vent hose to plenum | |
| NS | 0346786 | Clamp cooling water |
