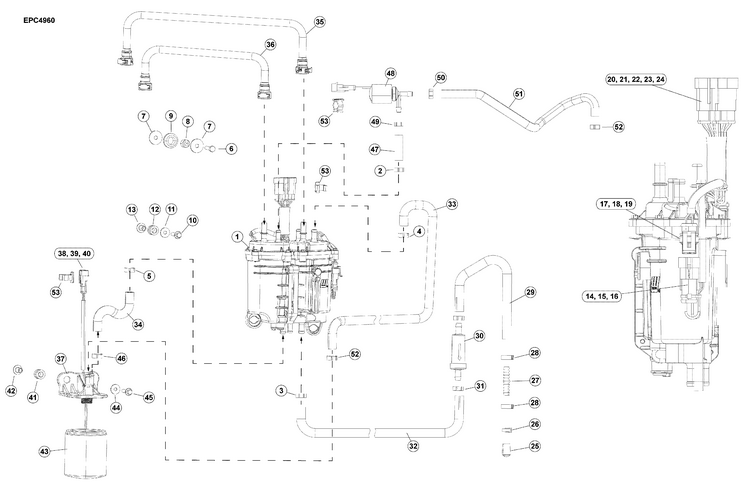

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 32
Product Description: Hose, Fuel Filter To Vapor Sep
Category: EVINRUDE / AA Models / 140 - (G2, Inline 3-Cyl, 1.865 L) / K140GLFAAB - (G2, Inline 3-Cyl., 1.865 L) / 03-3_FUEL FILTERS, HOSES, & VAPOR SEPARATOR
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
1 | 5010691 | Fuel reservoir pump assembly | |
2 | 0346786 | Clamp vsa to solenoid cooling hoses | |
3 | 0348839 | Clamp, 17 mm fuel inlet lo psi | |
4 | 0348839 | Clamp, 17 mm fuel outlet to fuel filter | |
5 | 0348839 | Clamp, 17 mm fuel filter to fuel inlet hi psi | |
6 | 0357635 | Screw upper | |
7 | 0328700 | Washer upper | |
8 | 0335328 | Screw, connector upper | |
9 | 0329518 | Grommet, esm mounting upper | |
10 | 0353590 | Screw lower | |
11 | 0353761 | Rondelle, levier de sens de marche lower | |
12 | 0333040 | Isolator lower | |
13 | 0338558 | Entretoise, à collerette lower | |
14 | CONNECTOR, 2-Position cap | ||
15 | 3011149 | Seal, wire | |
16 | CONTACT, | ||
17 | 3011153 | Connecteur, fiche 2 positions | |
18 | 3011149 | Seal, wire | |
19 | CONTACT, | ||
20 | 3011158 | Connector, 6 position | |
21 | 3011149 | Seal, wire small | |
22 | 3011225 | Seal, wire large | |
23 | 3011864 | Contact, tab small | |
24 | CONTACT, Tab | Large | ||
25 | 0331649 | Cap, connector fuel used for storage or shipping only | |
26 | 0320107 | Tie strap used for storage or shipping only | |
27 | 0348939 | Connector, fuel inlet | |
28 | 0346150 | Clamp, 18.5mm | |
29 | 0361756 | Hose, fuel connector to fuel filter | |
30 | 0360941 | Fuel filter, 65 micron | |
31 | 0348839 | Clamp, 17 mm | |
32 | 0361755 | Hose, fuel filter to vapor sep | |
33 | 0362026 | Hose, fuel vapor sep outlet to water sep fuel filter | |
34 | 0360020 | Hose, fuel water sep fuel filter to vapor sep | |
35 | 5010409 | Fuel rail assembly, fuel supply | |
36 | 5010410 | Fuel rail assembly, fuel return | |
37 | 5011097 | Fuel filter bracket assembly | |
38 | 3011148 | Contact, tab | |
39 | 3011149 | Seal, wire | |
40 | 3011154 | Connector, 2 position plug | |
41 | 0333040 | Isolator | |
42 | 0338558 | Entretoise, à collerette | |
43 | 5011090 | Filter, fuel | |
44 | 0353761 | Rondelle, levier de sens de marche | |
45 | 0353590 | Screw fuel filter bracket | |
46 | 0348839 | Clamp, 17 mm fuel filter bracket inlet outlet hoses | |
47 | 0360021 | Hose vsa to solenoid | |
48 | 5009936 | Fuel vent solenoid kit | |
49 | 0346785 | Clamp, 14.5 mm vent solenoid outlet | |
50 | 0346786 | Clamp vent solenoid inlet | |
51 | 0361986 | Hose vent solenoid to plenum | |
52 | 0346786 | Clamp vent hose to plenum | |
53 | 3011450 | Clip |
