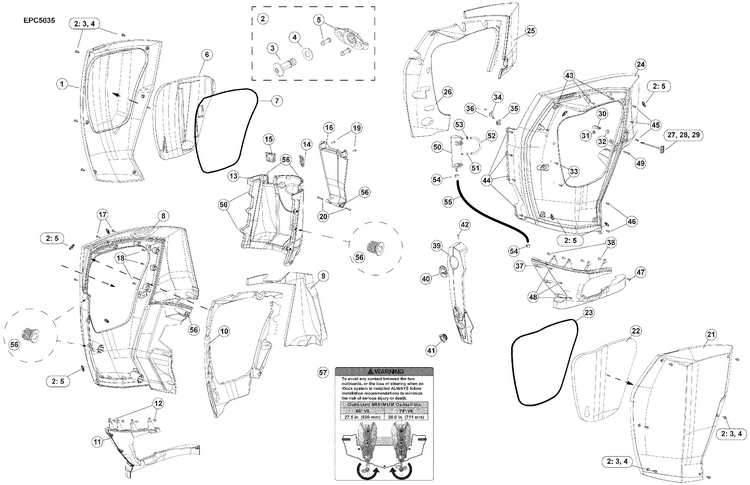

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 11
Product Description: Cover, Exhaust Housing Port | White
Category: EVINRUDE / AK Models / 200 - (G2, 74° V6, 3.4 L) / H200GXCAAKA - (G2 74° V6, 3.4 L) / 01-2.2_ENGINE COVERS (PORT & STARBOARD)
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
1 | 0286127 | Cover assembly, port standard deep black | |
1 | 0286128 | Cover assembly, port standard bright white | |
1 | 0286129 | Cover assembly, port radical red | |
1 | 0286130 | Cover assembly, port orbital blue | |
1 | 0286131 | Cover assembly, port hyper silver | |
1 | 0286147 | Cover assembly, port ice blue | |
1 | 0286083 | Cover assembly, port unpainted, does not include decals, or hardware | |
1 | 0286151 | Cover assembly, port classic white | |
2 | 5009991 | Screw, retainer and clip kit kit services 6 quarter turn screws | |
3 | **SCREW, Quarter-turn | Not available individually | ||
4 | **RETAINER, Screw | Not available individually | ||
5 | **CLIP, Quarter-turn screw | Not available individually | ||
NS | 0358016 | Rivet | |
6 | 0357090 | Blanket, sound | |
7 | 0359757 | Seal | |
8 | 5011001 | Frame assembly, port slate gray | |
8 | 5010995 | Frame assembly, port white | |
9 | 0357325 | Blanket, sound | |
10 | 0357093 | Blanket, sound | |
11 | 0362168 | Cover, exhaust housing port slate gray | |
11 | 0362130 | Cover, exhaust housing port white | |
12 | 0323229 | Screw, tilt handle, front inner | |
13 | 5009172 | Frame, front | |
NS | 0357095 | Blanket, sound | |
14 | 0356489 | Grommet, starboard | |
15 | 0356490 | Grommet, port | |
16 | 0357604 | Cover assembly, front standard deep black | |
16 | 0357605 | Cover assembly, front bright white | |
16 | 0357606 | Cover assembly, front radical red | |
16 | 0357607 | Cover assembly, front orbital blue | |
16 | 0357608 | Cover assembly, front hyper silver | |
16 | 0359961 | Cover assembly, front ice blue | |
16 | 0361083 | Cover assembly, front unpainted, does not include decals, or hardware | |
16 | 0362125 | Cover assembly, front classic white | |
17 | 0362483 | Screw port frame to center frame upper | |
18 | 0362483 | Screw port frame to motor frame upper, front | |
19 | 0362483 | Screw front cover to motor frame front | |
20 | 0358285 | Screw, side frame to lower front cover side frame to lower front cover | This part replaces 0357658. |
NS | 0358257 | Insert, m5 x 0.8 oversized o.d. for replacement | |
21 | 0286134 | Cover assembly, starboard deep black | |
21 | 0286135 | Cover assembly, starboard bright white | |
21 | 0286136 | Cover assembly, starboard radical red | |
21 | 0286137 | Cover assembly, starboard orbital blue | |
21 | 0286138 | Cover assembly, starboard hyper silver | |
21 | 0286139 | Cover assembly, starboard ice blue | |
21 | 0286084 | Cover assembly, starboard unpainted, does not include decals, or hardware | |
21 | 0286152 | Cover assembly, starboard classic white | |
22 | 0357091 | Blanket, sound | |
23 | 0359757 | Seal | |
24 | 5011002 | Frame assembly, starboard slate gray | |
24 | 5010996 | Frame assembly, starboard white | |
25 | 0357324 | Blanket, sound | |
26 | 0357094 | Blanket, sound | |
27 | 0586789 | Switch assembly, trim tilt | |
28 | 3011148 | Contact, tab | |
29 | 3011225 | Seal, wire | |
30 | 3011156 | Connector, 3 position | |
31 | 3011912 | Mount, connector | |
32 | 0334656 | Nut | |
33 | 0358892 | Screw oil reservoir mounting | |
34 | 3011913 | Cap, 3 pin connector | |
35 | 3011914 | Cap, 6 pin connector | |
36 | 0343245 | Screw | |
37 | 0362169 | Cover, exhaust housing starboard slate gray | |
37 | 0362129 | Cover, exhaust housing starboard white | |
38 | 0323229 | Screw, tilt handle, front exhaust housing cover to starboard frame | |
39 | 5010998 | Cover assembly, rear frame slate gray | This part replaces 5010041. |
39 | 5010997 | Cover assembly, rear frame white | |
40 | 0217004 | Lens, logo 68 mm | |
41 | 0356286 | Retainer | |
42 | 0362483 | Screw rear cover to frames | |
43 | 0362483 | Screw starboard frame to center frame upper | |
44 | 0362483 | Screw starboard frame to port frame rear | |
45 | 0362483 | Screw starboard frame to port frame lower, front | |
46 | 0362483 | Screw starboard frame to motor frame upper, front | |
47 | 0362483 | Screw starboard to port exhaust cover front | |
48 | 0362483 | Screw starboard to port exhaust cover rear | |
49 | 0359149 | Screw, m5 x 550 starboard to port frame to lower front | |
NS | 0358257 | Insert, m5 x 0.8 oversized o.d. for replacement | |
50 | 5009873 | Oil reservoir, gearcase | |
51 | 0348838 | Clamp, 10.5 mm | |
52 | 0357427 | Hose 0.25 in. 6.35 mm diameter bulk roll 25 ft. 7.62 m | |
53 | 0339276 | Clamp | |
54 | 0346786 | Clamp | |
55 | 0357226 | Hose, gearcase to oil reservoir | |
56 | 0358257 | Insert, m5 x 0.8 oversized o.d. for replacement | |
57 | 0361546 | Decal, idock warning front frame |
